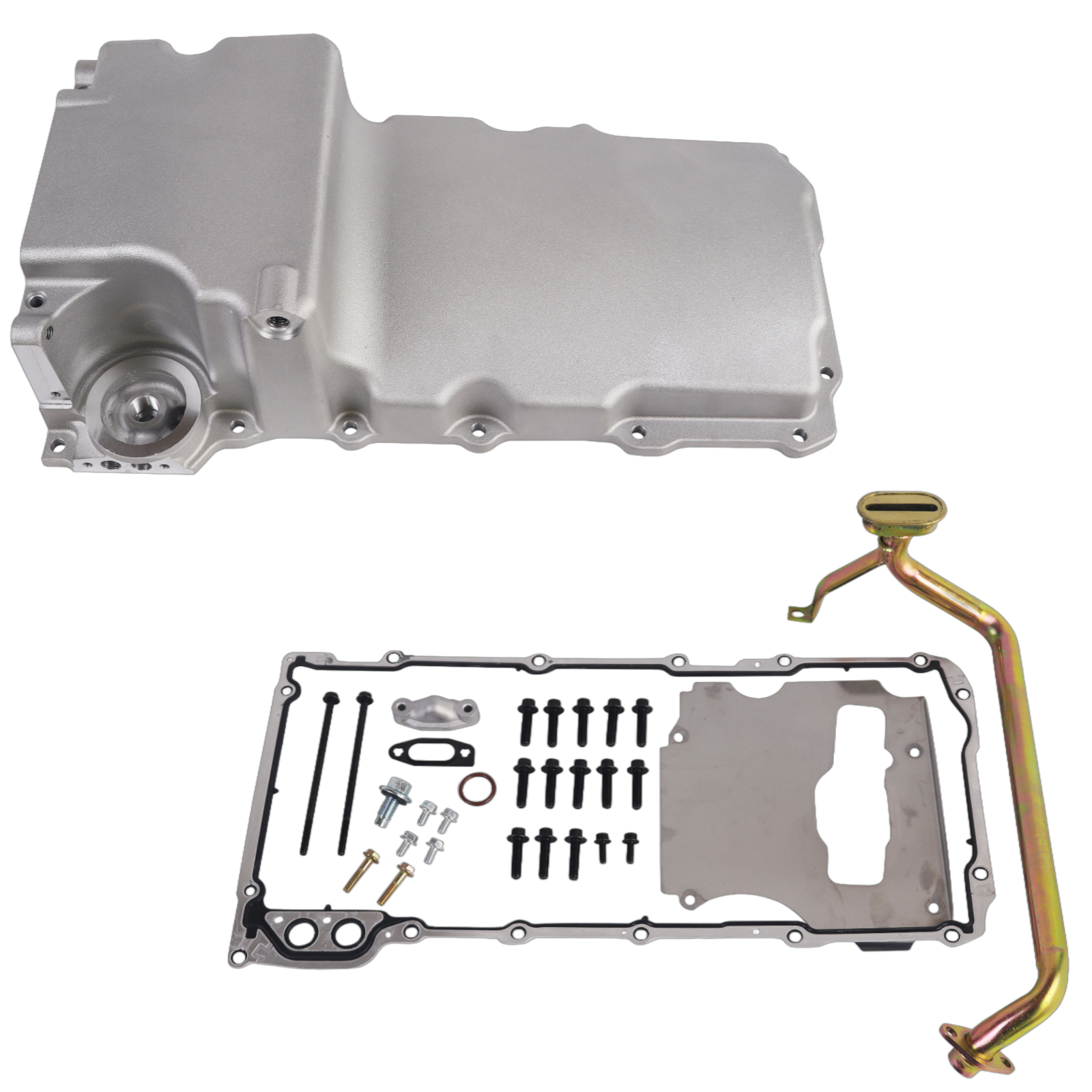

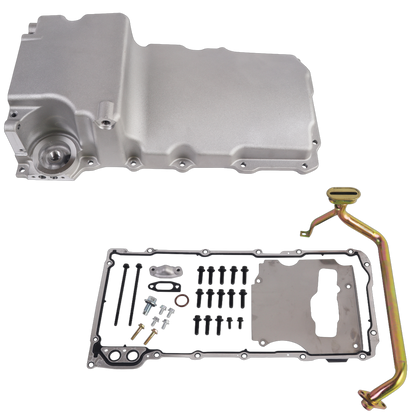

• Haytalras LS swap retrofit oil pan kit main image

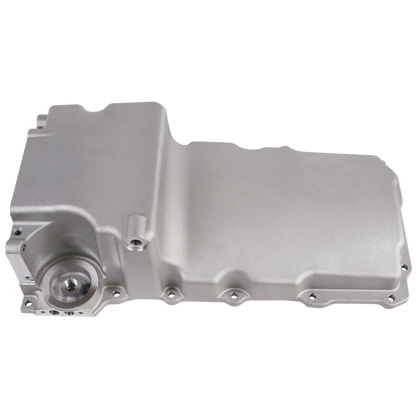

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 2

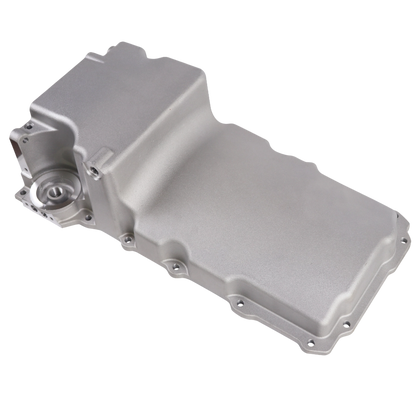

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 3

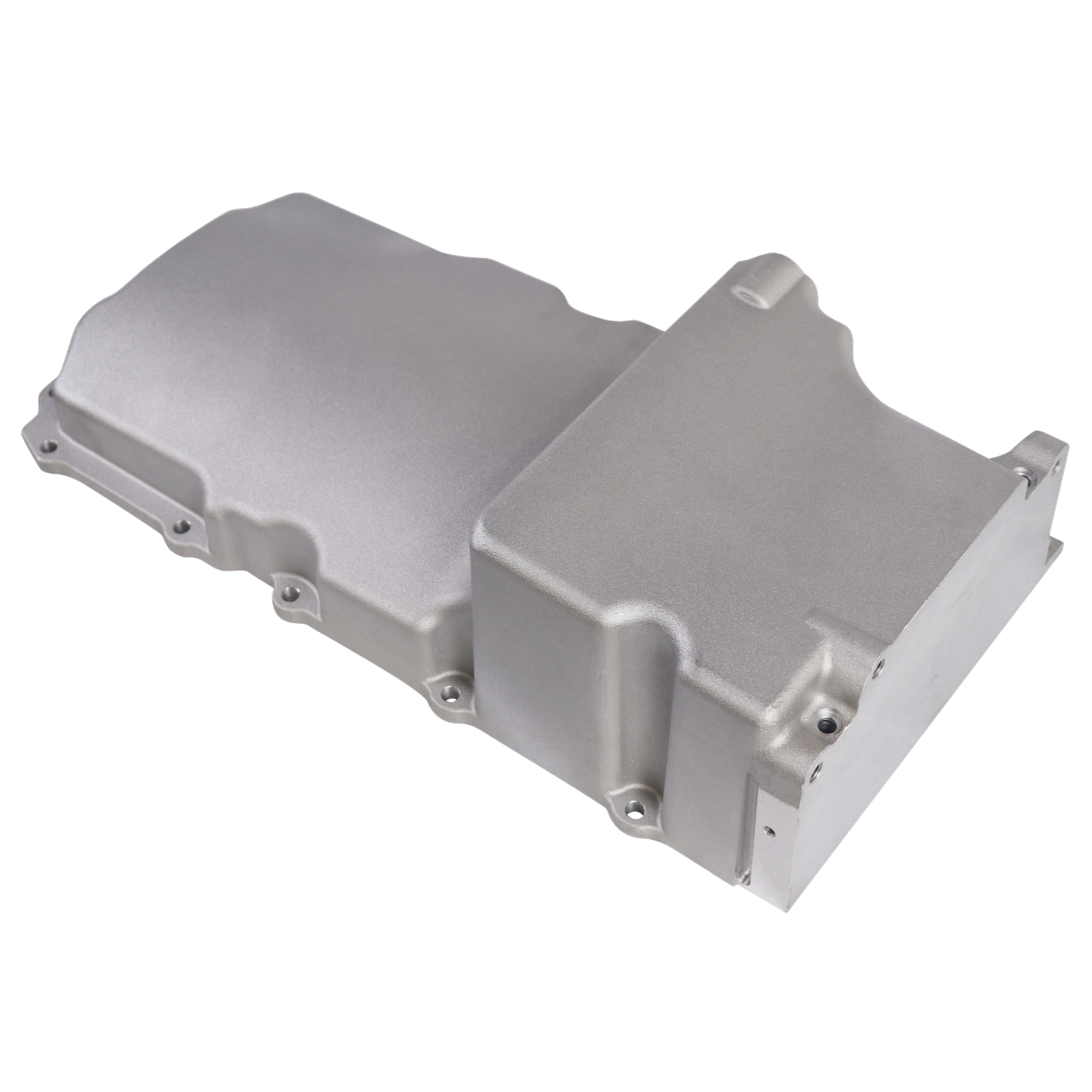

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 4

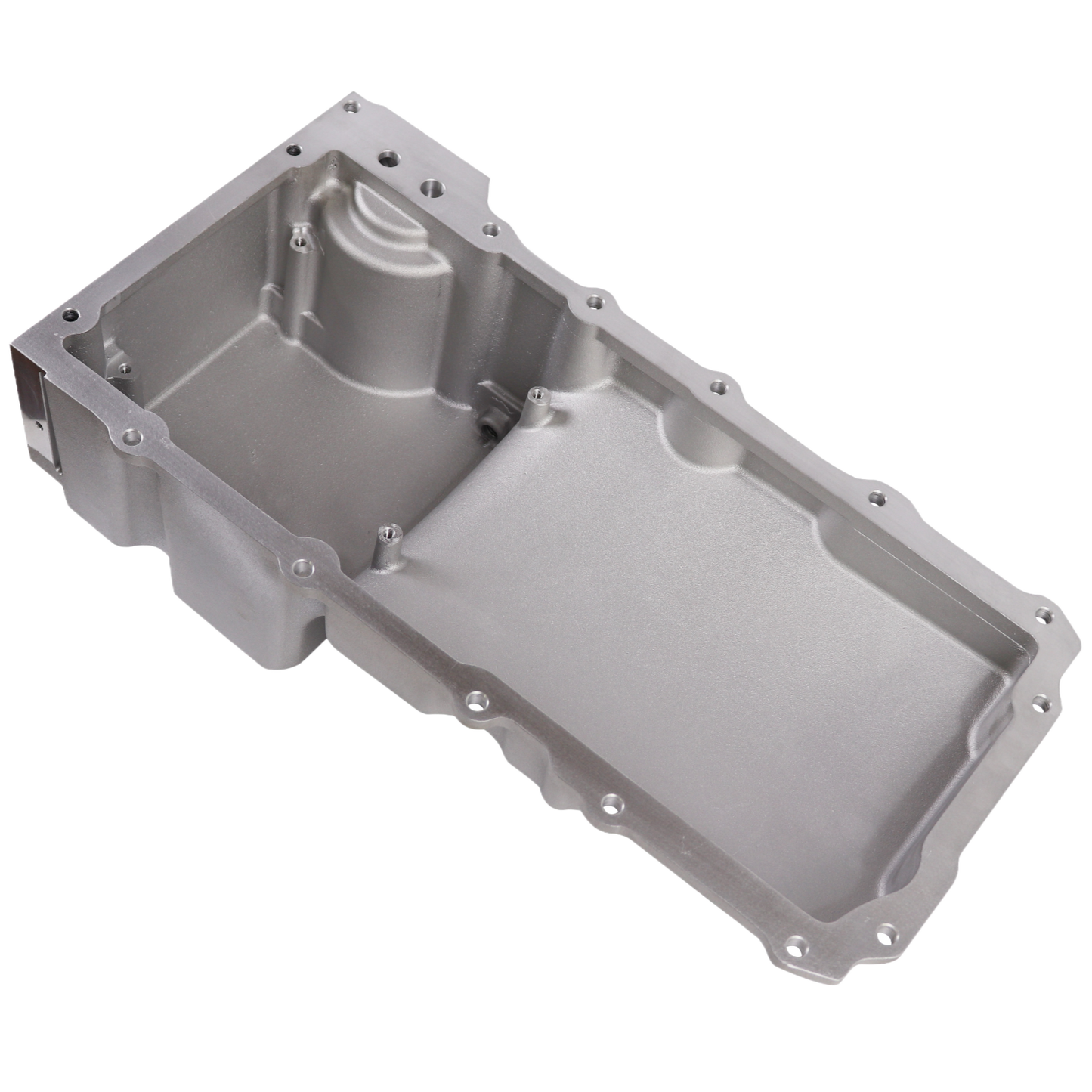

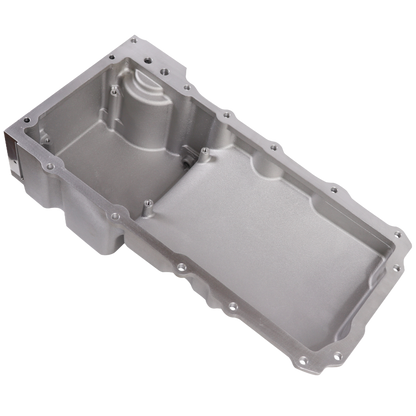

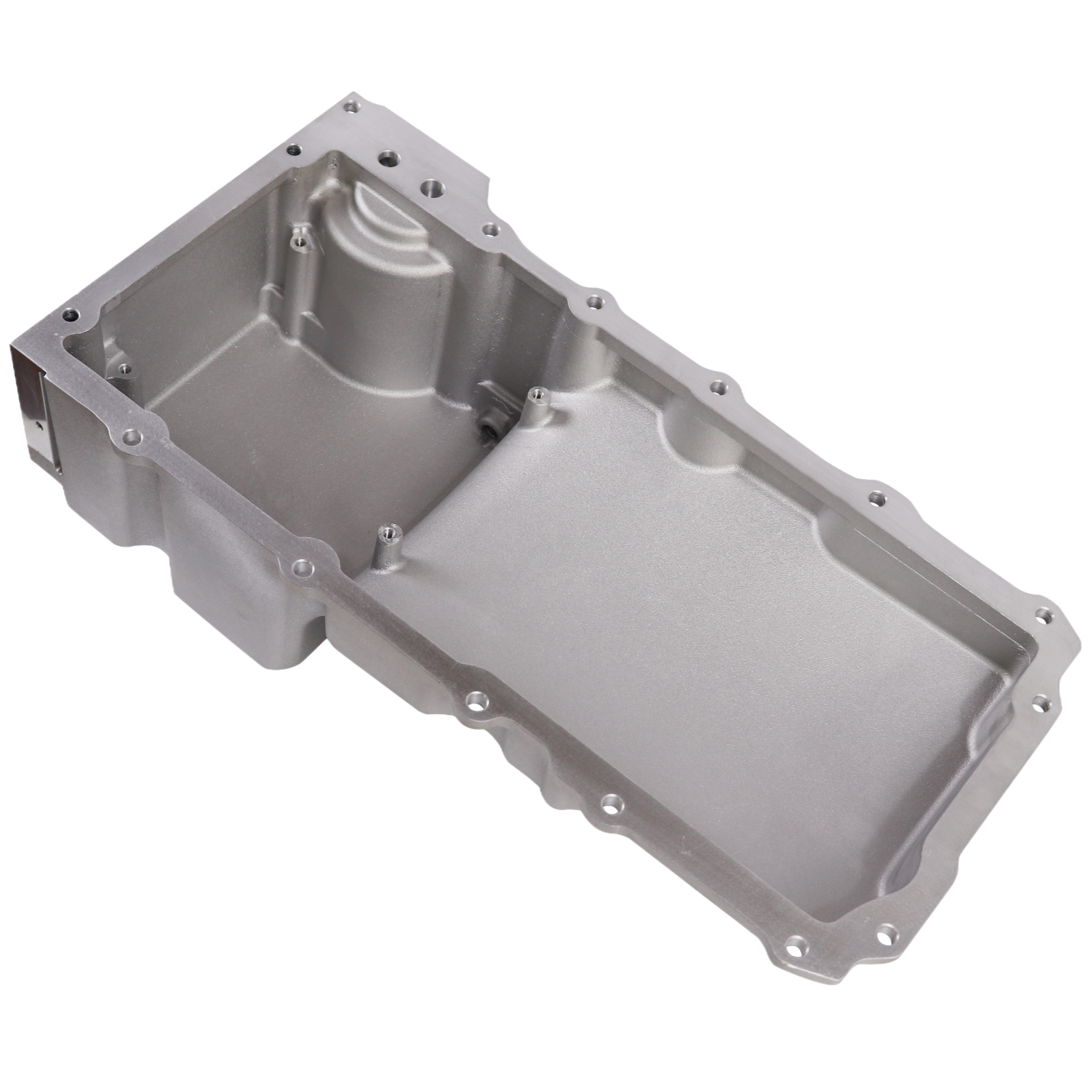

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 5
  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 6

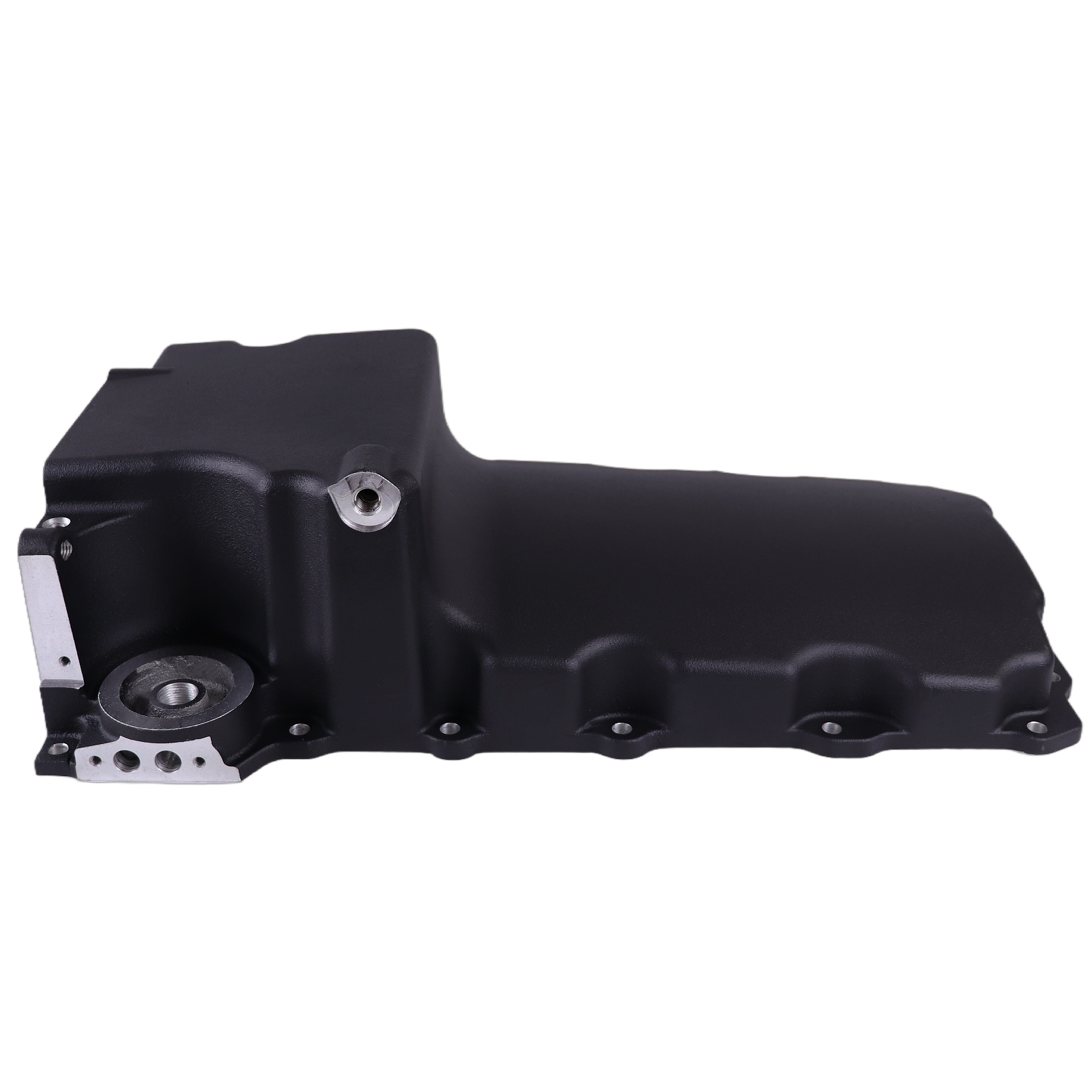

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 7

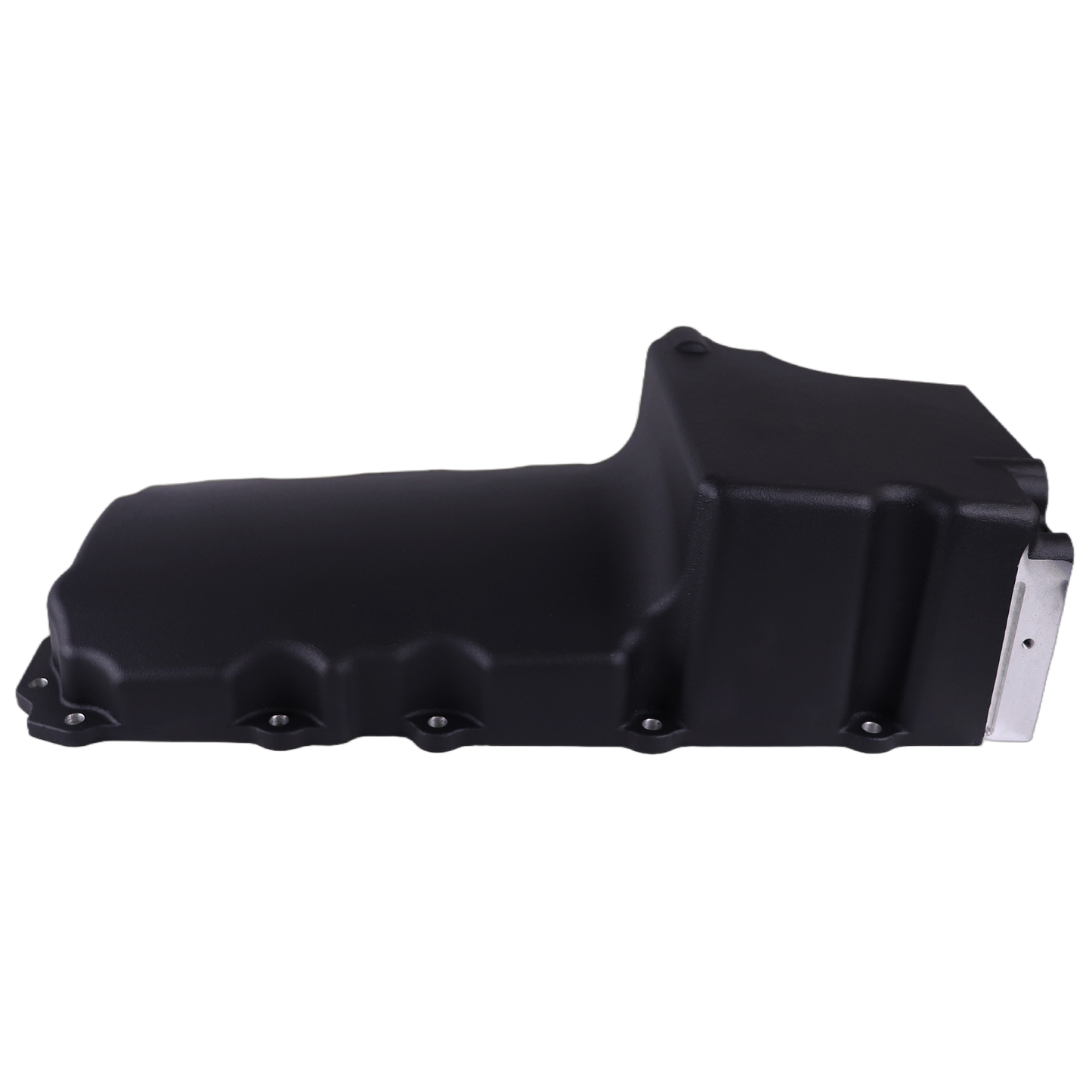

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 8

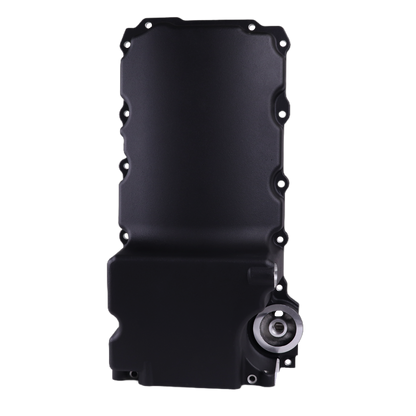

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 9
  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 10
  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 11
  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 12

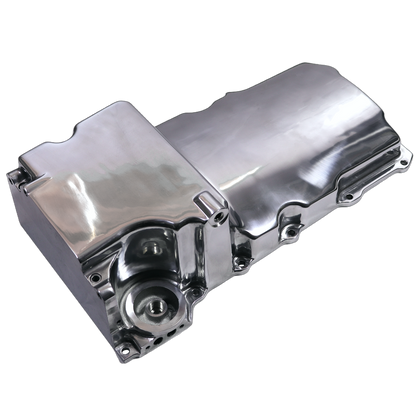

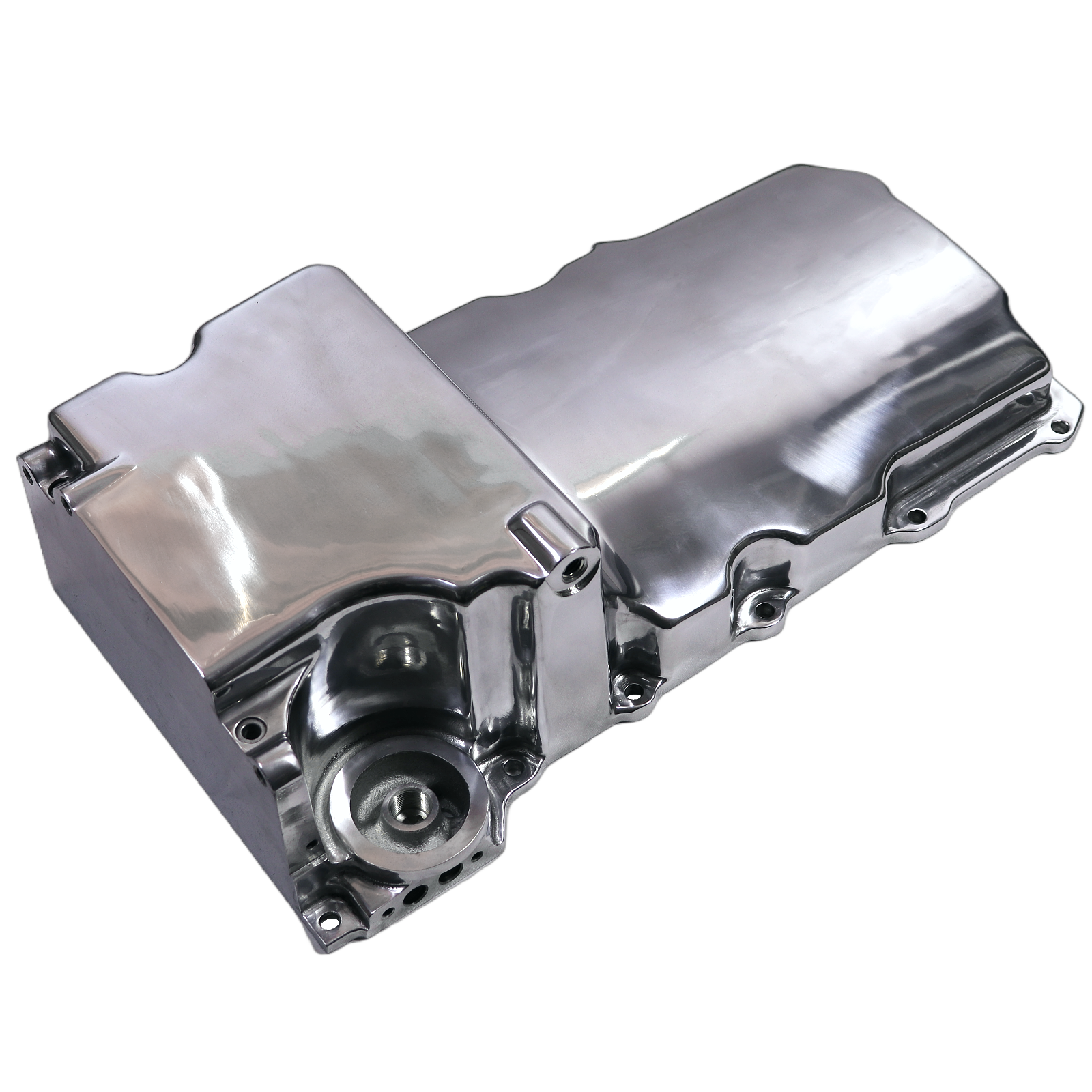

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 13
  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 14

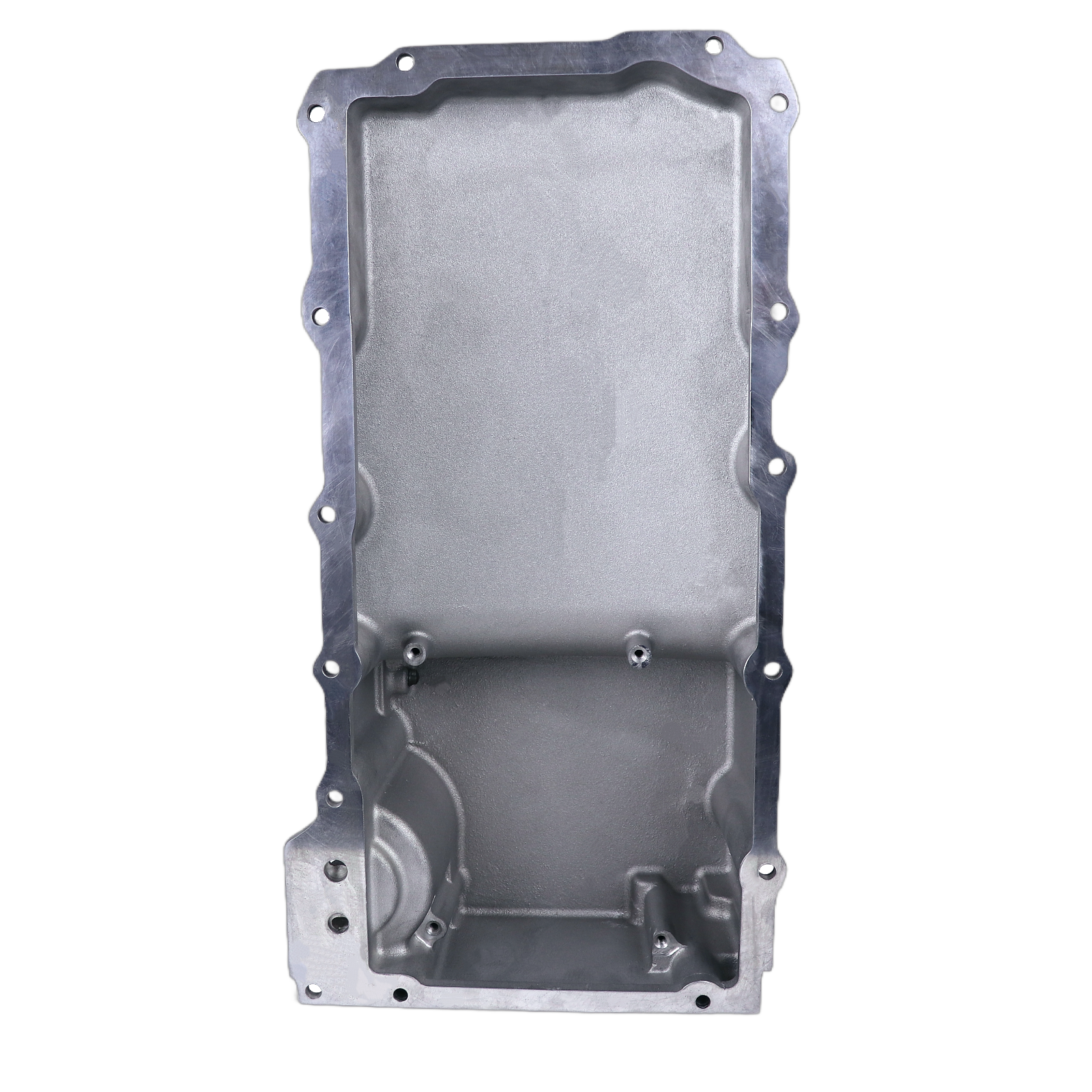

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 15

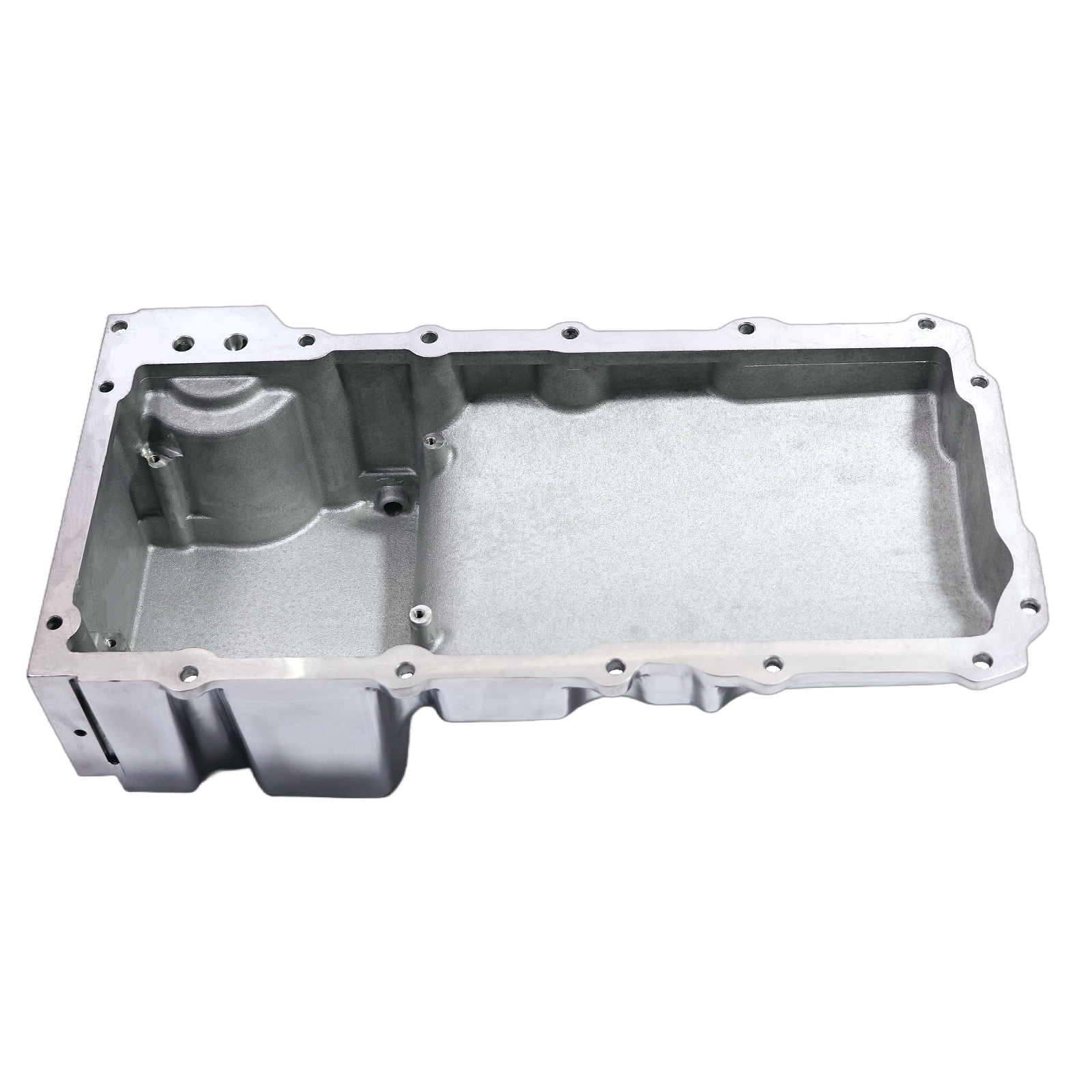

  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 16
  • Haytalras LS Swap Retrofit Oil Pan Kit 302-1 for GM LS1 LS2 LS3 LS6 LSX - product image 17
1 17

Haytalras Performance Parts

LS Swap Retrofit Low Profile Oil Pan Kit for GM LS1 LS2 LS3 Engine 55-87 302-1

LS Swap Retrofit Low Profile Oil Pan Kit for GM LS1 LS2 LS3 Engine 55-87 302-1

$189.00 USD
$189.00 USD
Sale Sold out

302-1

Free US shipping, excluding AK & HIFitment help before you order30-day return window
Fitment-first ordering

Confirm engine platform, port style, clearance, and install hardware before purchase. Email haytalras@gmail.com if your build is modified.

Package

Product Details

LS Swap Retrofit Low Profile Oil Pan Kit for GM LS1 LS2 LS3 Engine 55-87 302-1

Fitment note: Please check compatibility carefully before placing an order.

Description:

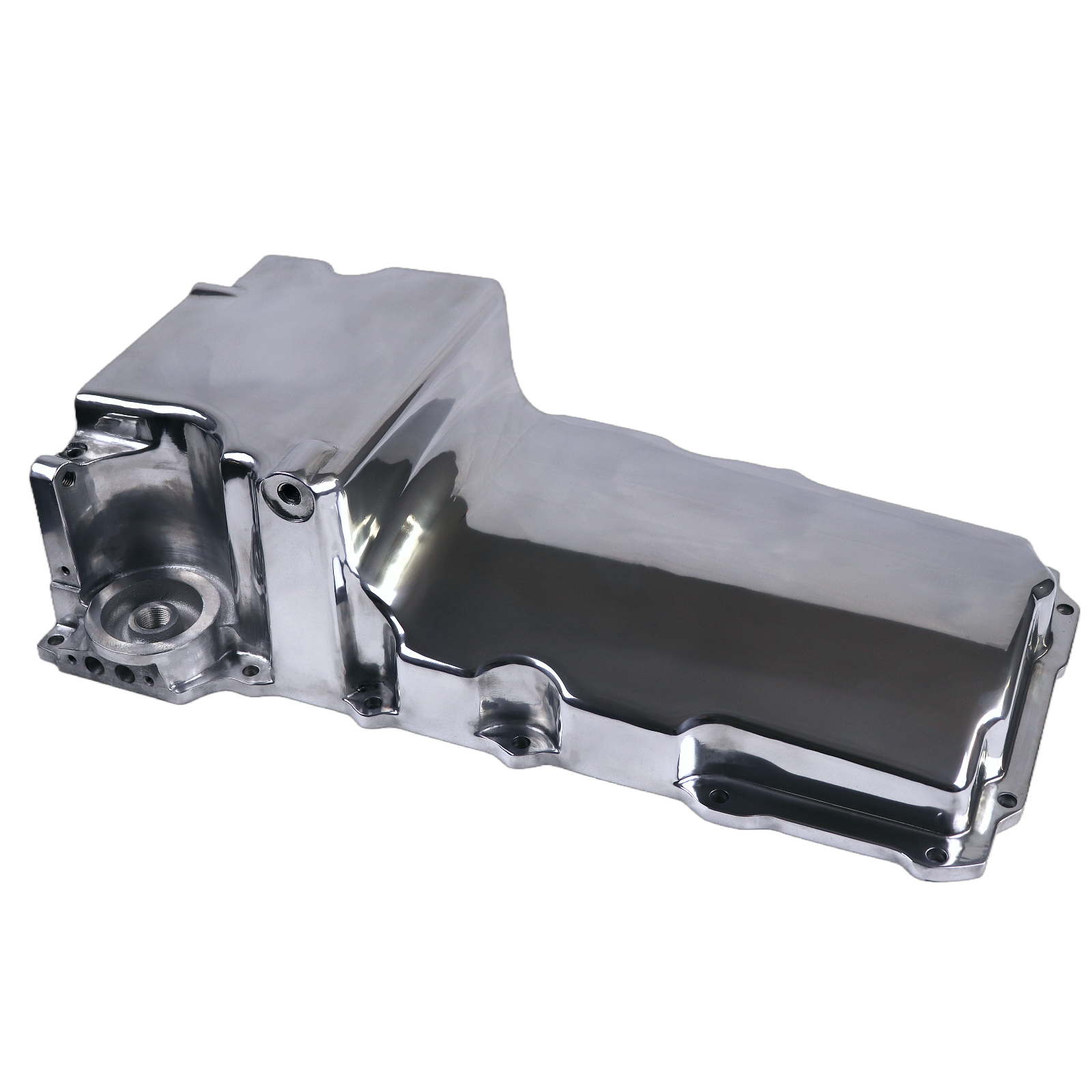

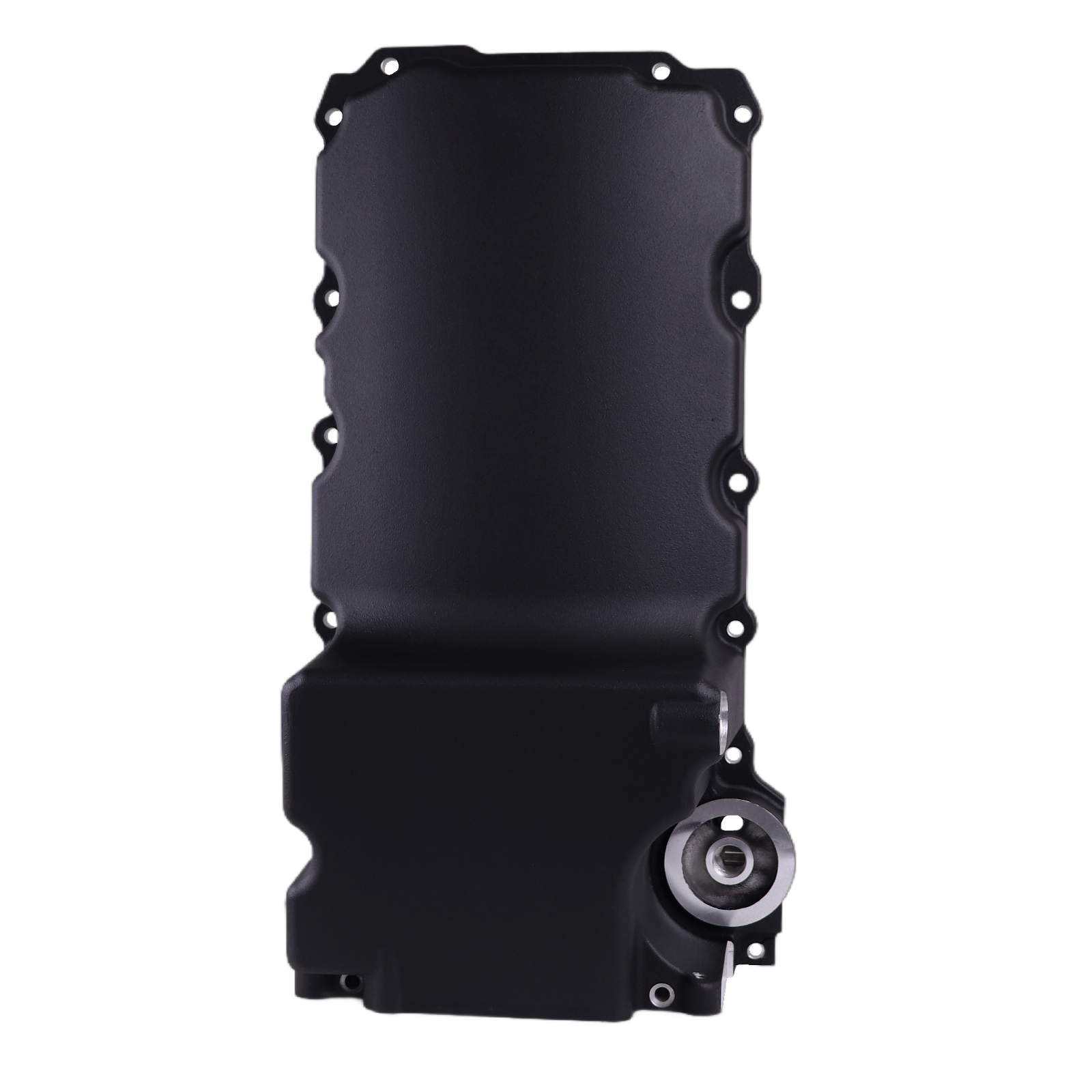

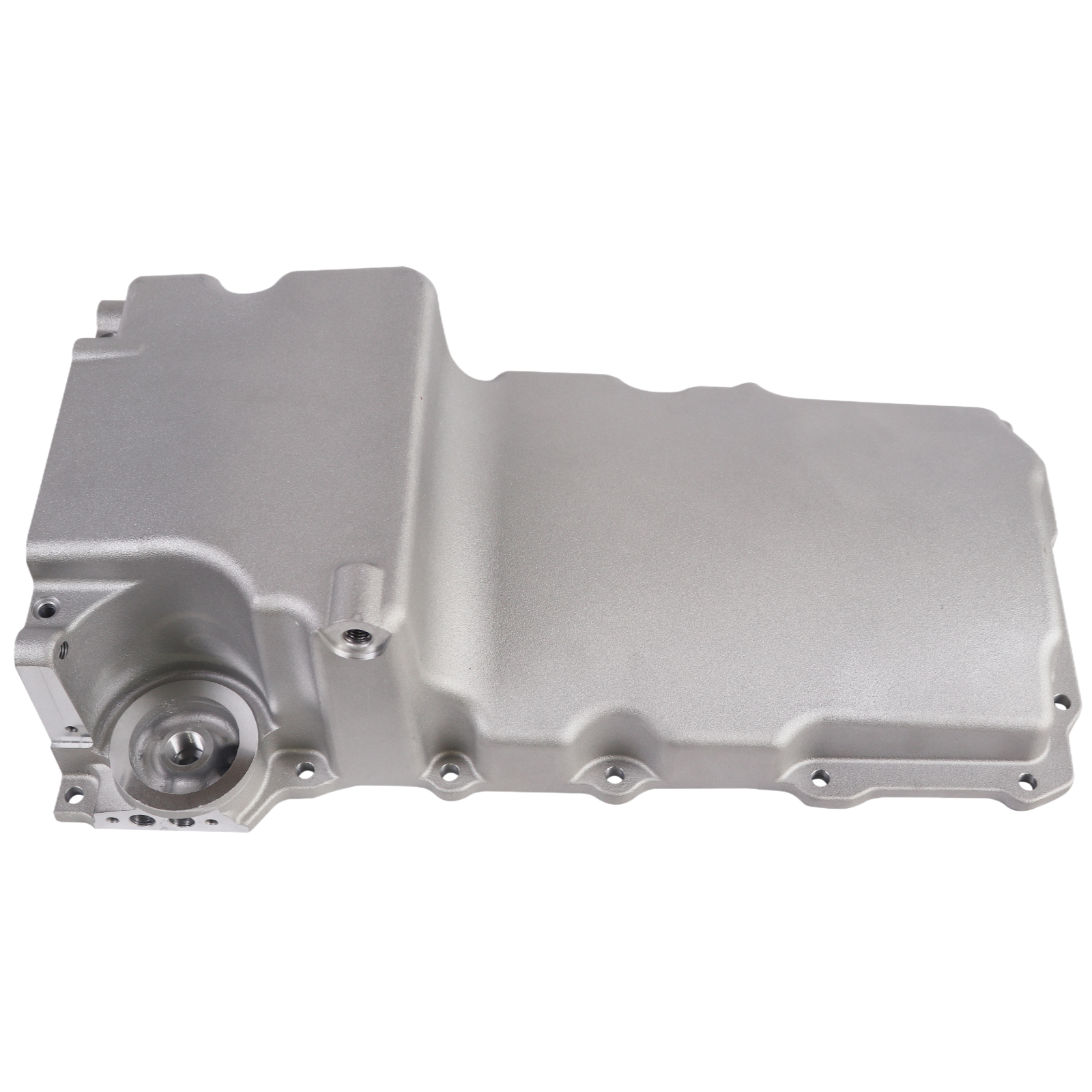

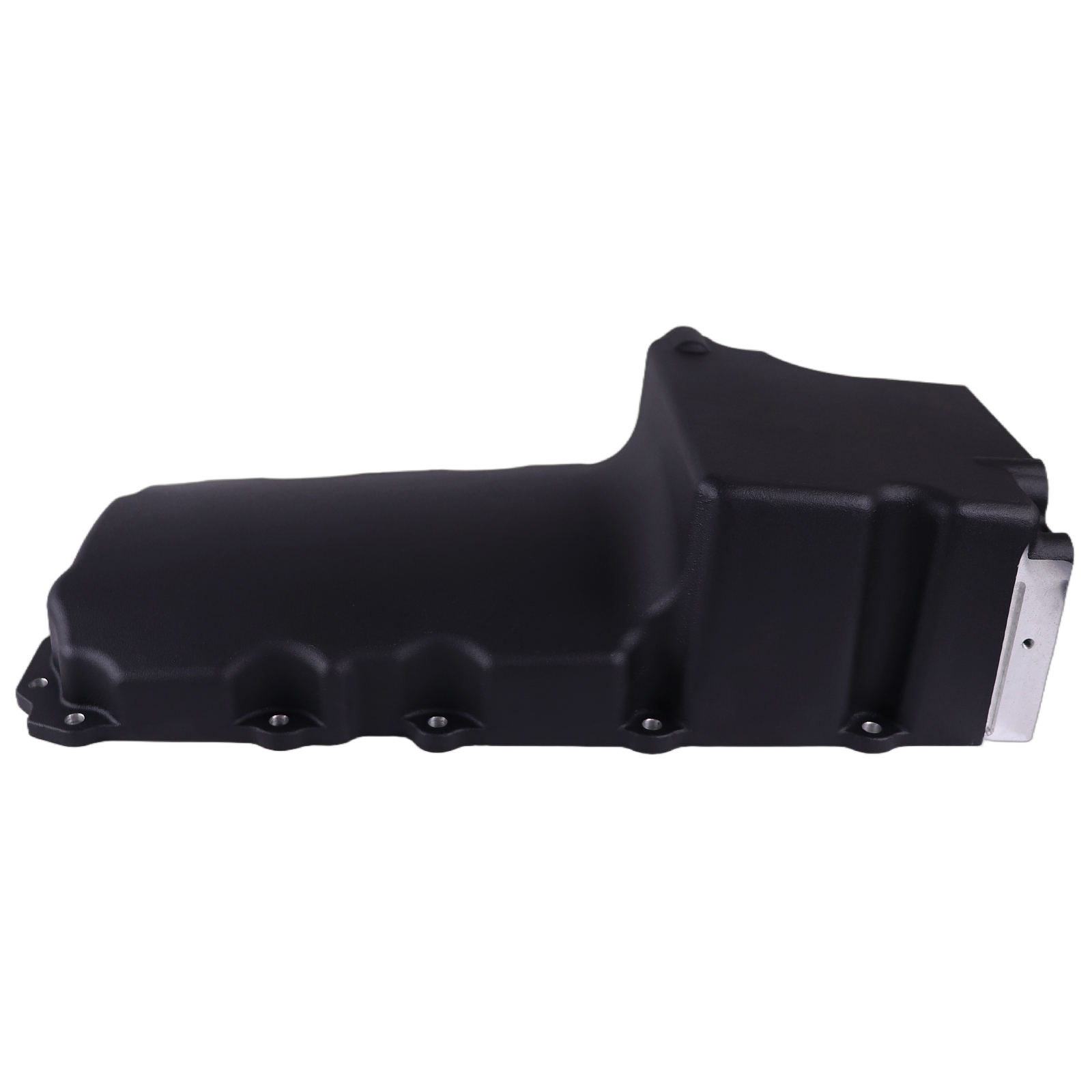

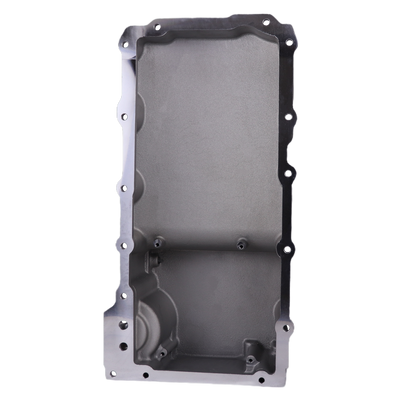

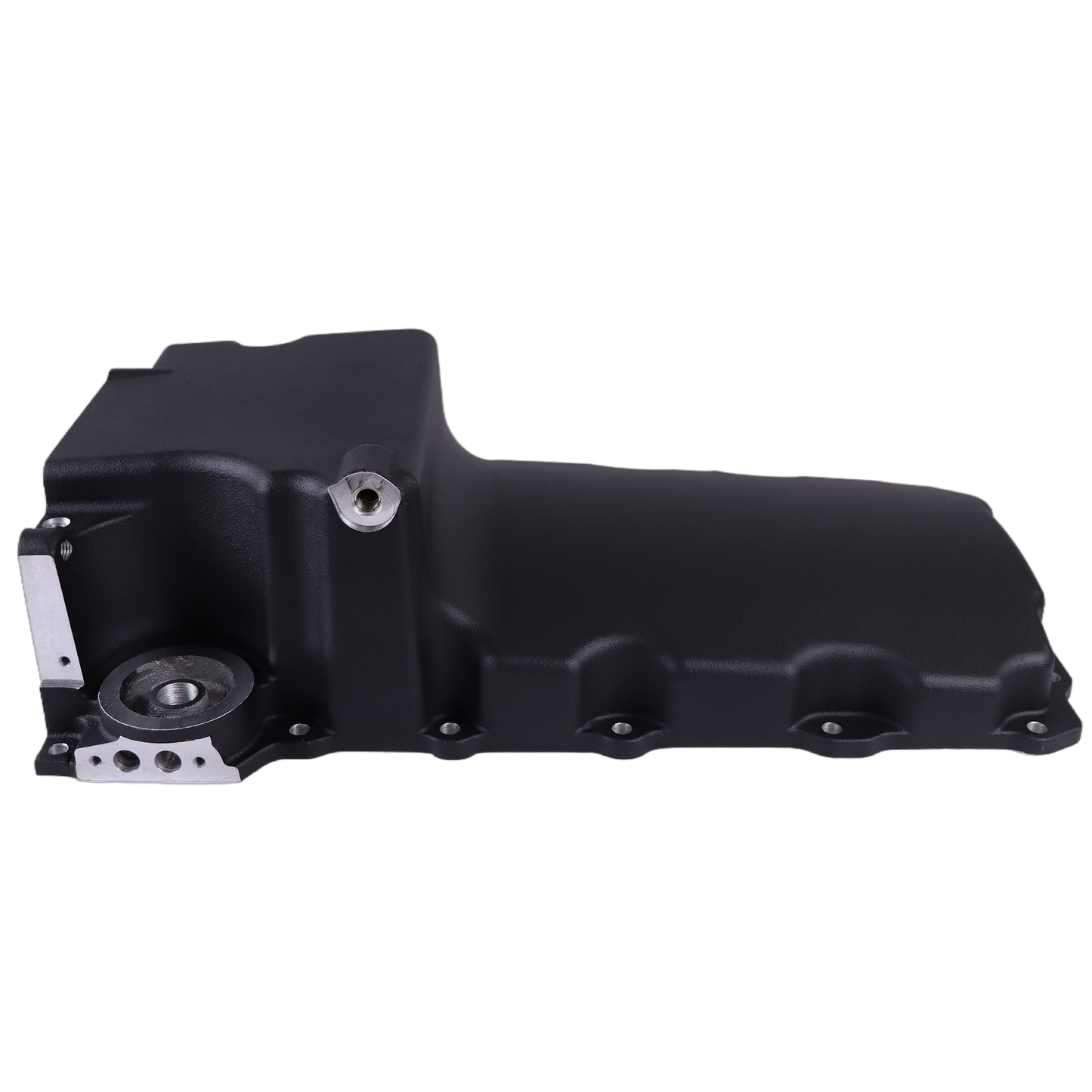

- Haytalras retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.

- Notes:Engine will take a total of 6 quarts of oil including the stock filter. Engine location may need to be adjusted (up/down or fore/aft) for proper clearance.

- Notes:Please Check the Compatibility Carefully before Placing an Order.

Specifications

Specification:

Part Number: 302-1,81074

Part Type: Oil Pans

Sump Style: Wet

Maximum Stroke with OE Rod: 4.250 in.

Oil Pan Depth (in): 5.890 in.

Sump Location: Rear

Oil Pan Capacity: 5.50 quarts

Gaskets Included: Yes

Hardware Included: Yes

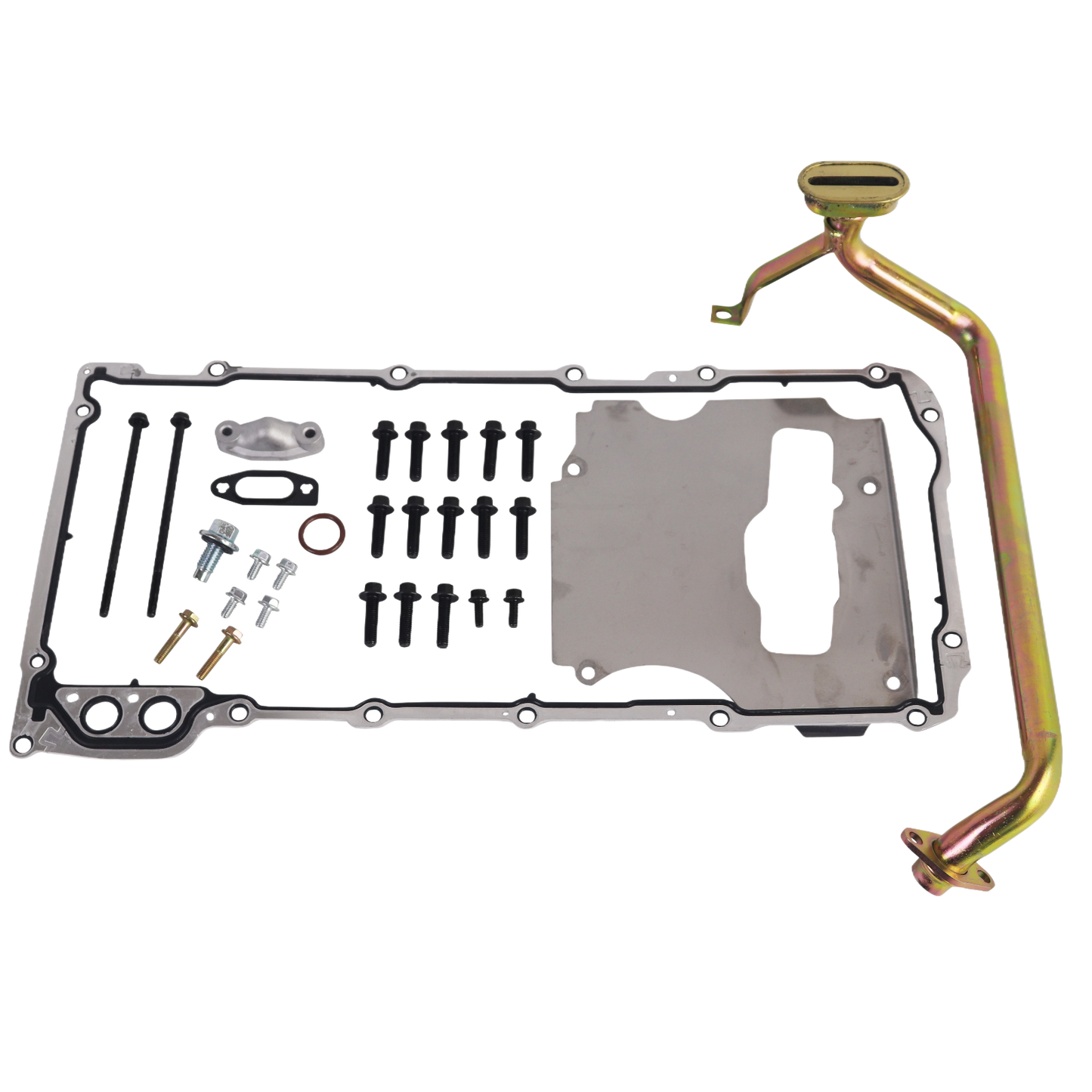

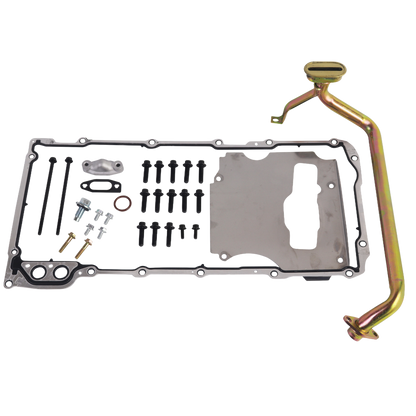

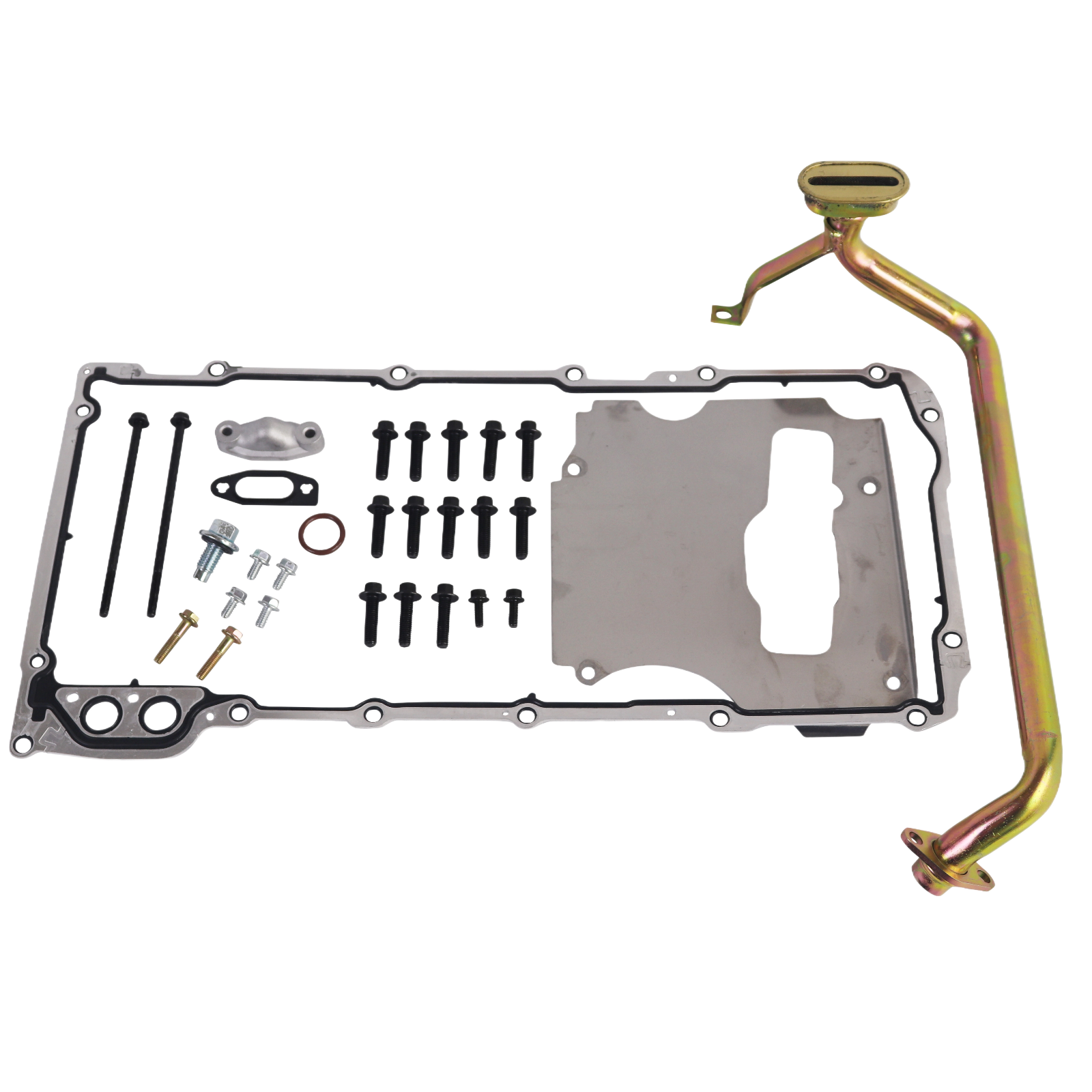

Package included: 1x Oil Pan

1x Oil Pan Gasket

1x Sump Baffle

1x Pick-Up Tube

1x Sump Plug

1x Oil Filter Stud

1x Oil Passage Cover

1x O-Ring

1x Screw Mounting Kit

Vehicle Information:

- Compatible with 1955-1987 GM/ Muscle Car/ Classic Car/ Trucks

- Compatible with LS Gen III and GEN IV V8 LS1 LS2 LS3 LS6 LSX 4.8L, 5.3L, 5.7L, 6.0L, 6.2L Engine

Not sure this fits?Send your engine platform, vehicle year, and current setup to haytalras@gmail.com before ordering. We will help you confirm fitment before the part ships.

Fitment & Compatibility

Use the product title, SKU, engine platform, and application notes as the primary fitment reference. If your vehicle has non-stock heads, intake setup, accessory drive, hood clearance, oil pan clearance, or swap mounts, contact Haytalras before ordering.

Shipping

Free standard shipping is available for orders shipping within the United States, excluding Alaska and Hawaii. Processing and delivery times may vary by SKU, destination, carrier, and order review status. Tracking is provided after fulfillment.

Returns & Warranty

Uninstalled, unused items may be eligible for return within 30 days after delivery. Keep the original packaging and contact Haytalras before sending anything back. Installed, modified, damaged, or fuel-contaminated parts may not be returnable.

Before Installation

Test-fit before final installation. Professional installation is recommended for performance parts. Check gasket surfaces, fastener torque, fuel and vacuum connections, sensor fitment, and hood or chassis clearance before starting the vehicle.
