For most mild street small-block Chevys, a low-rise dual-plane intake is the safer starting point because it preserves hood-clearance margin and supports a broad, low-to-midrange operating range. A high-rise dual-plane becomes more attractive when the engine combination is intended to pull harder above the everyday cruising range and the vehicle has room for a taller induction stack.
The deciding factor is not manifold height by itself. Match the intake’s advertised RPM range to the camshaft, cylinder heads, displacement, gearing, and intended use, then verify the complete height from the intake rail to the top of the air cleaner. The sections below turn that choice into a repeatable fitment check instead of a guess.

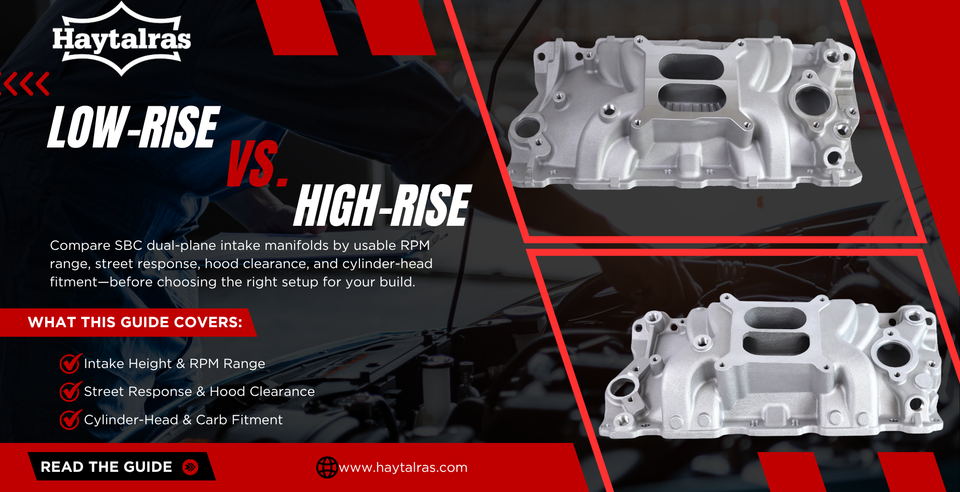

What Low-Rise and High-Rise Actually Mean
Both choices discussed here are dual-plane manifolds. Their split plenums separate the engine into two four-cylinder groups, a layout commonly used to support a broad street-friendly operating range. “Low-rise” and “high-rise” describe relative packaging and runner/plenum geometry; there is no single industry height at which one category automatically becomes the other.
A low-rise design usually stays closer to stock intake height. That makes it easier to retain a practical air cleaner and close the hood, and it generally favors response from idle into the midrange. A high-rise dual-plane raises the carburetor pad and changes the internal path to provide more upper-RPM breathing potential while keeping the broad character of a dual-plane layout.
That does not mean “taller always makes more power.” The useful result depends on the whole engine combination, and a mismatch can move the operating range away from where a street car actually spends its time.
How Intake Height Changes the Usable RPM Range
Start with the manufacturer’s advertised RPM range, then compare it with the rest of the build. Holley’s carbureted intake selection guide treats that range as a practical first filter and also calls out carburetor flange, ports, and hood clearance as selection checks.
For a stock or mild 305/327/350/400 used for cruising, commuting, or frequent low-speed driving, a low-rise dual-plane can keep the combination focused where it is used most. A high-rise version makes more sense when the cam, heads, exhaust, converter or clutch, and gearing support a higher operating band. Installing a taller manifold on an otherwise mild combination does not automatically create a balanced package.
Use RPM labels as operating-range guidance, not as a horsepower promise or a hard rev limit. Compare ranges on the exact product pages because two manifolds that share a category name can still have different heights, port layouts, and intended applications.
Measure the Complete Induction Stack for Hood Clearance
Manifold height is only one part of hood clearance. The installed stack also includes the intake gasket, any carburetor gasket or spacer, the carburetor, the air-cleaner base, the filter element, and the lid. A drop-base air cleaner can recover space, while a spacer or tall filter can consume it quickly.
- Measure the existing manifold at the front and rear carburetor-pad reference points, because many pads are angled.
- Record every component above the pad, including gaskets and any planned spacer.
- Check the highest point of the air-cleaner lid against the hood’s bracing, scoop, and underhood insulation.
- Leave a practical margin for engine movement instead of treating a barely closed hood as confirmed clearance.
If the vehicle has unusually tight packaging—especially a stock Corvette hood—treat a product-page clearance warning as a stop-and-measure instruction. Published manifold dimensions help compare options, but the assembled vehicle is the final authority.
Fitment Checks That Height Does Not Replace
A manifold can fit under the hood and still be wrong for the engine. Confirm the cylinder-head generation and intake bolt pattern first. Traditional pre-1987 Gen I heads, 1987–1995 factory cast-iron heads, Vortec heads, and aftermarket heads are not automatically interchangeable just because they are all called small-block Chevy.
Next, match the carburetor flange. A 4150-style square-bore manifold needs a compatible carburetor footprint and sufficient throttle-blade clearance. Holley’s carburetor flange guide provides bolt-spacing and printable pattern references. An adapter may solve some pattern mismatches, but it also adds height, another gasket joint, and another possible throttle-clearance issue.
- Compare intake-port dimensions and use the gasket recommended for the exact head/manifold pairing.
- Confirm distributor, water-neck, vacuum-port, accessory-bracket, and oil-fill provisions before assembly.
- For 1987–1995 factory cast-iron heads, use the dedicated SBC TBI vs. 4-barrel intake guide rather than assuming an earlier bolt pattern will fit.
Low-Rise vs. High-Rise: Which Fits Your Street SBC?
Use the table as a decision shortcut, then validate the exact part number. It compares the typical role of each design rather than promising a universal performance result.
| Decision factor | Low-rise dual-plane | High-rise dual-plane |
|---|---|---|
| Street operating focus | Idle through low/midrange | Midrange with more upper-RPM emphasis |
| Hood-clearance margin | Usually easier to package | Requires more careful stack-height measurement |
| Typical combination | Stock or mild cam, street gearing, frequent cruising | Supporting cam, heads, exhaust, and gearing |
| Air-cleaner/spacer sensitivity | More room to work with | Added components can become the clearance limit |
| Best first question | Do I need stock-like packaging? | Will I use the higher operating range? |
Choose the low-rise path when packaging and everyday response lead the priority list. Choose the high-rise path when the engine is built to use its higher operating range and you can prove clearance before ordering. If either answer depends on an unmeasured assumption, pause and measure.
Haytalras SBC Dual-Plane Options
The Haytalras 2701 low-rise dual-plane intake is listed at 4.27 inches with an idle–5,500 RPM range, a 4150 square-bore flange, and fitment for 1955–1986 262–400 small-block Chevy applications. It is the more packaging-friendly choice for a mild street combination when the head pattern and surrounding parts match.
Another low-rise option for conventional small-block Chevy cylinder heads is the Haytalras 2013 low rise dual plane intake manifold. It is listed at 4.40 inches with an idle–5,500 RPM operating range and a square-bore carburetor mounting pattern for Holley 4150/4160-style carburetors. Adapter bushings allow installation with certain 1987–1995 cylinder heads, but this manifold is not designed for later Vortec heads. Confirm the cylinder-head bolt pattern before choosing it over the 2701.
For an SBC equipped with Vortec-style cylinder heads, the Haytalras 2007 Vortec dual-plane intake provides a separate low-rise fitment path. It is listed at 4.25 inches with an idle–5,500 RPM operating range and is intended for 1996–2002 Chevy 305 and 350 Vortec applications. The manifold is listed as a spread-bore design and includes a square-bore carburetor adapter and gasket. Because its Vortec bolt pattern differs from earlier conventional SBC heads, select it by cylinder-head family rather than displacement alone.
If you are comparing a broader set of street and performance layouts, review the Haytalras Chevy SBC intake manifold collection. Match the engine first, then the operating range, then the complete hood-clearance stack. That order prevents a visually appealing intake from becoming an expensive fitment problem.
