Intake manifolds for GM LS engines from 4.8L to 6.2L, including LS swap projects. Options cover cathedral-port heads (LS1, LS2, LS6) and rectangle-port heads (LS3, L92), with 4150 carbureted manifolds, EFI manifolds and 92 mm and 102 mm Hi-Ram designs.
Our V8 intake manifolds are cast and CNC-machined in our own factory, then checked for air-tightness, dimensions and finish before they are packed. Orders ship within 24 hours on business days from our warehouses in Ontario, California and Bloomingdale, Georgia.
Which LS engines use which port
• Cathedral port: LS1 and LS6 5.7L, LS2 6.0L, LQ4 and LQ9 6.0L trucks, and most 4.8L and 5.3L truck engines (LR4, LM7, L59, LY2, LH6, LC9, LMG, LY5)
• Rectangle port: LS3, L92, L9H and L99 6.2L, plus L76, L77, LY6 and L96 6.0L
• Not compatible: 2014-and-later Gen V LT engines (LT1, L83, L86 and others) use different heads and direct injection, so LS intakes will not fit.
If your heads have been swapped, go by the heads on the engine, not the engine code. A 6.2L LS (LS3, L92, L99) needs a rectangle-port intake.
How to choose an LS intake manifold
1. Port shape first. LS1, LS2, LS6 and most 4.8/5.3/6.0 truck engines use cathedral-port heads; LS3 and L92 use rectangle-port heads. The two are not interchangeable, so check your heads before anything else.
2. Carburetor or fuel injection. A carbureted 4150 intake has no injector bosses and is the simplest LS swap setup. An EFI intake keeps port fuel injection and needs a fuel rail and an ECU.
3. Hood clearance. Hi-Ram intakes sit much taller than a factory intake and suit cars with a cowl or hood scoop.
| Your build | Good starting point |
|---|---|
| Cathedral port, carb swap, street torque | 300-130 Dual Plane 4150 |
| Cathedral port, carb, more top-end | 300-132 Single Plane 4150 |
| Cathedral port, EFI, 4150 throttle body | 300-137 Single Plane EFI |
| Rectangle port, carb swap, street torque | 300-129 Dual Plane 4150 |
| Rectangle port, carb, more top-end | 300-131 Single Plane 4150 |
| Rectangle port, EFI, 4150 throttle body | 300-136 Single Plane EFI |
| Hi-Ram EFI, cathedral port | 300-122 (92mm) or 300-123 (102mm) |
| Hi-Ram EFI, rectangle port | 300-116 (92mm) or 300-117 (102mm) |
FAQ
How do I tell cathedral port from rectangle port?
Look at the intake ports on the head: cathedral ports are tall and narrow with a pointed top; rectangle ports are wider and square. LS3, L92 and L99 heads are rectangle port.
Which intake fits a 6.2 LS?
6.2L LS engines (LS3, L92, L9H, L99) have rectangle-port heads, so choose a rectangle-port model: 300-129, 300-131, 300-136, or the 300-116 / 300-117 Hi-Ram.
Carb or EFI for an LS swap?
A carb intake is simpler and cheaper to wire; EFI keeps better drivability and fuel economy. See our EFI vs Carbureted LS Intake guide and the LS Carb Intake Manifold Guide.
92mm or 102mm Hi-Ram?
92mm suits most street builds; 102mm suits larger, higher-RPM combinations. The throttle body must match the opening; see our LS throttle bodies.
-10%
Haytalras 300-122 GM LS1 LS2 LS6 Cathedral Port 92mm Hi-Ram EFI Intake Manifold 5.7L 6.0L
-10%
$439.99
$489.99
300-122 Hi-Ram EFI Intake Manifold for Cathedral Port LS A 92mm Hi-Ram EFI intake manifold...
-10%

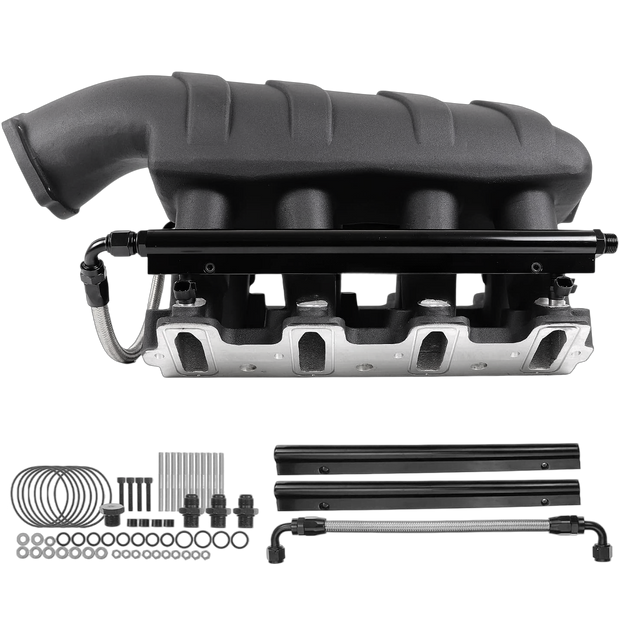

Haytalras 300-123 GM LS1 LS2 LS6 Cathedral Port 102mm Hi-Ram EFI Intake Manifold 5.7L 6.0L
-10%
$459.99
$509.99
300-123 102mm Hi-Ram EFI Intake Manifold for Cathedral Port LS A Hi-Ram EFI intake manifold...
-14%

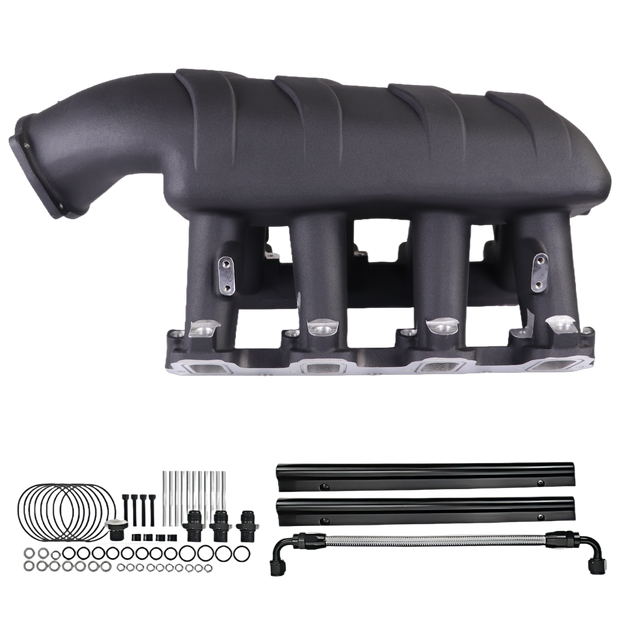

Haytalras 300-116 GM LS3 L92 Rectangle Port 92mm Hi-Ram EFI Intake Manifold 6.0L 6.2L
-14%
$359.99
$419.99
300-116 Hi-Ram EFI Intake Manifold for Rectangle Port LS A 92mm Hi-Ram EFI intake manifold...
-10%
Haytalras 300-117 GM LS3 L92 Rectangle Port 102mm Hi-Ram EFI Intake Manifold 6.0L 6.2L
-10%
$376.99
$419.99
300-117 102mm Hi-Ram EFI Intake for LS3 / L92 Rectangle Port A 102mm Hi-Ram EFI...
-10%

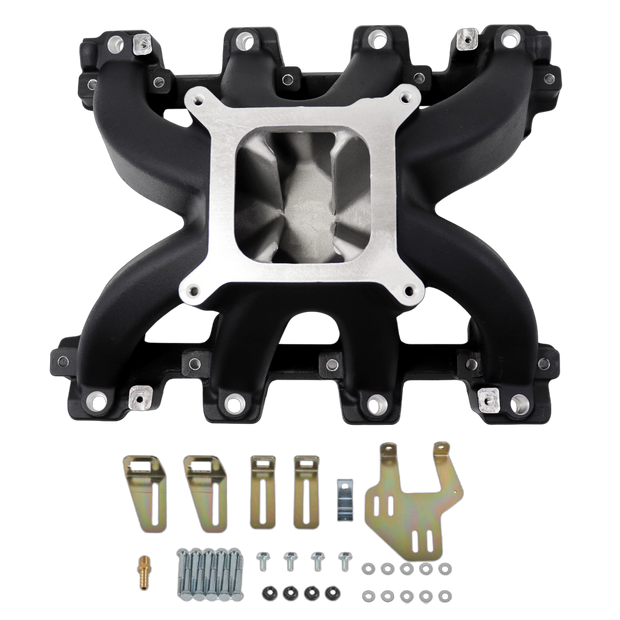

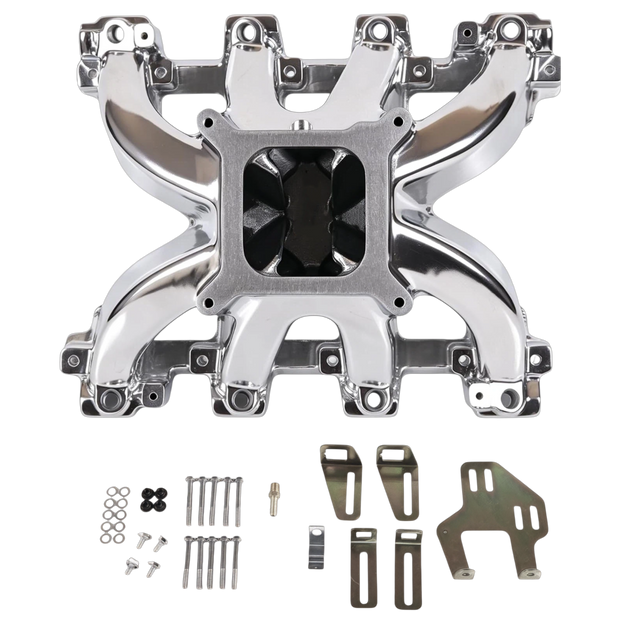

Haytalras 28095 GM LS1 LS2 Super Victor EFI Single Plane 4150 Intake Manifold 5.7L 6.0L Cathedral Port
-10%
$179.99
$199.99
28095 Super Victor EFI Single Plane Intake for LS Cathedral Port A Super Victor style,...
-10%

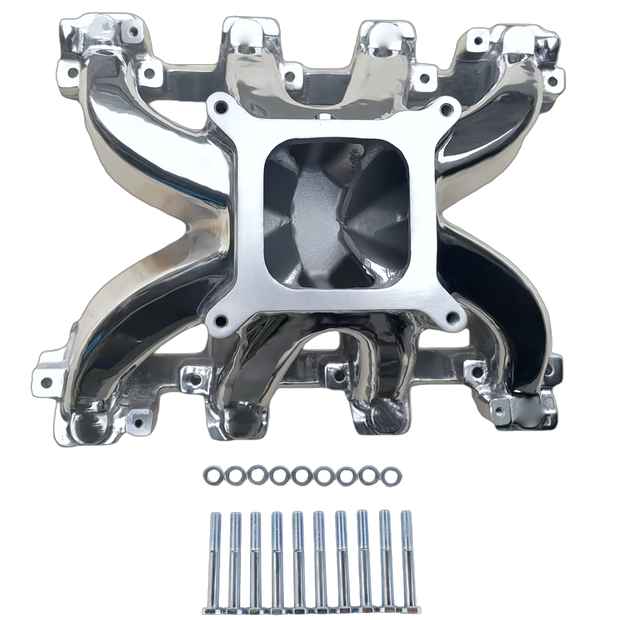

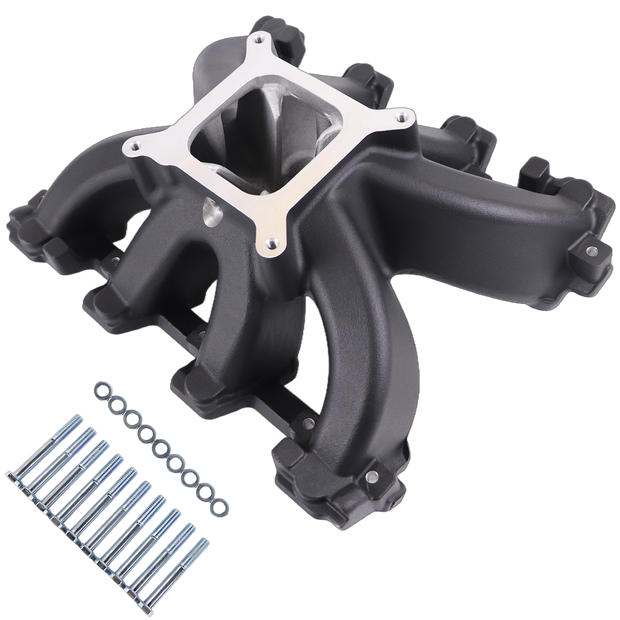

Haytalras 28097 GM LS1 LS2 LS6 Super Victor Carbureted Single Plane 4150 Intake Manifold 5.7L 6.0L Cathedral Port
-10%
$179.99
$199.99
28097 Super Victor Carbureted Single Plane Intake for LS Cathedral Port A Super Victor style,...
-4%

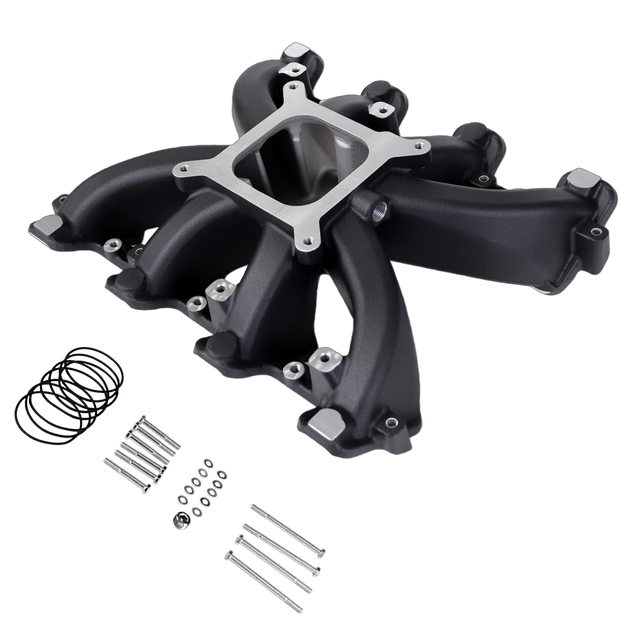

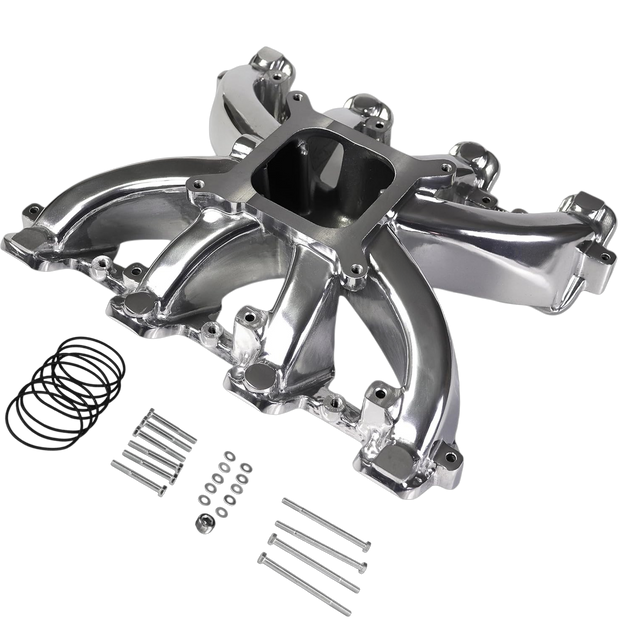

Haytalras 300-132 GM LS1 LS2 LS6 Cathedral Port Mid-Rise Single Plane 4150 Intake Manifold 5.7L 6.0L
-4%
$129.99
$134.99
300-132 Mid-Rise Single Plane Carbureted Intake for Cathedral Port LS Bolt a 4-barrel carburetor onto...

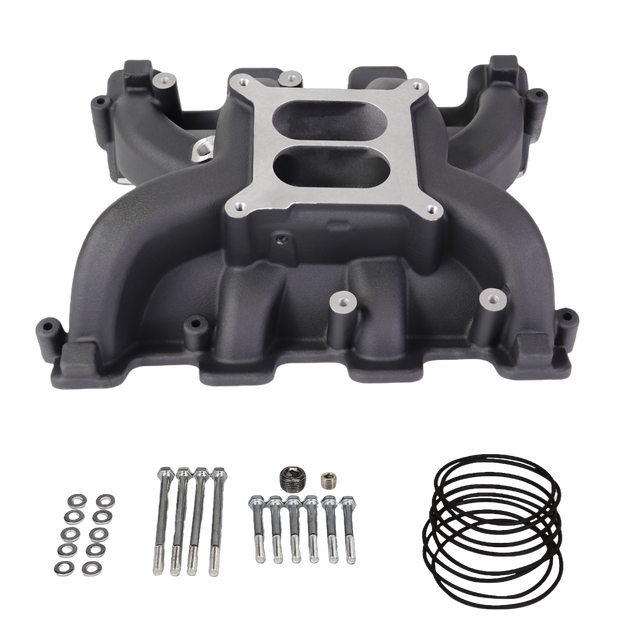

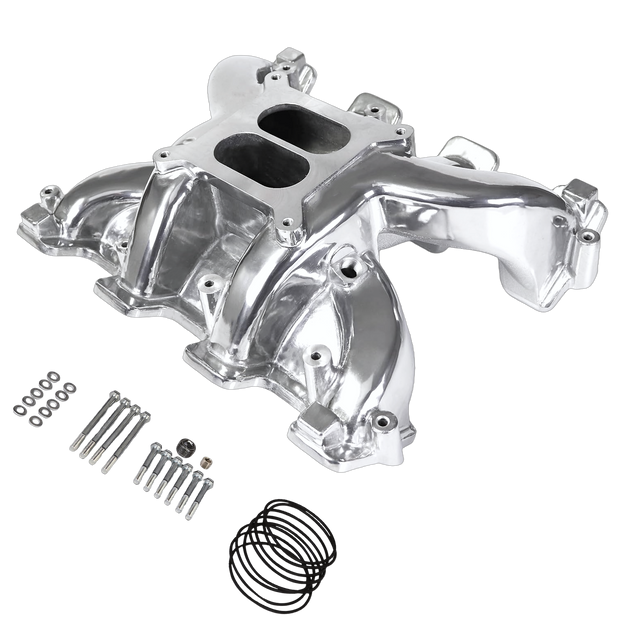

Haytalras 300-130 GM LS1 LS2 LS6 Cathedral Port Mid-Rise Dual Plane 4150 Intake Manifold 5.7L 6.0L
$129.99
300-130 Carbureted Dual Plane Intake for LS1 / LS2 / LS6 Cathedral Port A mid-rise,...

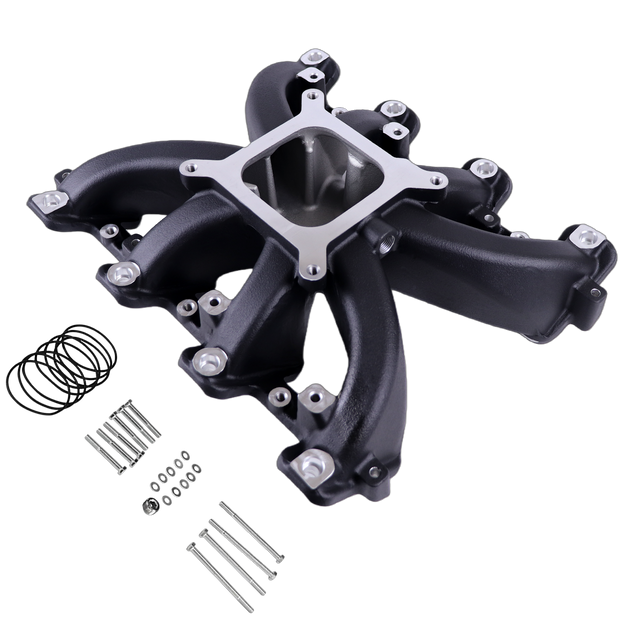

Haytalras 300-137 GM LS1 LS2 LS6 Cathedral Port Mid-Rise Single Plane 4150 EFI Intake Manifold 5.7L 6.0L
$139.99
300-137 EFI Single Plane Intake for LS1 / LS2 / LS6 Cathedral Port A mid-rise,...

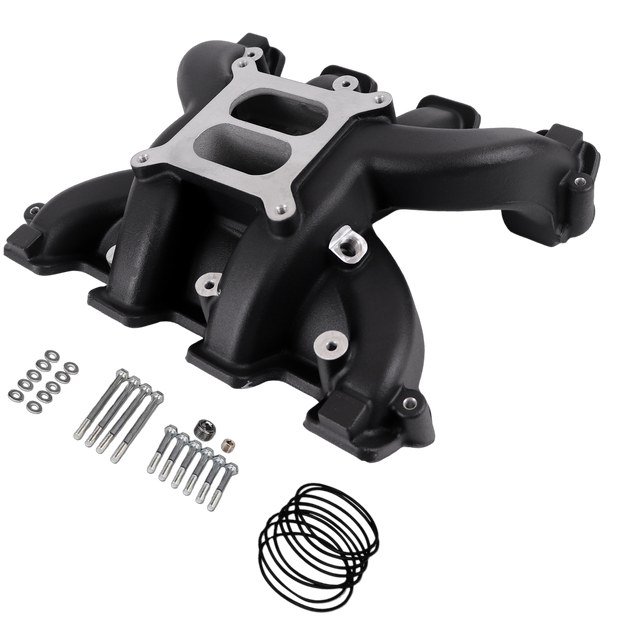

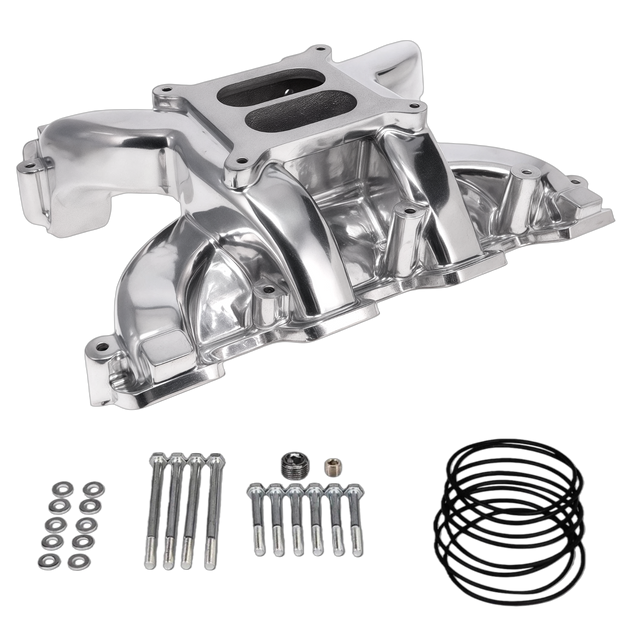

Haytalras 300-129 GM LS3 L92 Rectangle Port Mid-Rise Dual Plane 4150 Intake Manifold 6.0L 6.2L
$143.99
300-129 Carbureted Dual Plane Intake for LS3 / L92 Rectangle Port A mid-rise, dual-plane carbureted...
-30%

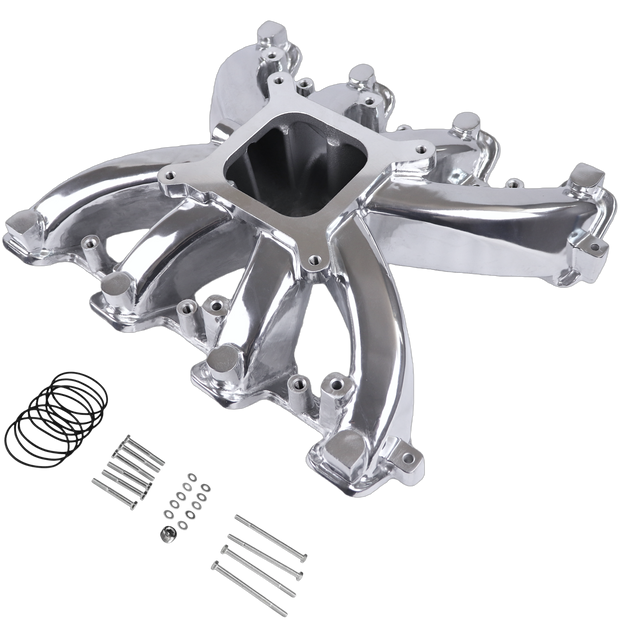

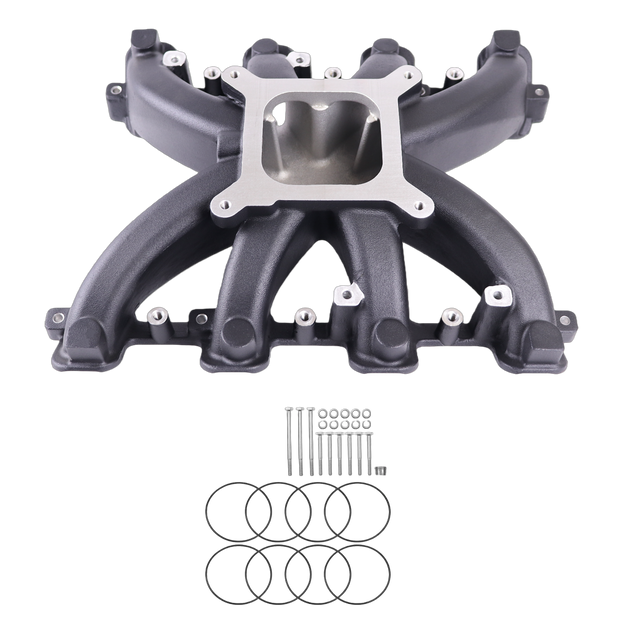

Haytalras 300-131 GM LS3 L92 Rectangle Port Mid-Rise Single Plane 4150 Intake Manifold 6.0L 6.2L
-20%
$143.99
$179.99
300-131 Carbureted Single Plane Intake for LS3 / L92 Rectangle Port A mid-rise, single-plane carbureted...

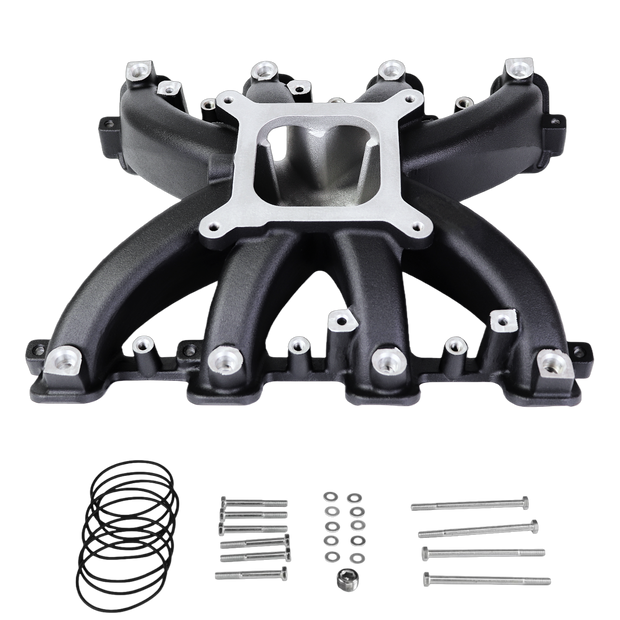

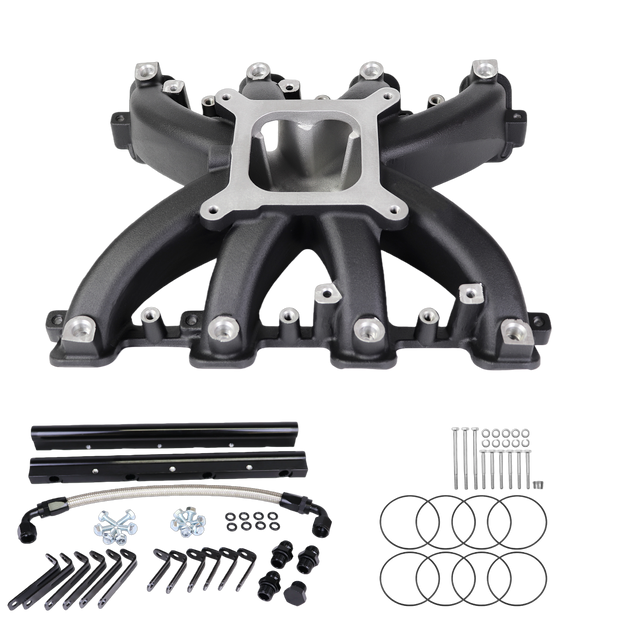

Haytalras 300-136 GM LS3 L92 Rectangle Port Mid-Rise Single Plane 4150 EFI Intake Manifold 6.0L 6.2L
$139.99
300-136 EFI Single Plane Intake for LS3 / L92 Rectangle Port A mid-rise, single-plane EFI...
