LS swap oil pans for GM LS engines from 4.8L to 6.2L. Choose from low-profile and extra-clearance rear-sump pans, a front-sump option and a Gen V LT pan, with pickup tubes and installation hardware included where listed.
Orders ship within 24 hours on business days from our US warehouses in Ontario, California and Bloomingdale, Georgia. Not sure about fitment? Email us your vehicle year, make, model and engine and we will confirm before you buy.
How to choose an LS swap oil pan
The factory LS oil pan often hits the crossmember or steering in an older chassis. Choose the pan whose deep sump sits where your chassis has room. For depth drawings, a chassis chart and torque specs, read our LS Swap Oil Pan Guide: 302-1 vs 302-2 vs 302-3.
| Your swap | Good starting point |
|---|---|
| Most 1955–1987 GM cars and trucks with room behind the crossmember (5.69 in. deep, up to 4.25 in. stroke) | 302-1 oil pan (low-profile rear sump) |
| Steering linkage close behind the crossmember: first-gen Camaro/Firebird, Nova, A-body, G-body, third-gen F-body (1.25 in. front section, up to 3.62 in. stroke) | 302-2 oil pan (low-profile rear sump) |
| Same chassis with a stroker or turbo, or a Fox-body Mustang swap (up to 4.00 in. stroke, turbo return ports) | 302-3 oil pan (extra-clearance rear sump) |
| Chassis that needs a front sump | 81076 Low-Profile Front Sump |
| Gen V LT (LT1, LT4, L83, L86) | 302-20 Gen V LT Rear Sump |
FAQ
Front sump or rear sump?
It depends where your crossmember and steering linkage sit. Measure the space in front of and behind the crossmember, or email us your vehicle and we will tell you which pan fits.
Do I need a new pickup tube?
Yes, the pickup must match the pan. Kits that include a pickup tube say so on the product page.
Does it fit Gen V LT engines?
Only the 302-20 is for Gen V LT engines; the others are for Gen III/IV LS engines.
Haytalras 302-1 GM LS Swap Low-Profile Rear Sump Oil Pan Kit 1955-1987 4.8L-6.2L
$119.99
302-1 Low-Profile Rear Sump LS Swap Oil Pan Kit The Haytalras 302-1 oil pan is...

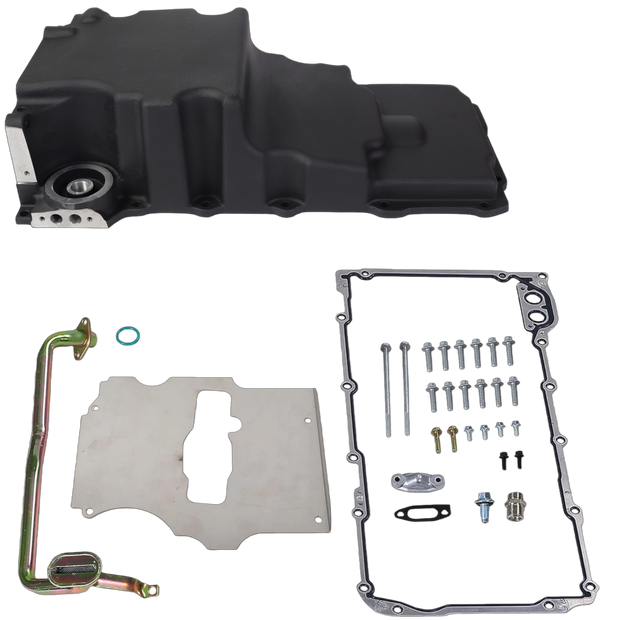

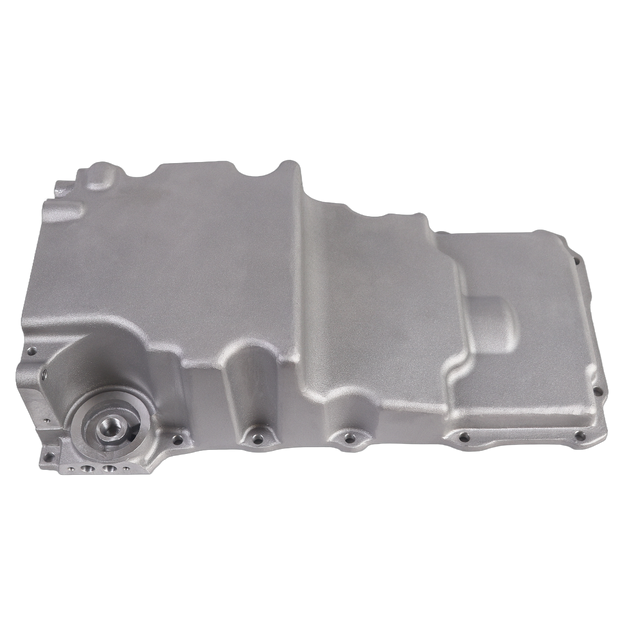

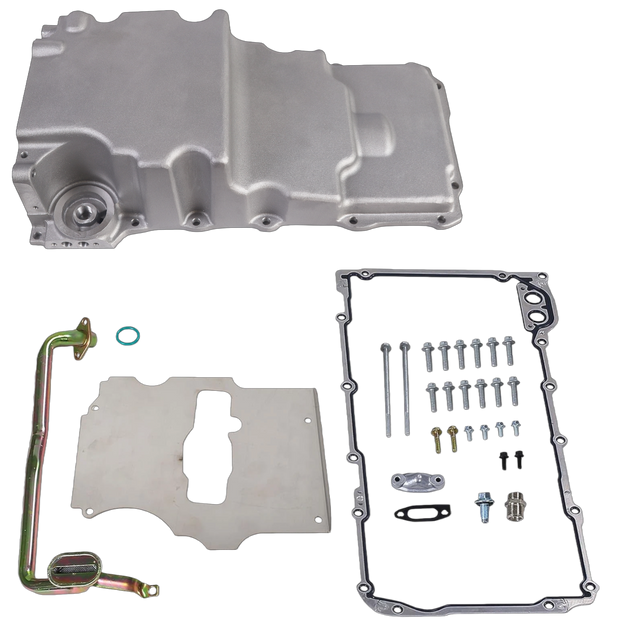

Haytalras 302-2 GM LS Swap Low-Profile Rear Sump Oil Pan Kit 4.8L-6.2L
$119.99
302-2 Low-Profile Rear Sump Oil Pan Kit for LS Swaps The Haytalras 302-2 oil pan...

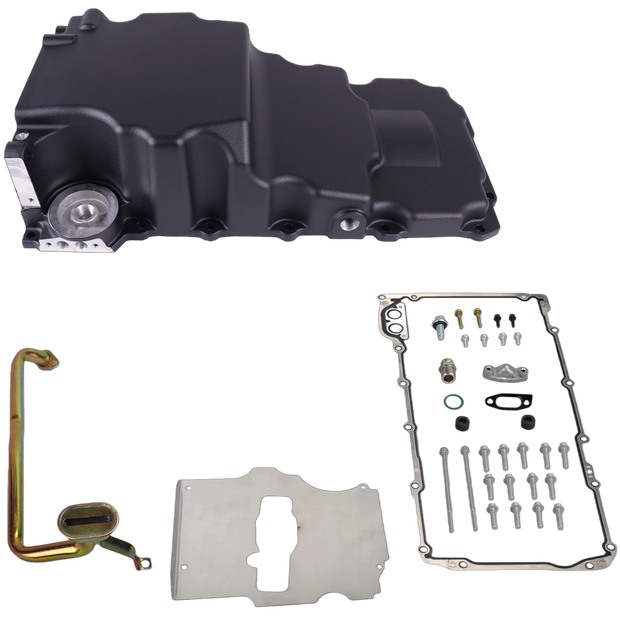

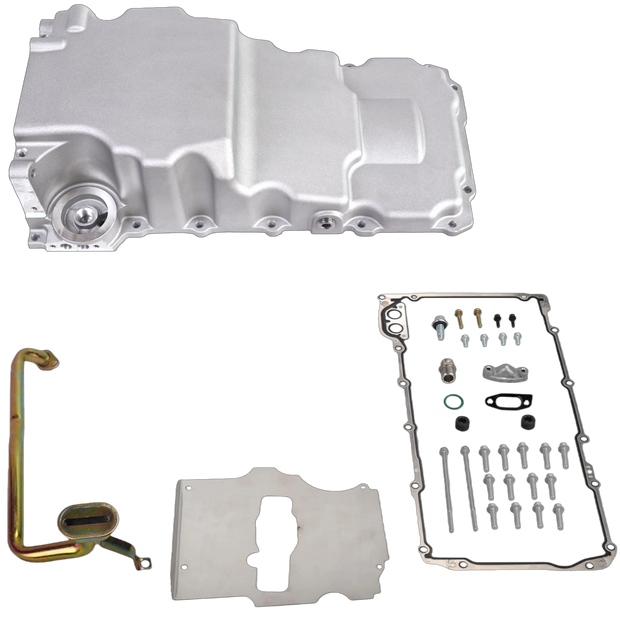

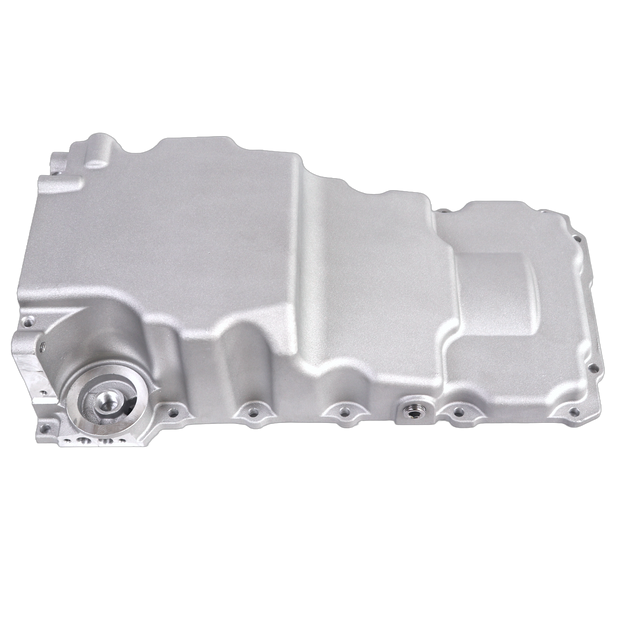

Haytalras 302-3 GM LS Swap Extra-Clearance Rear Sump Oil Pan Kit 4.8L-6.2L
$119.99
302-3 Extra-Clearance Rear Sump Oil Pan Kit for LS Swaps The Haytalras 302-3 oil pan...
-10%

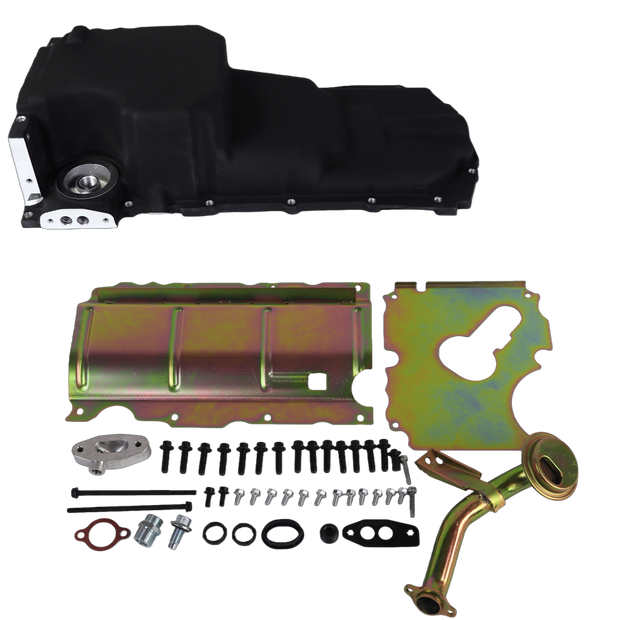

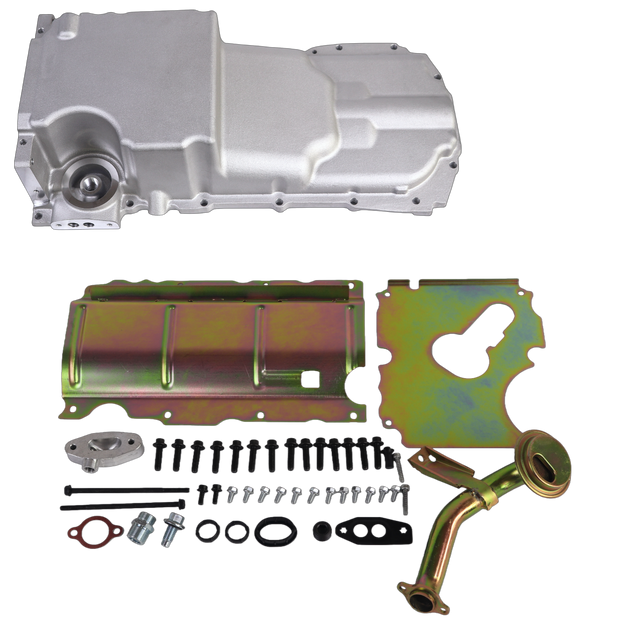

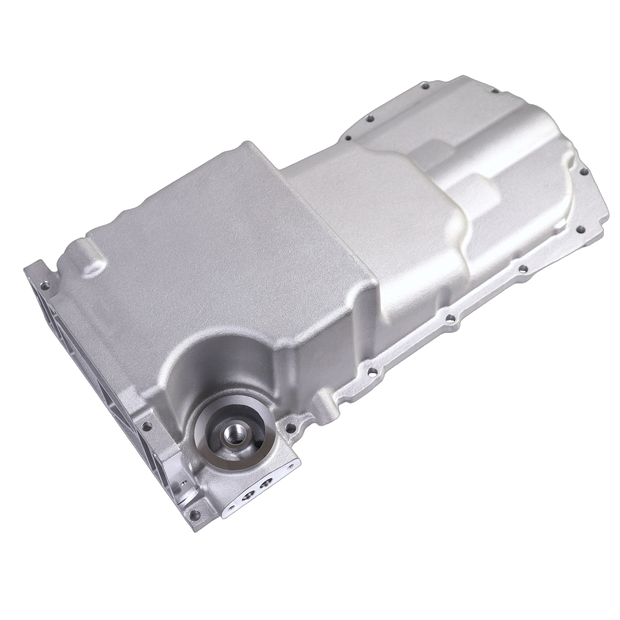

Haytalras 302-20 GM Gen V LT Swap Rear Sump Oil Pan Kit 5.3L 6.2L LT1 LT4 L83 L86
-10%
$206.99
$229.99
302-20 Rear Sump Oil Pan Kit for Gen V LT Swaps A cast-aluminum rear sump...
-15%
Sold Out
Haytalras 81076 GM LS Swap Low-Profile Front Sump Oil Pan Kit 4.8L-6.2L
-15%
$191.24
$224.99
81076 Low-Profile Front Sump Oil Pan Kit for LS Swaps A cast-aluminum, low-profile front sump...
-10%
Haytalras GM LS Swap Aluminum Rear Sump Oil Pan Kit for LS1 LS3 LSA LSX – 19212593 Style
-10%
$107.99
$119.99
LS Swap Rear Sump Aluminum Oil Pan Kit (19212593 Style) A complete rear sump, wet...
