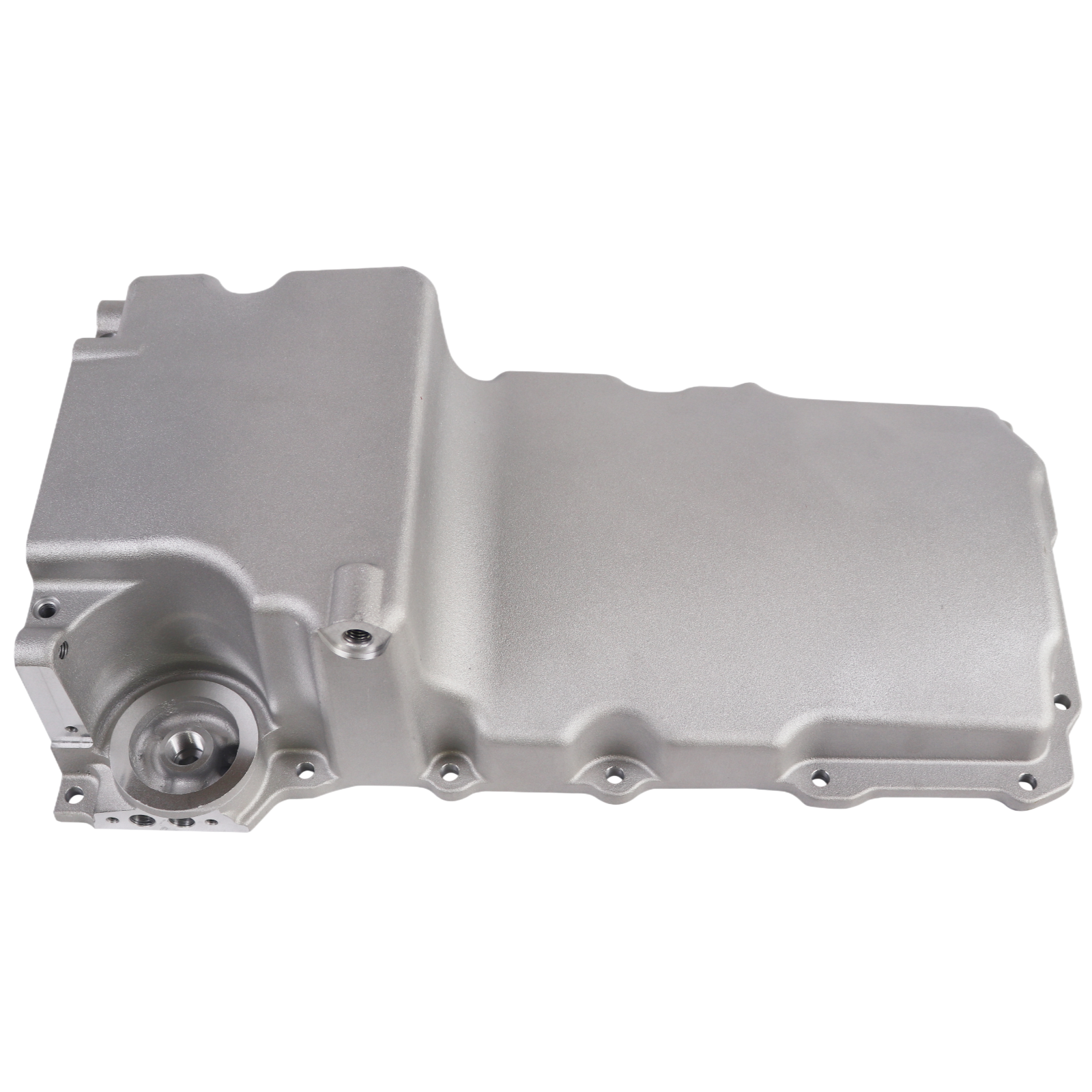

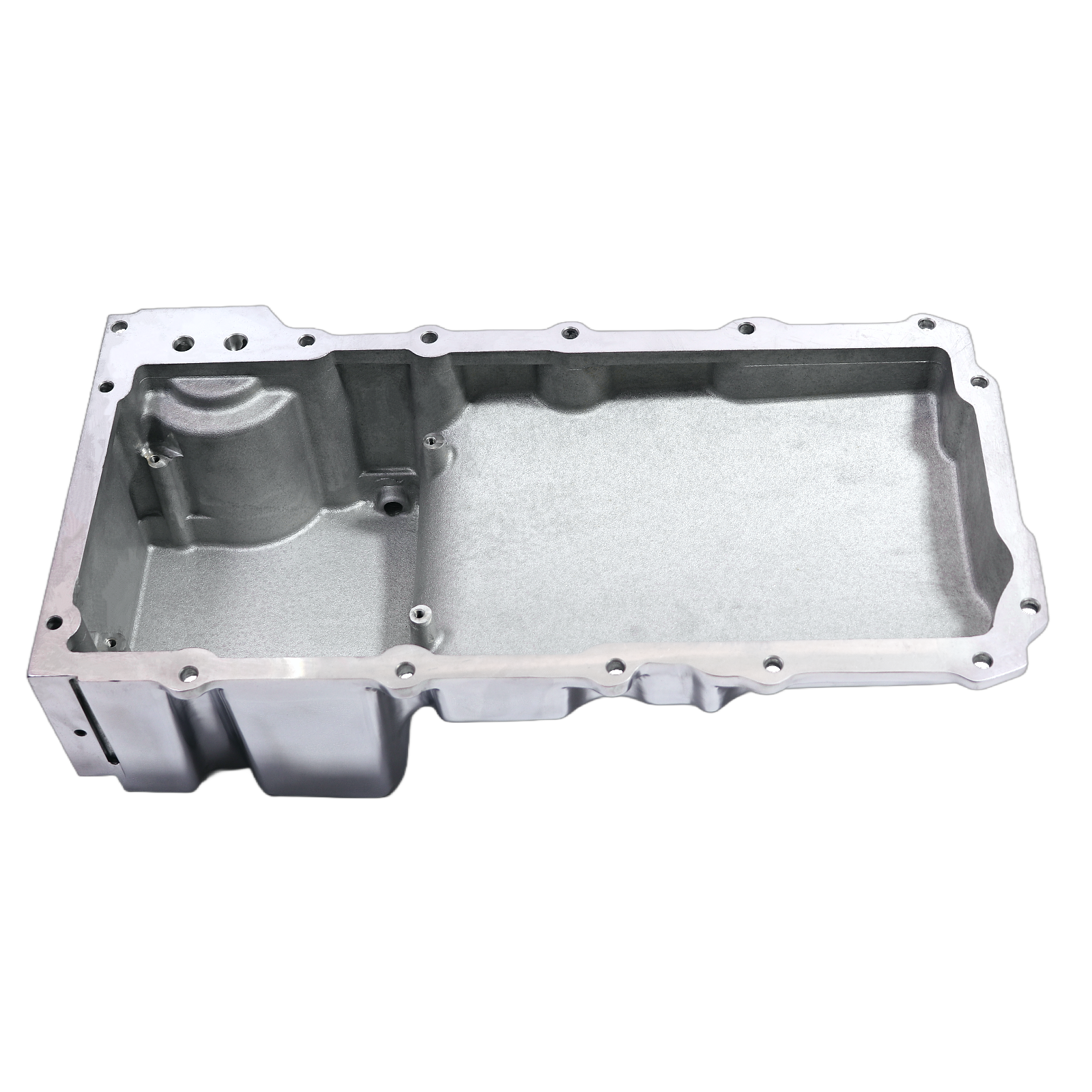

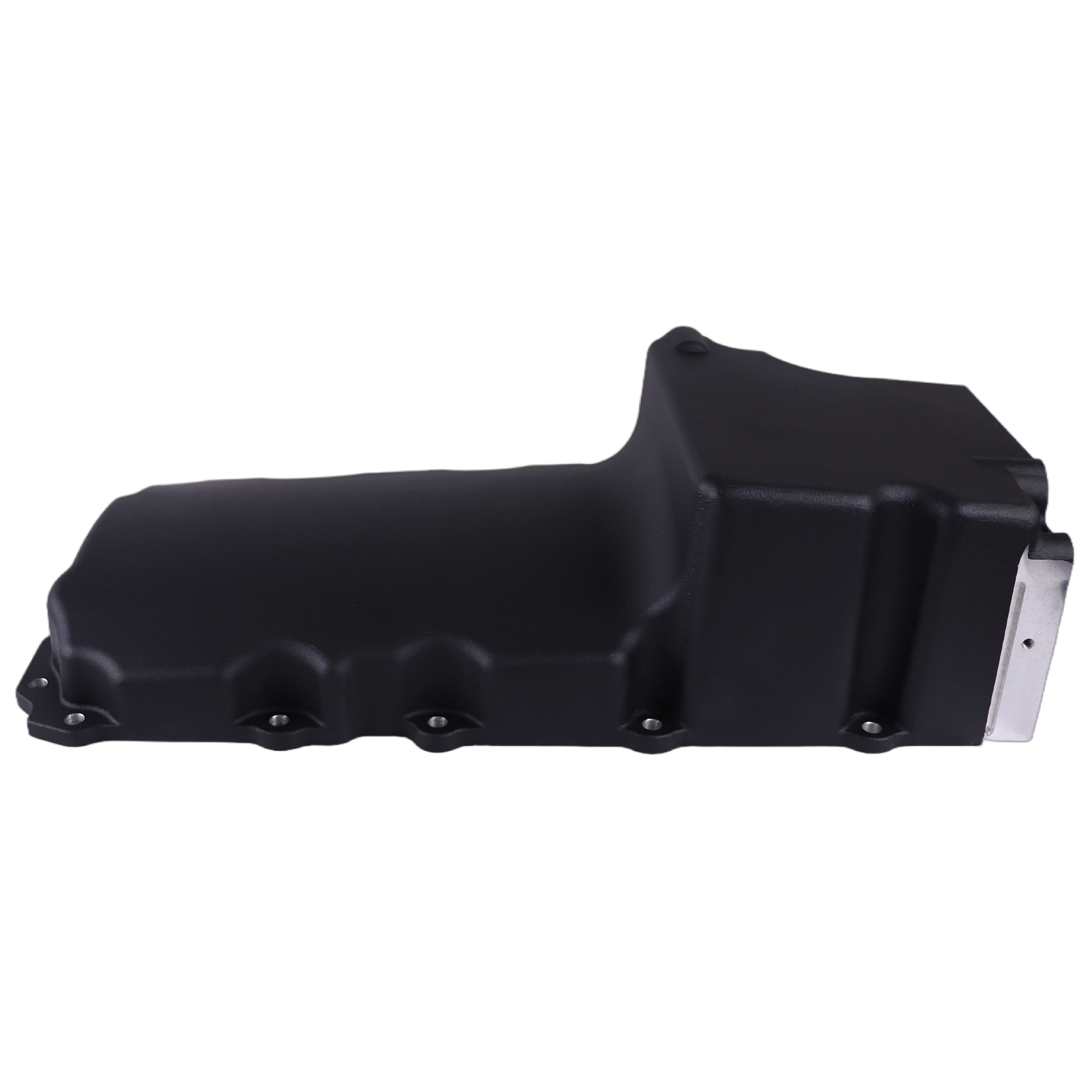

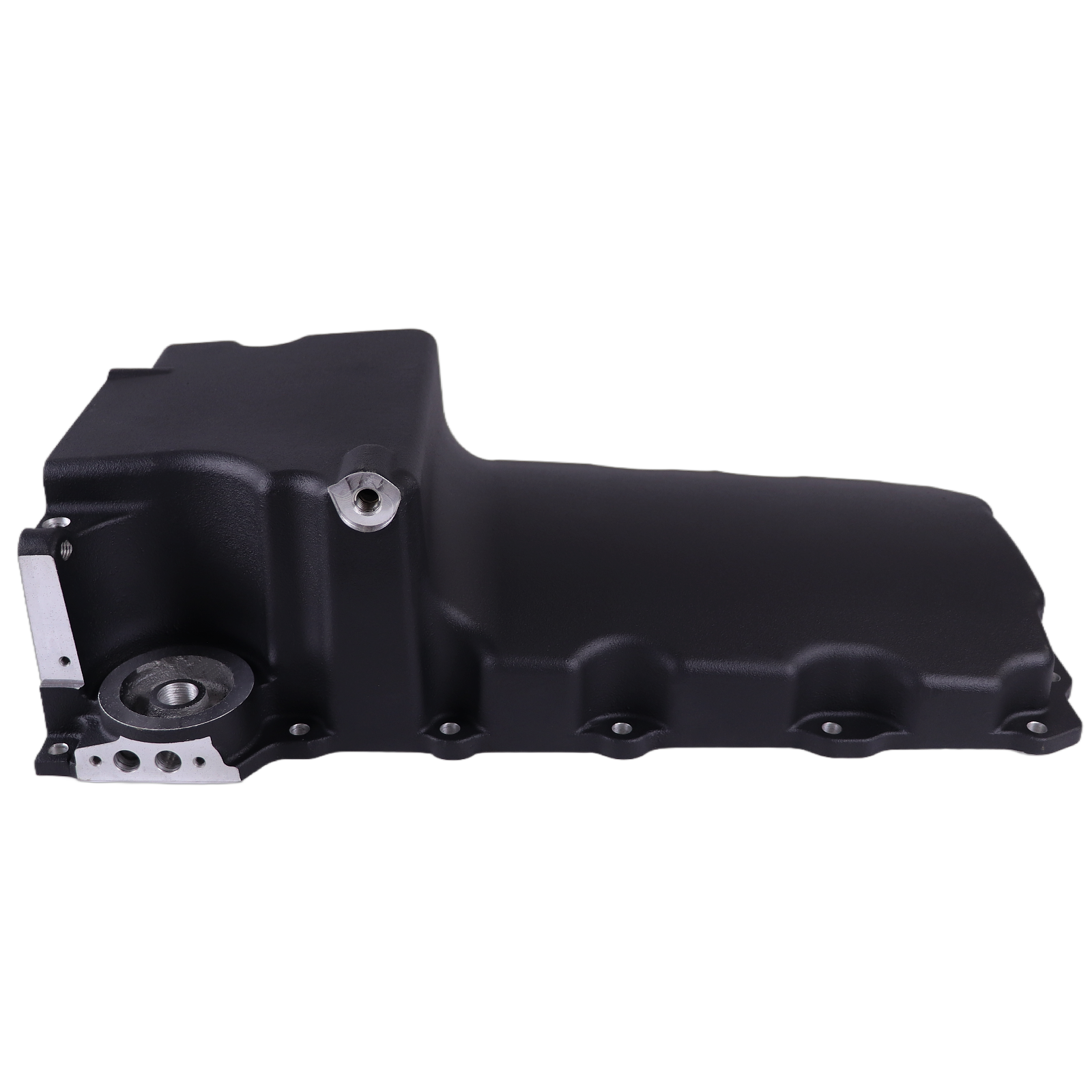

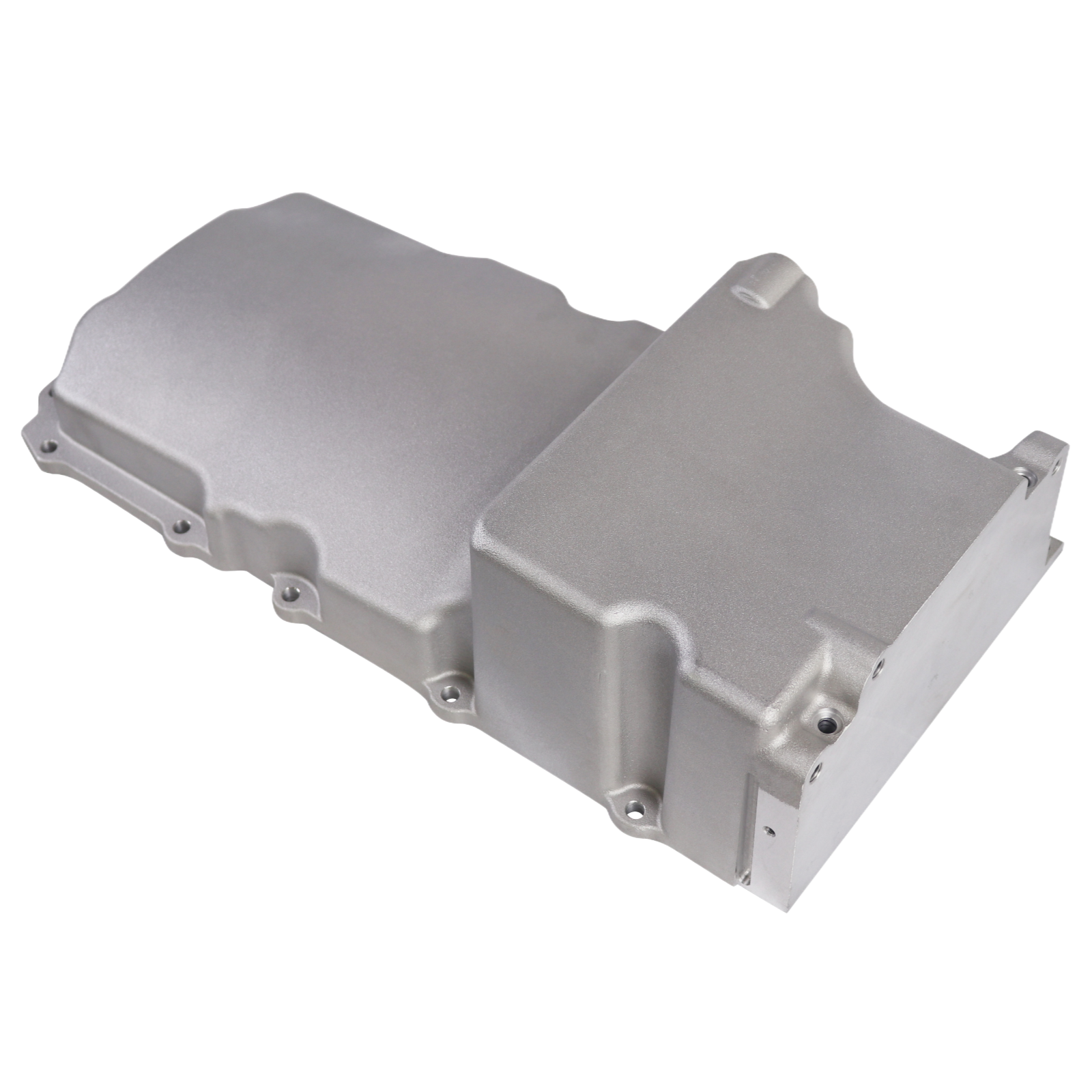

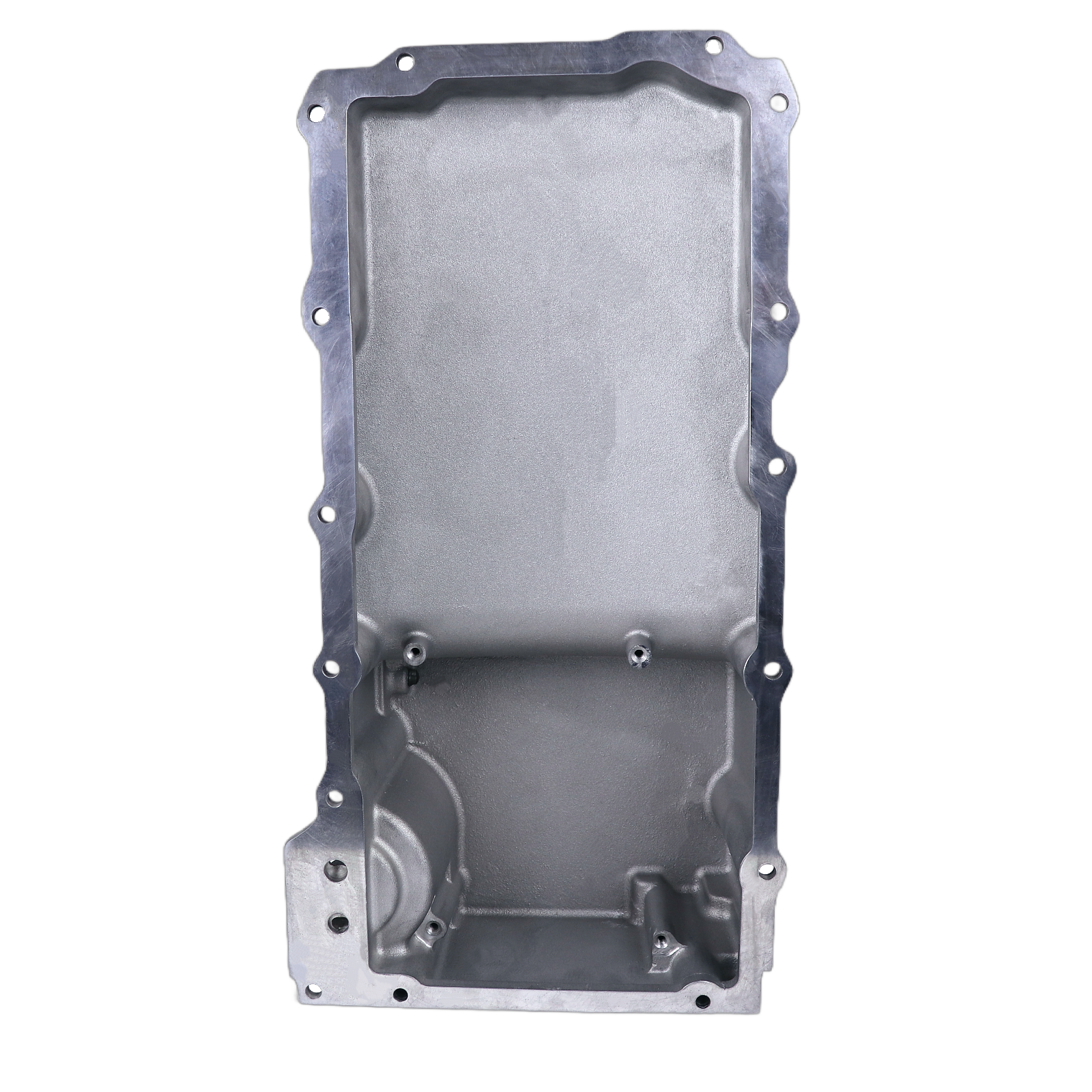

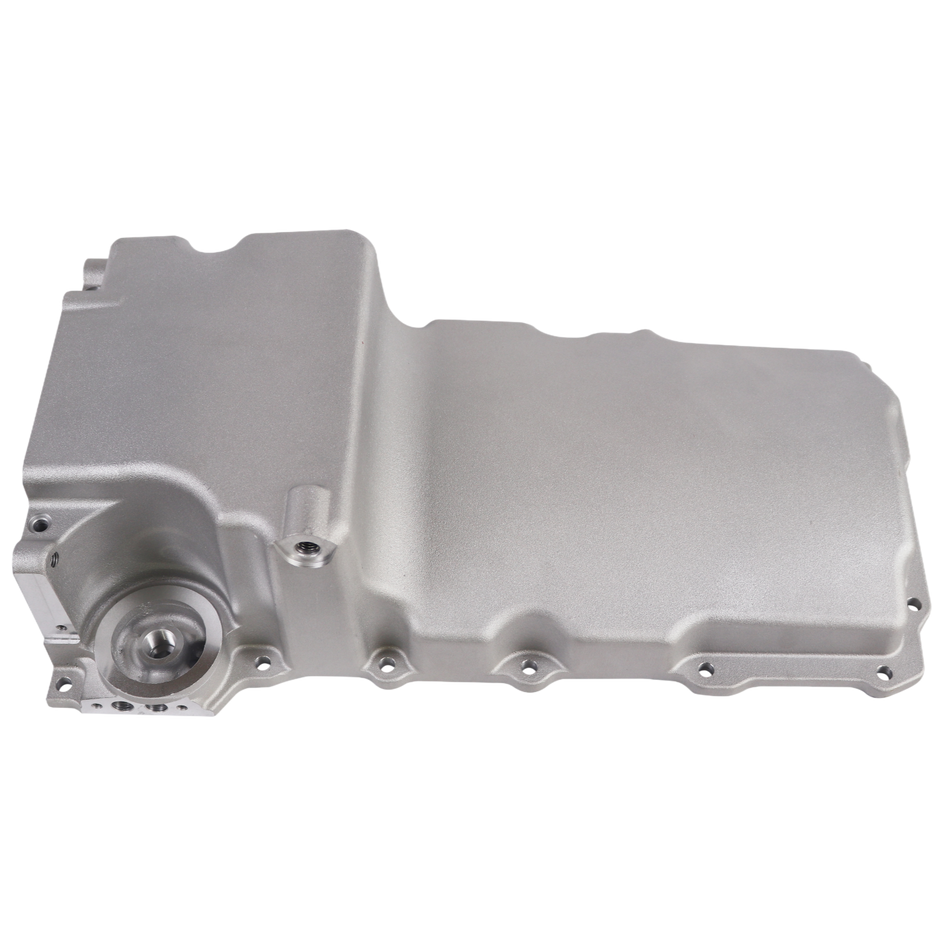

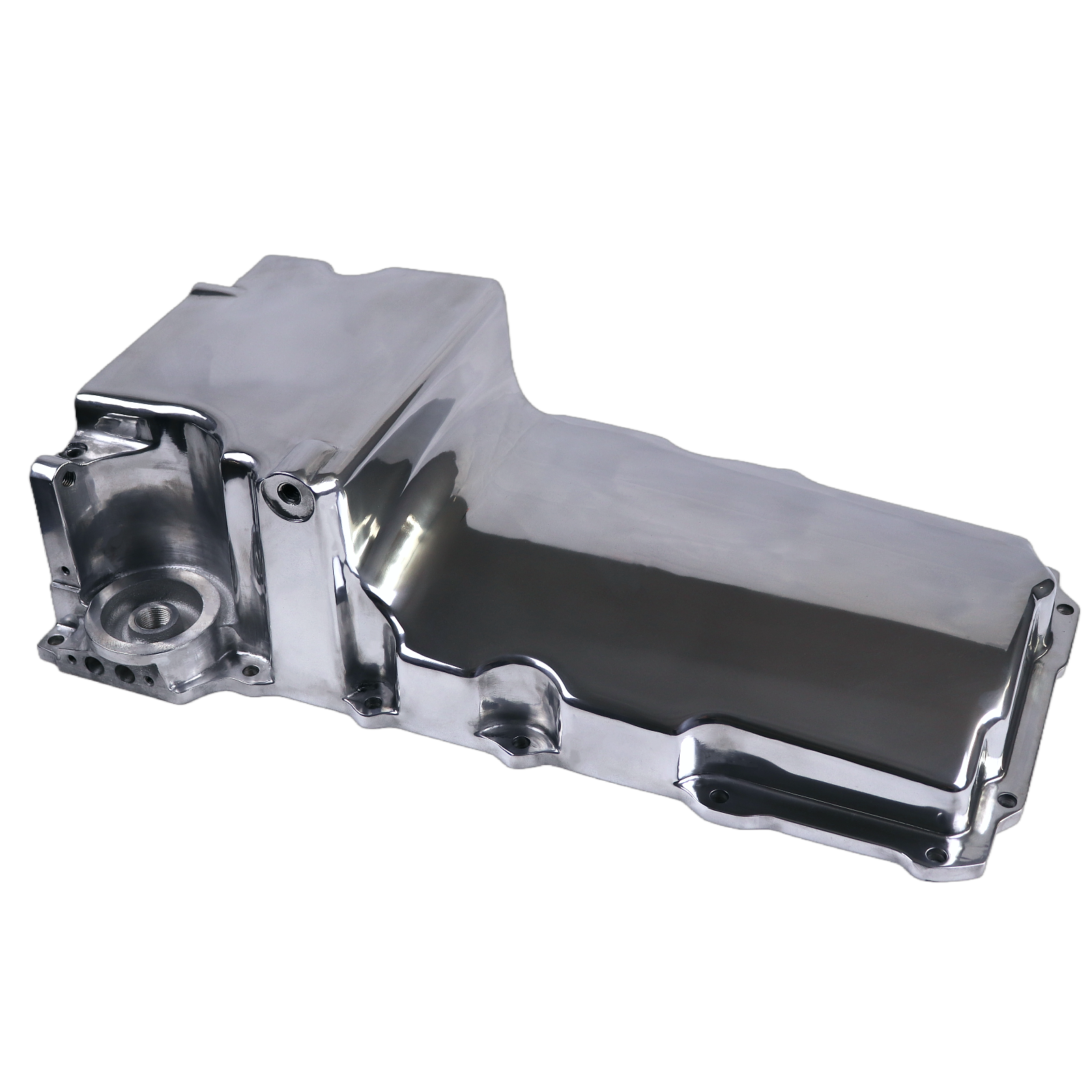

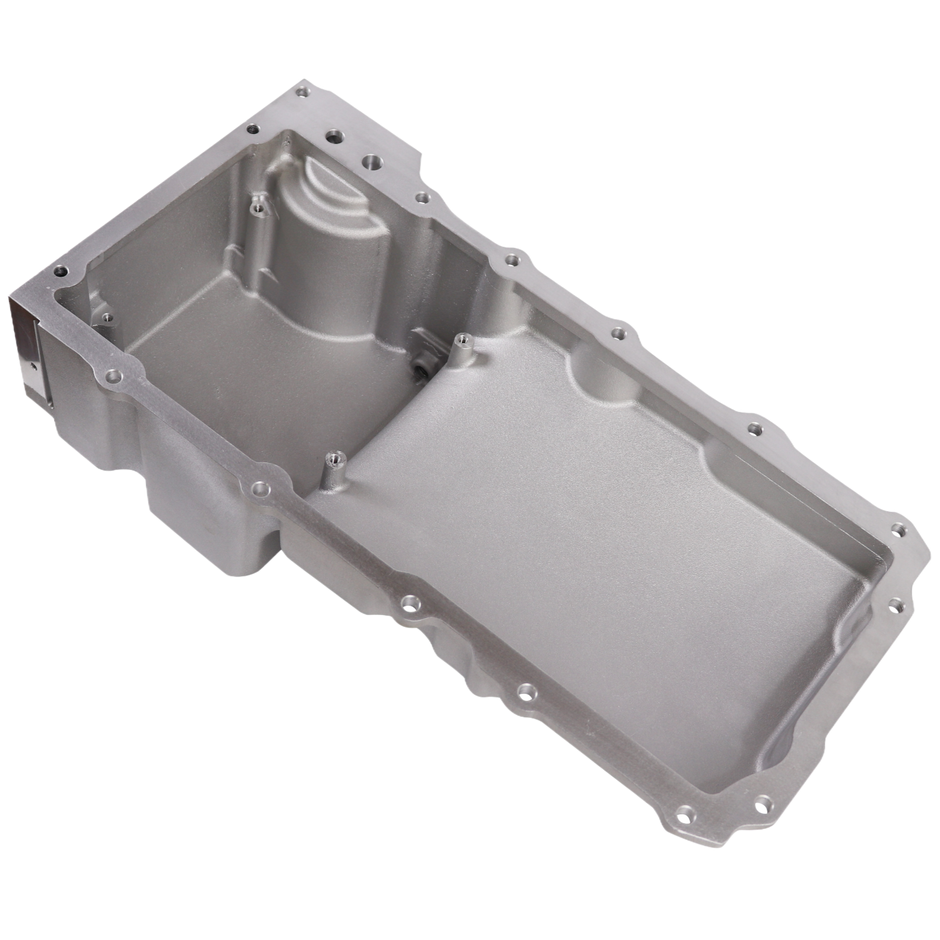

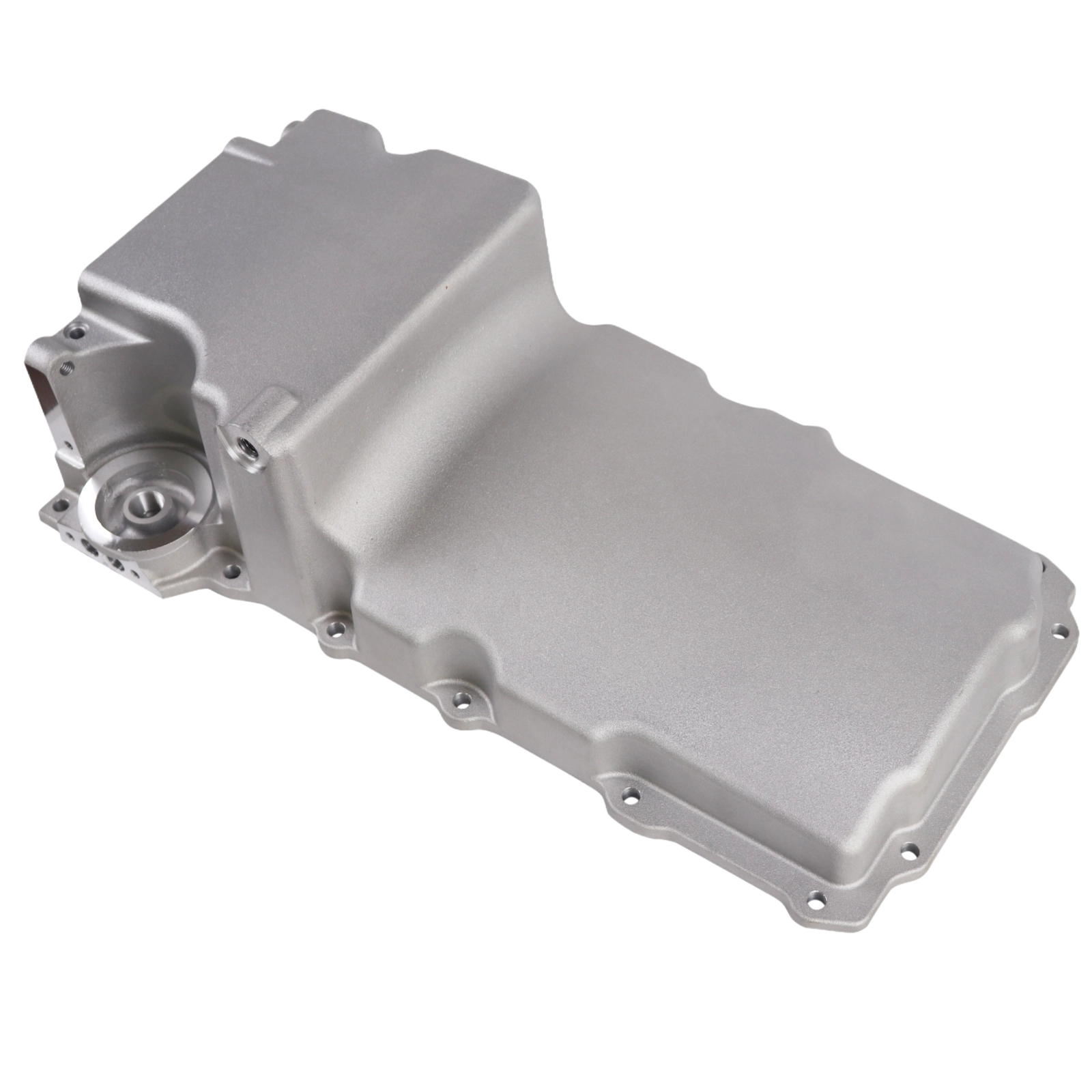

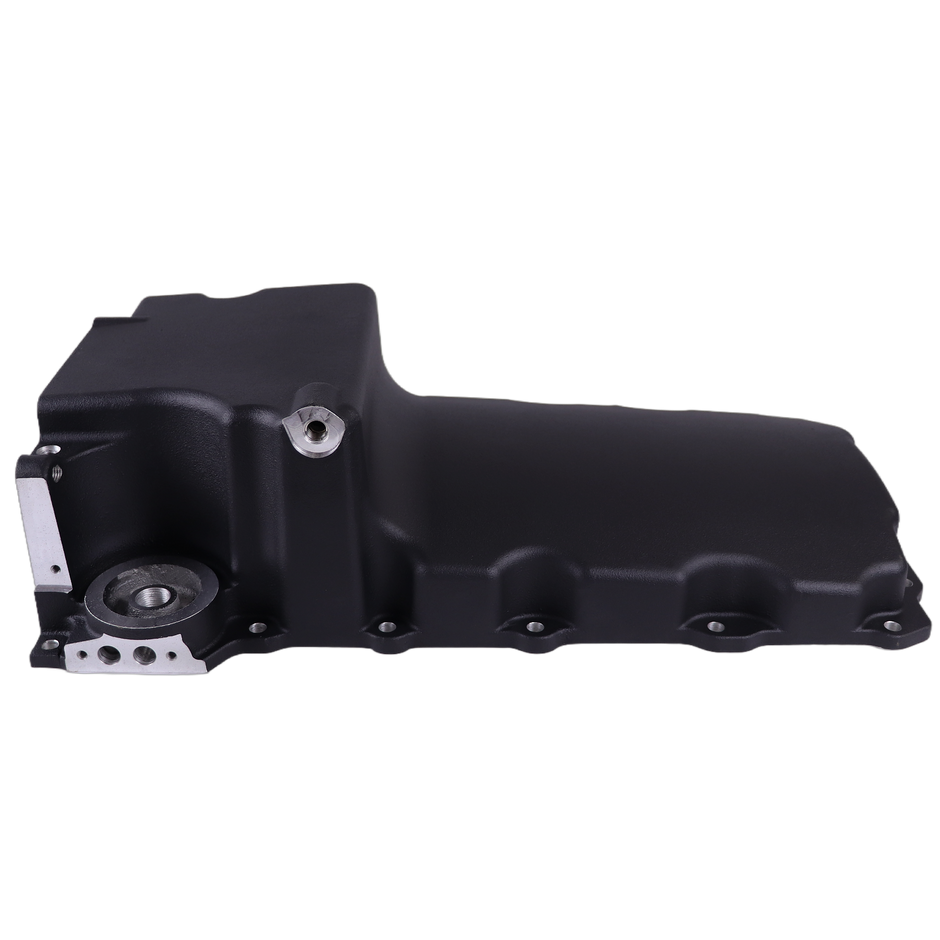

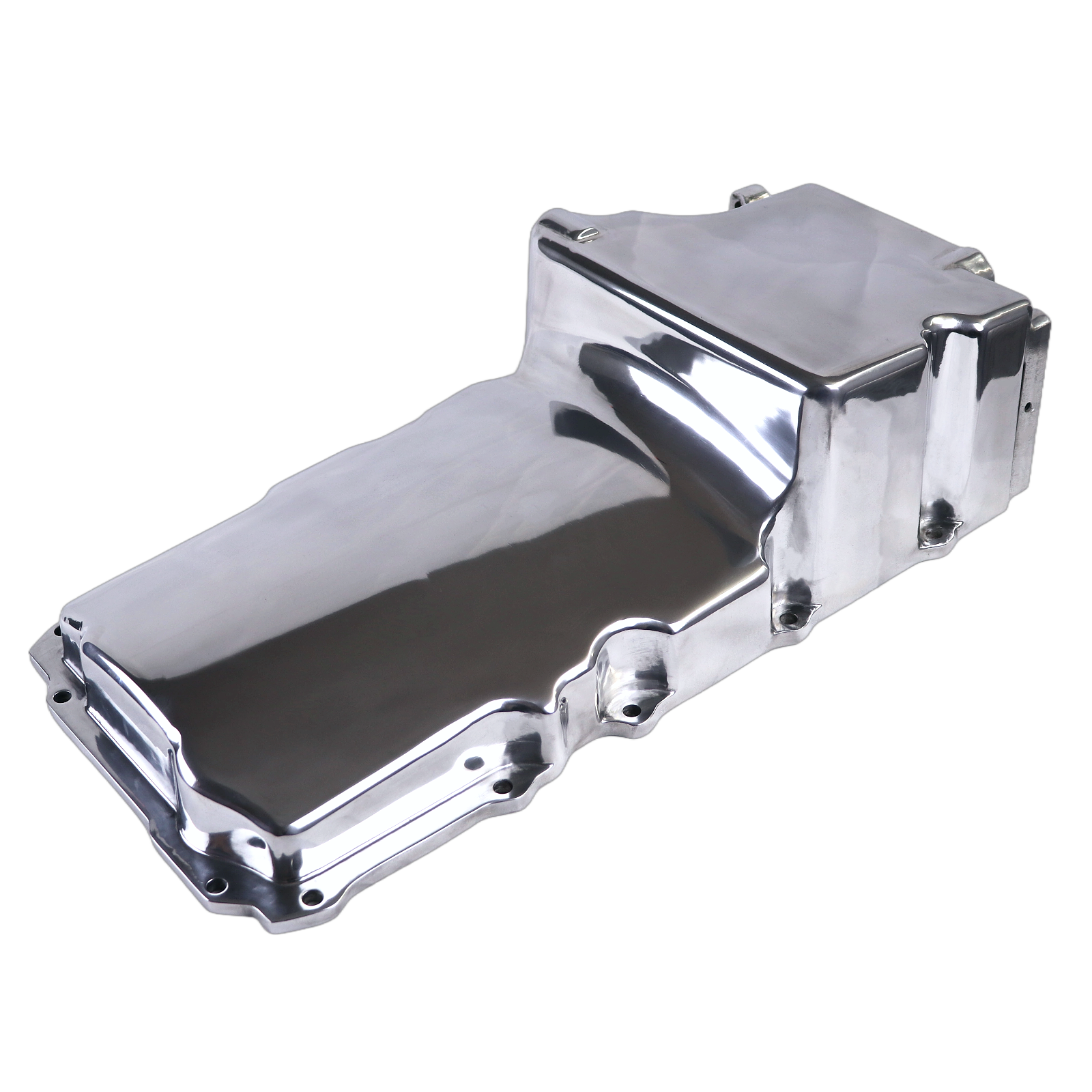

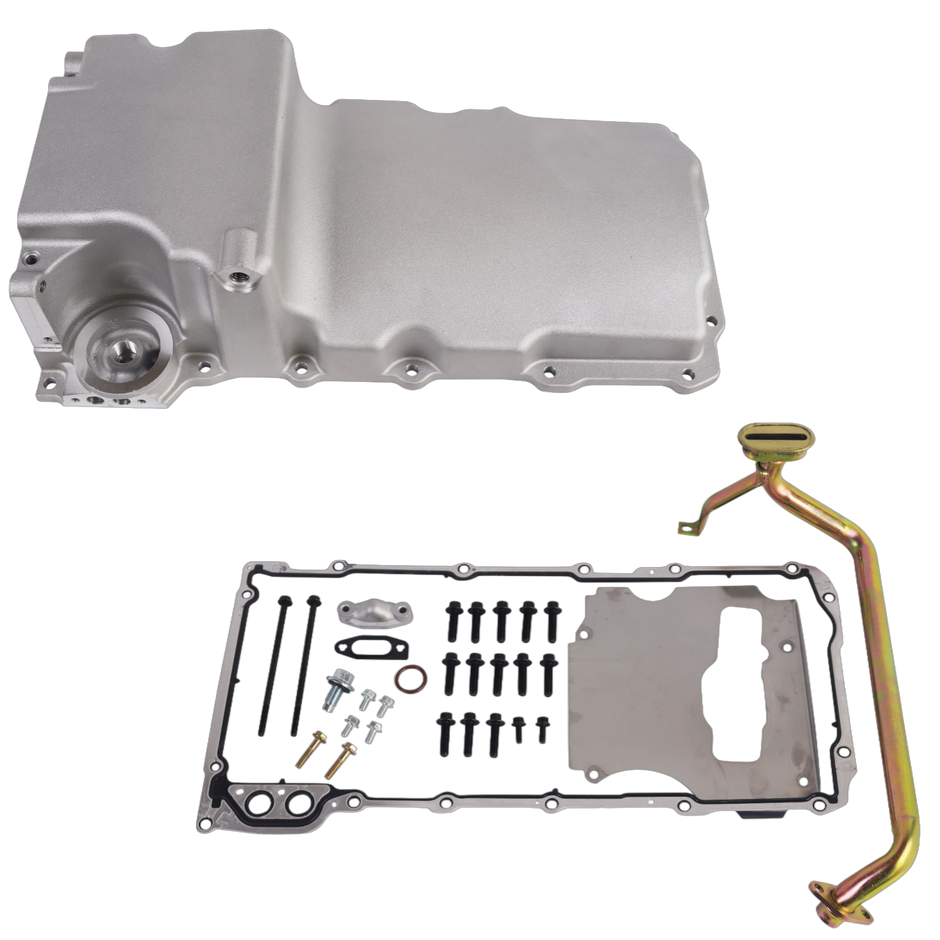

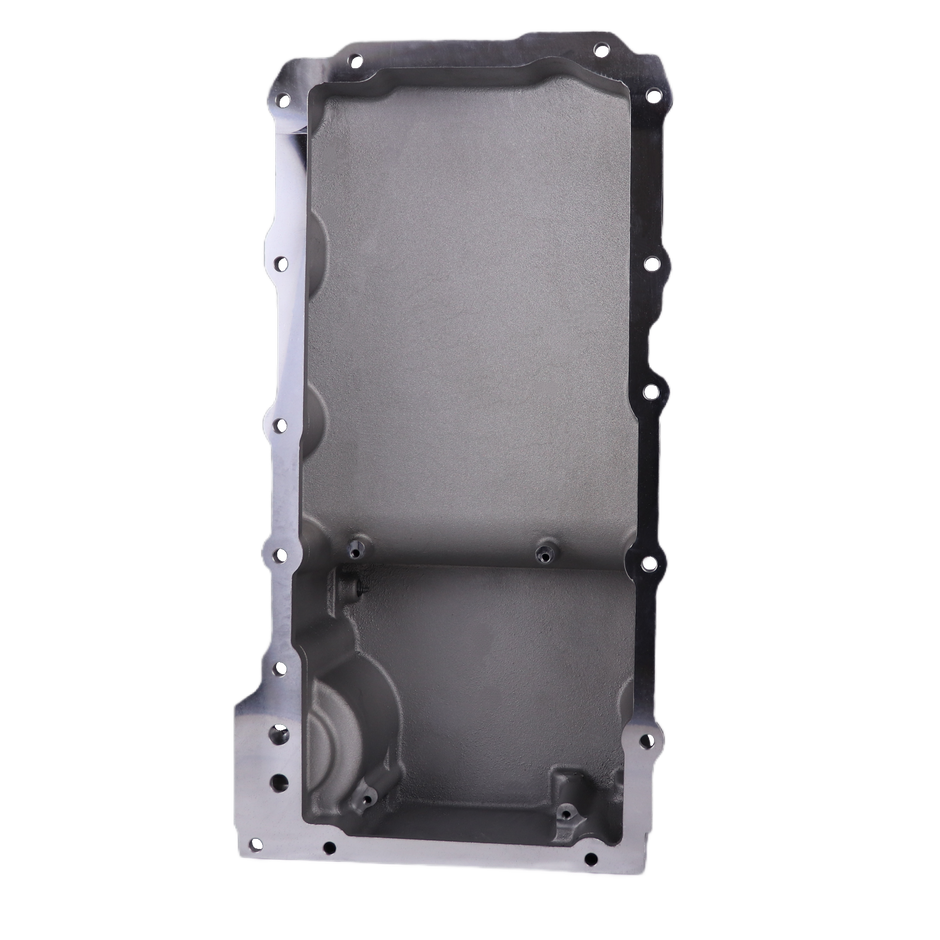

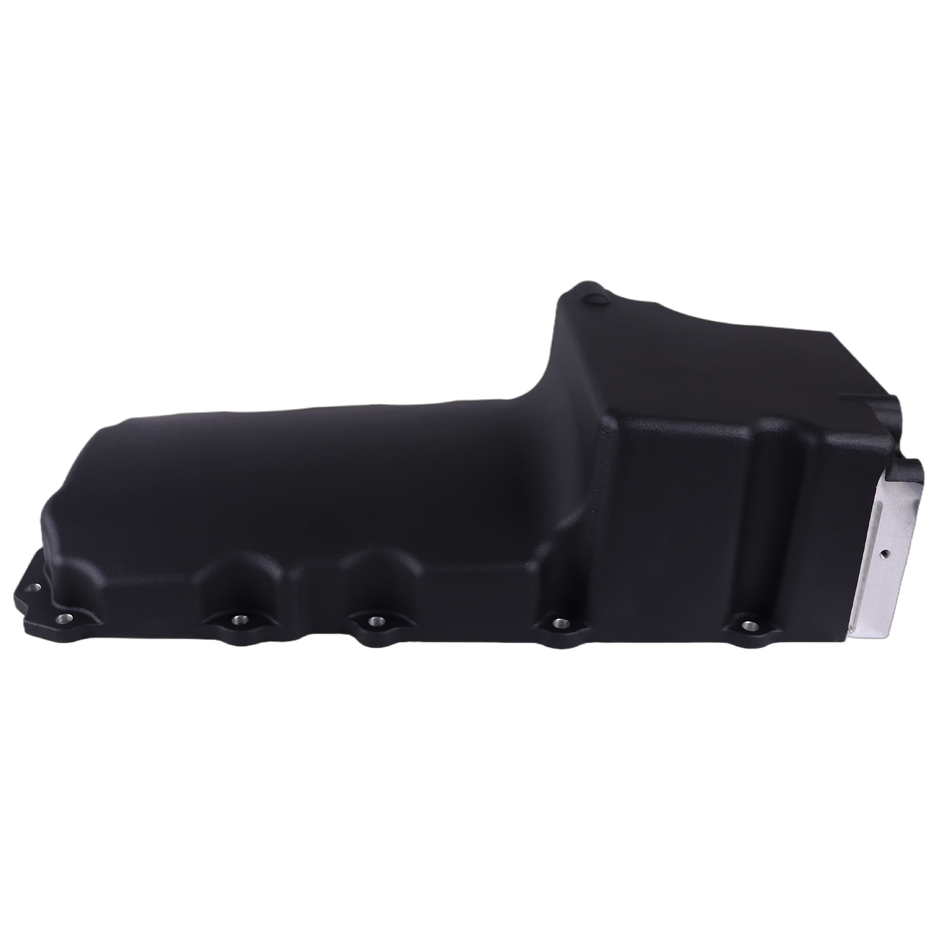

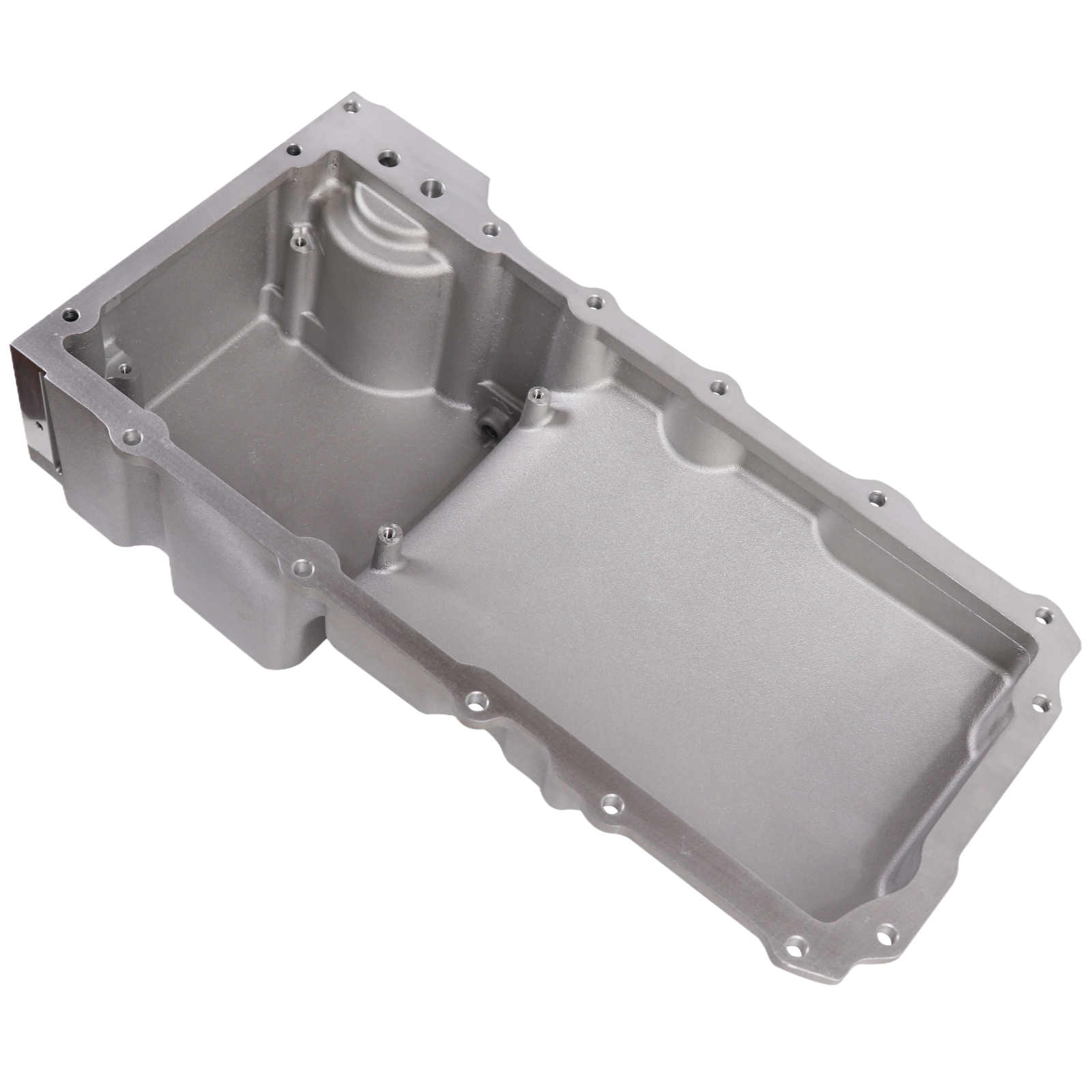

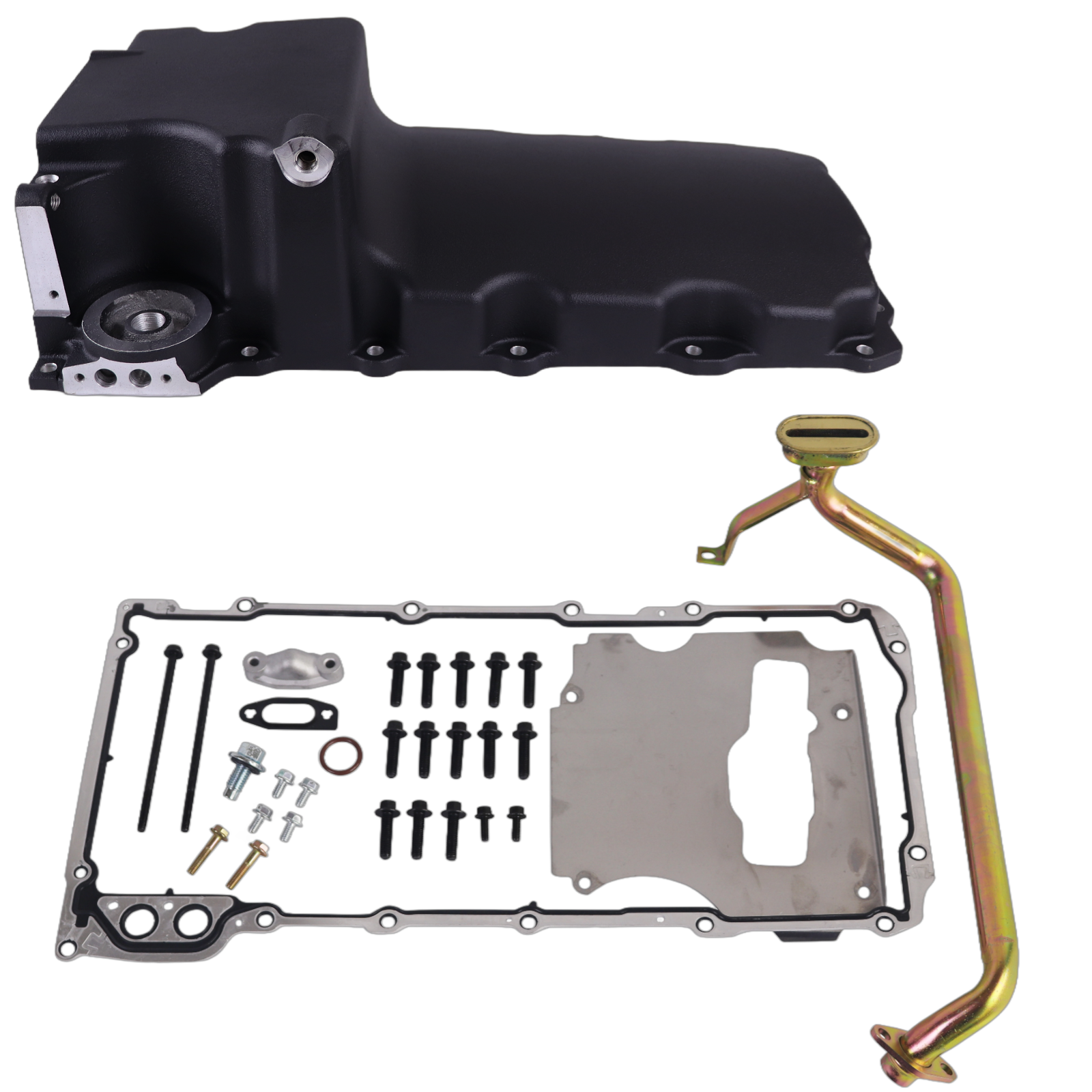

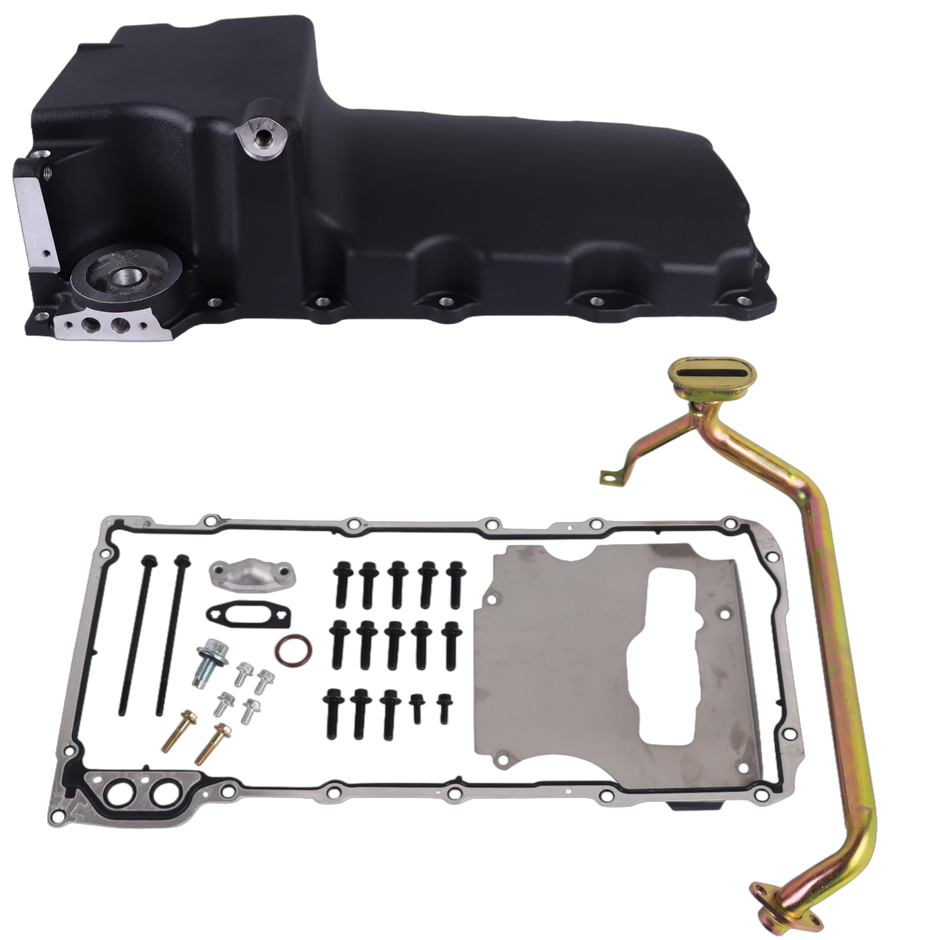

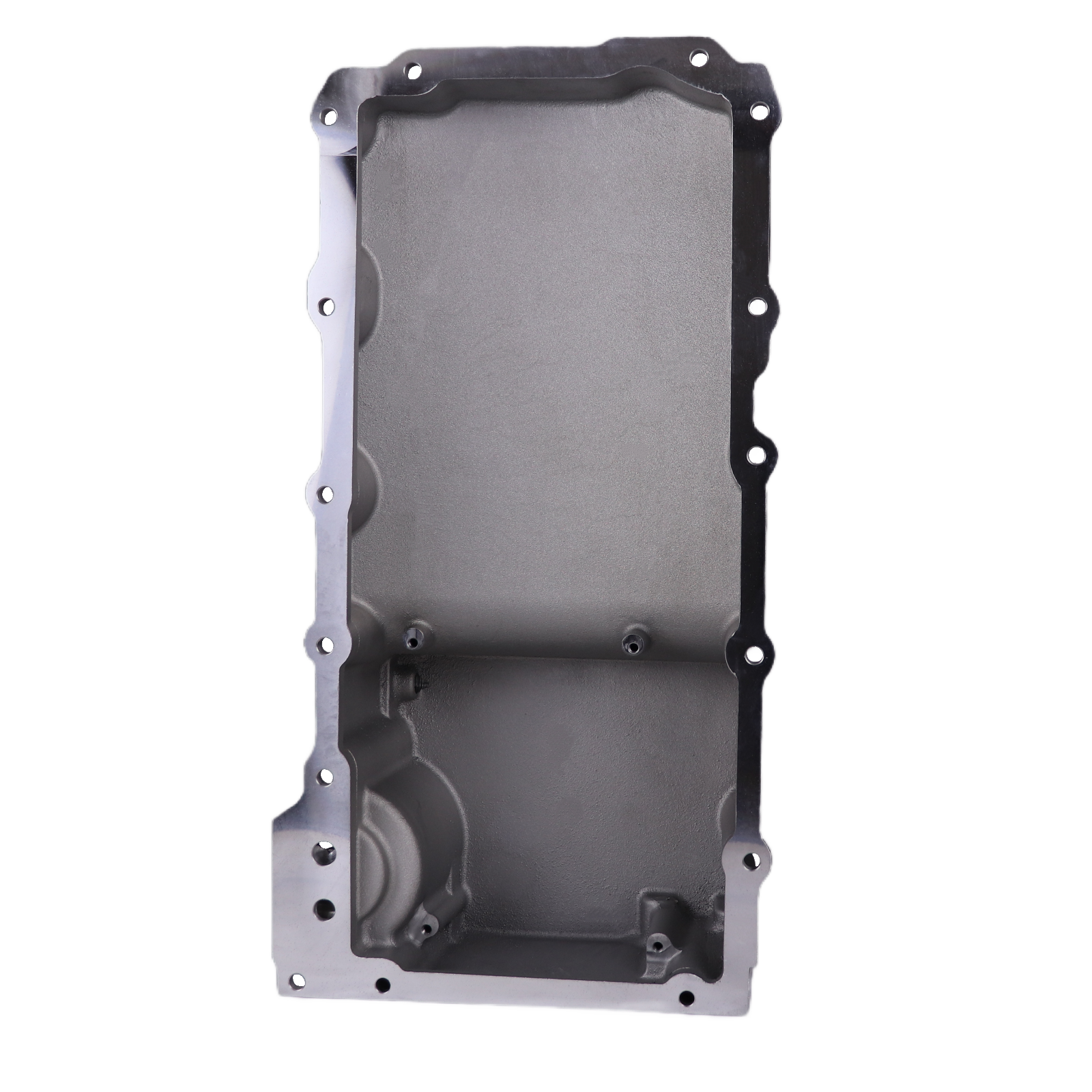

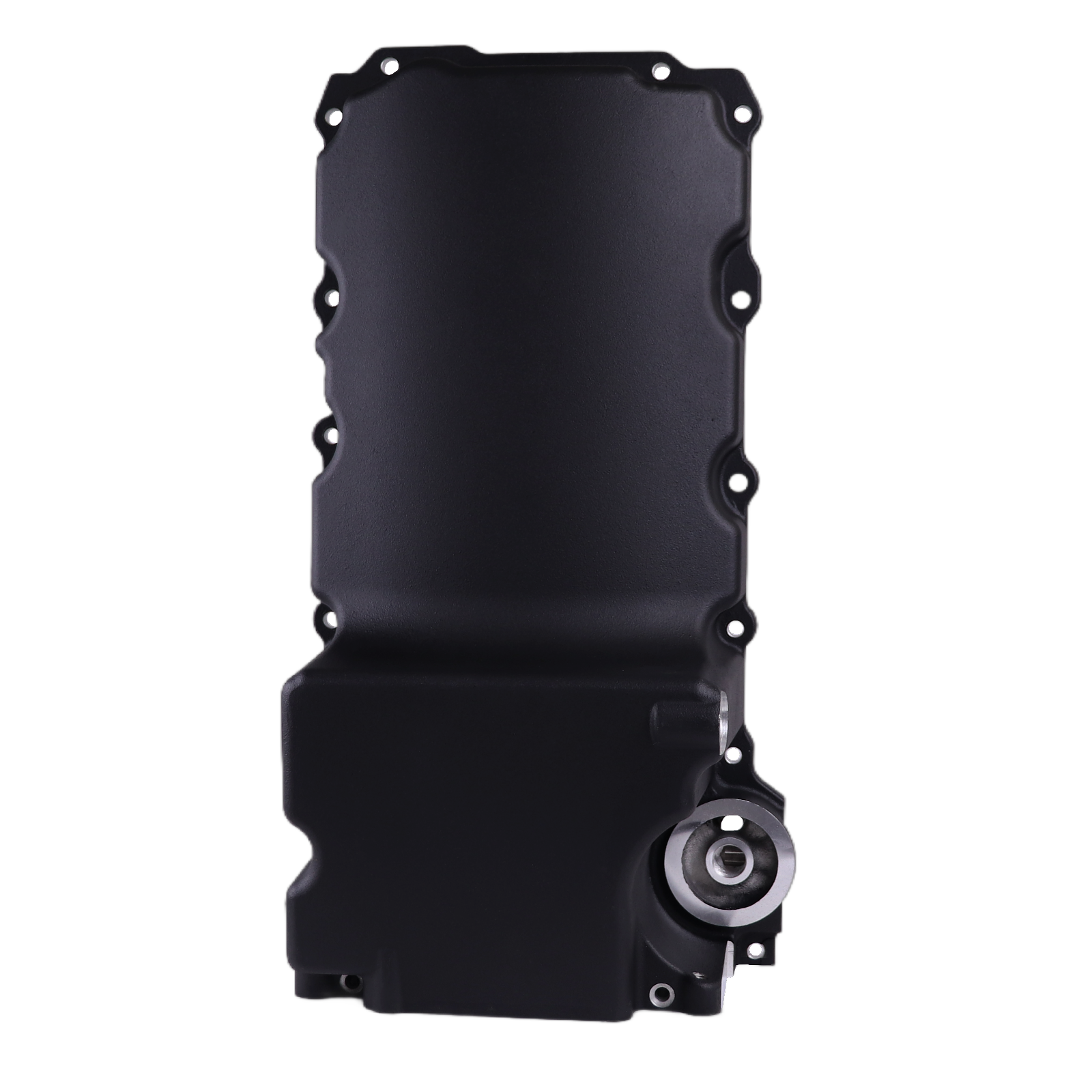

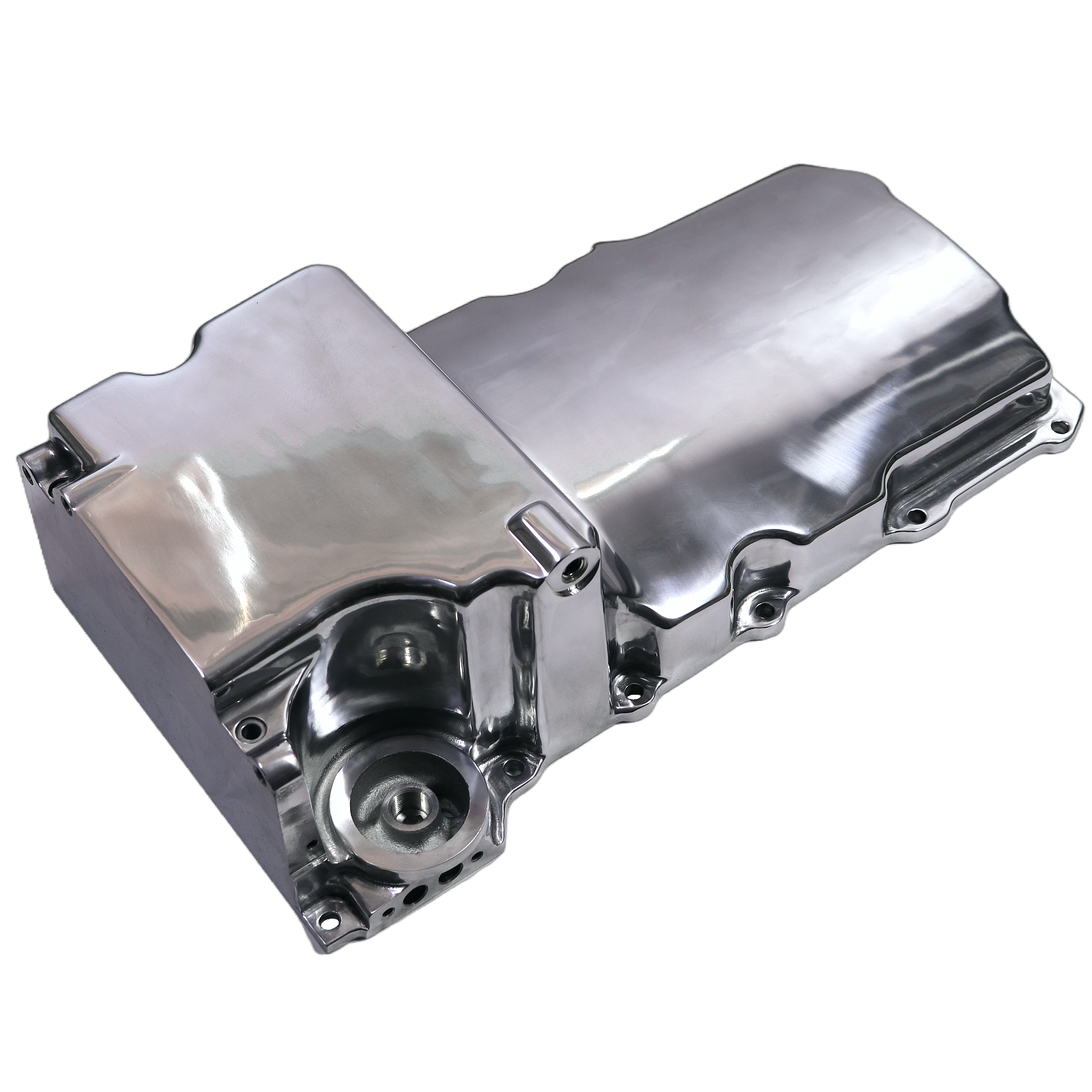

Haytalras 302-1 GM LS Swap Low-Profile Rear Sump Oil Pan Kit 1955-1987 4.8L-6.2L

Fitment note: Please check compatibility carefully before placing an order.

Description:

- Haytalras retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.

- Notes:Engine will take a total of 6 quarts of oil including the stock filter. Engine location may need to be adjusted (up/down or fore/aft) for proper clearance.

- Notes:Please Check the Compatibility Carefully before Placing an Order.

Specifications

Specification:

Part Number: 302-1,81074

Part Type: Oil Pans

Sump Style: Wet

Maximum Stroke with OE Rod: 4.250 in.

Oil Pan Depth (in): 5.890 in.

Sump Location: Rear

Oil Pan Capacity: 5.50 quarts

Gaskets Included: Yes

Hardware Included: Yes

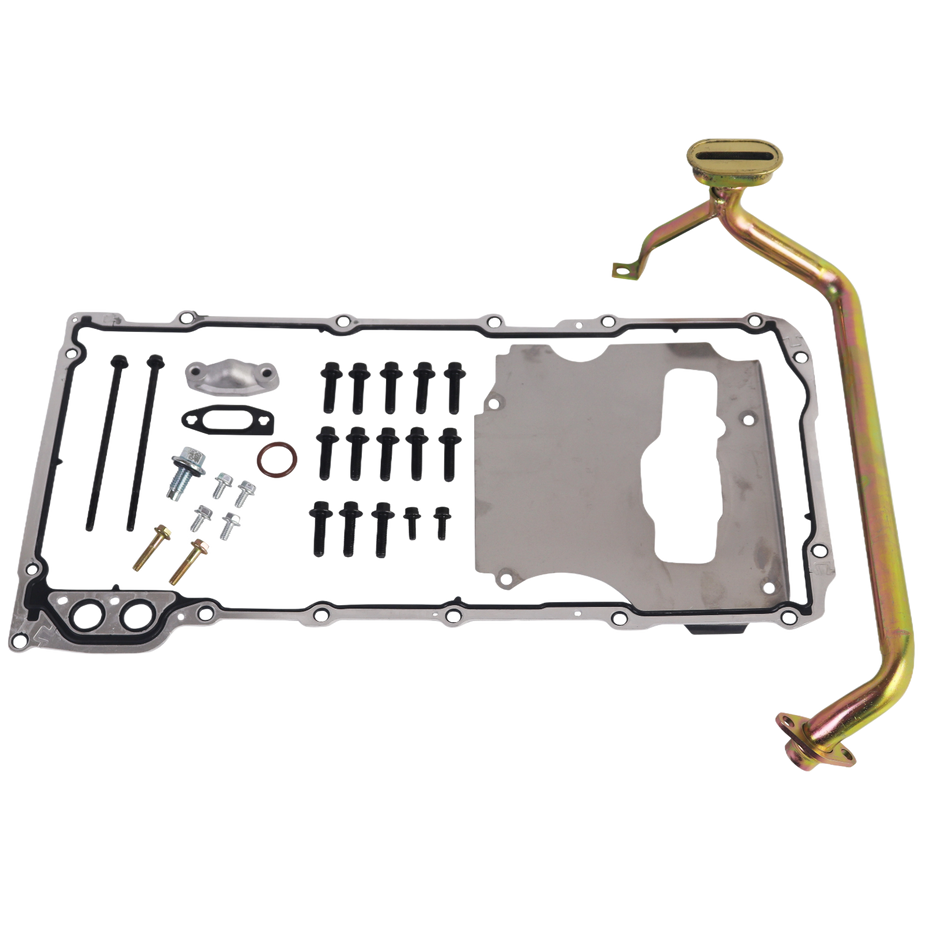

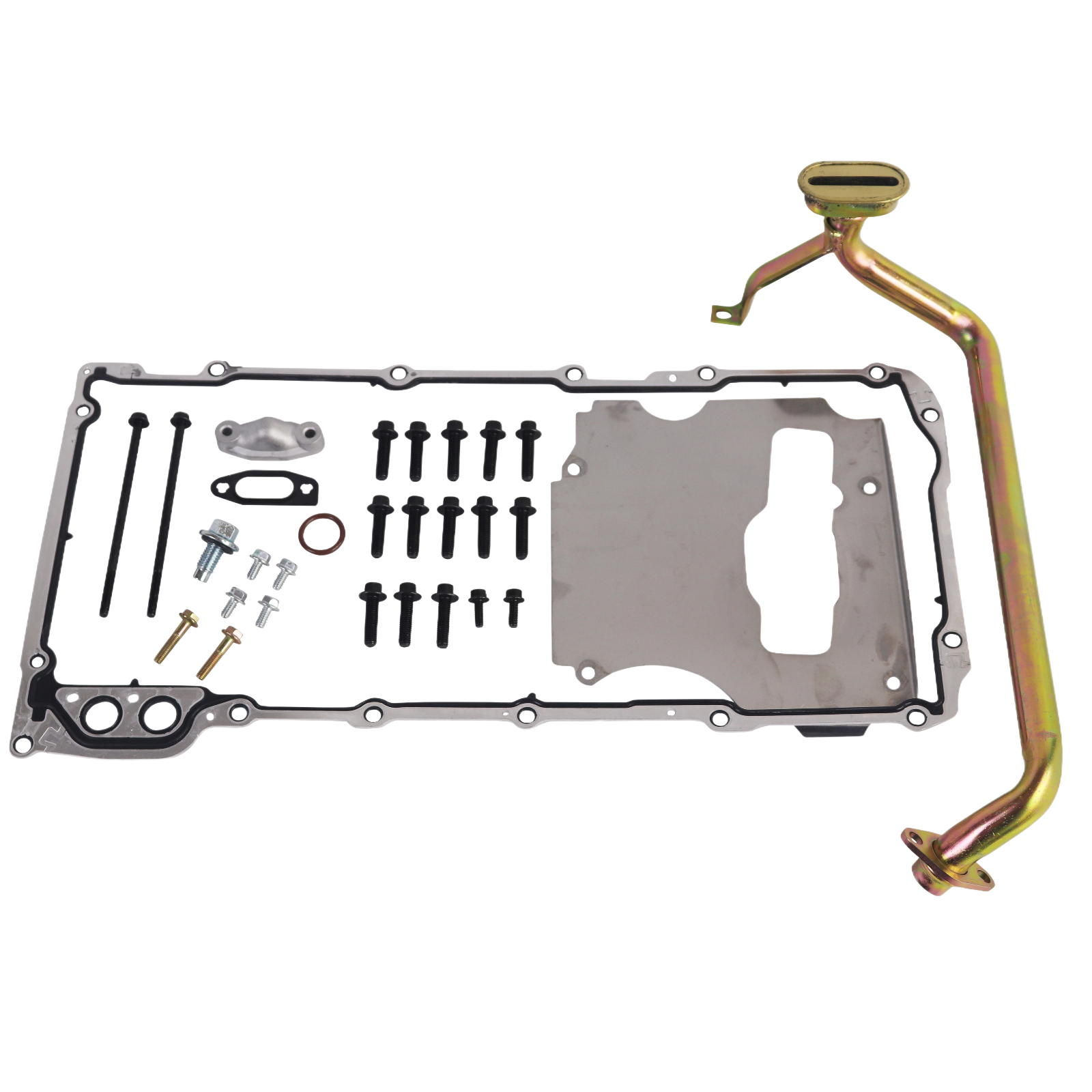

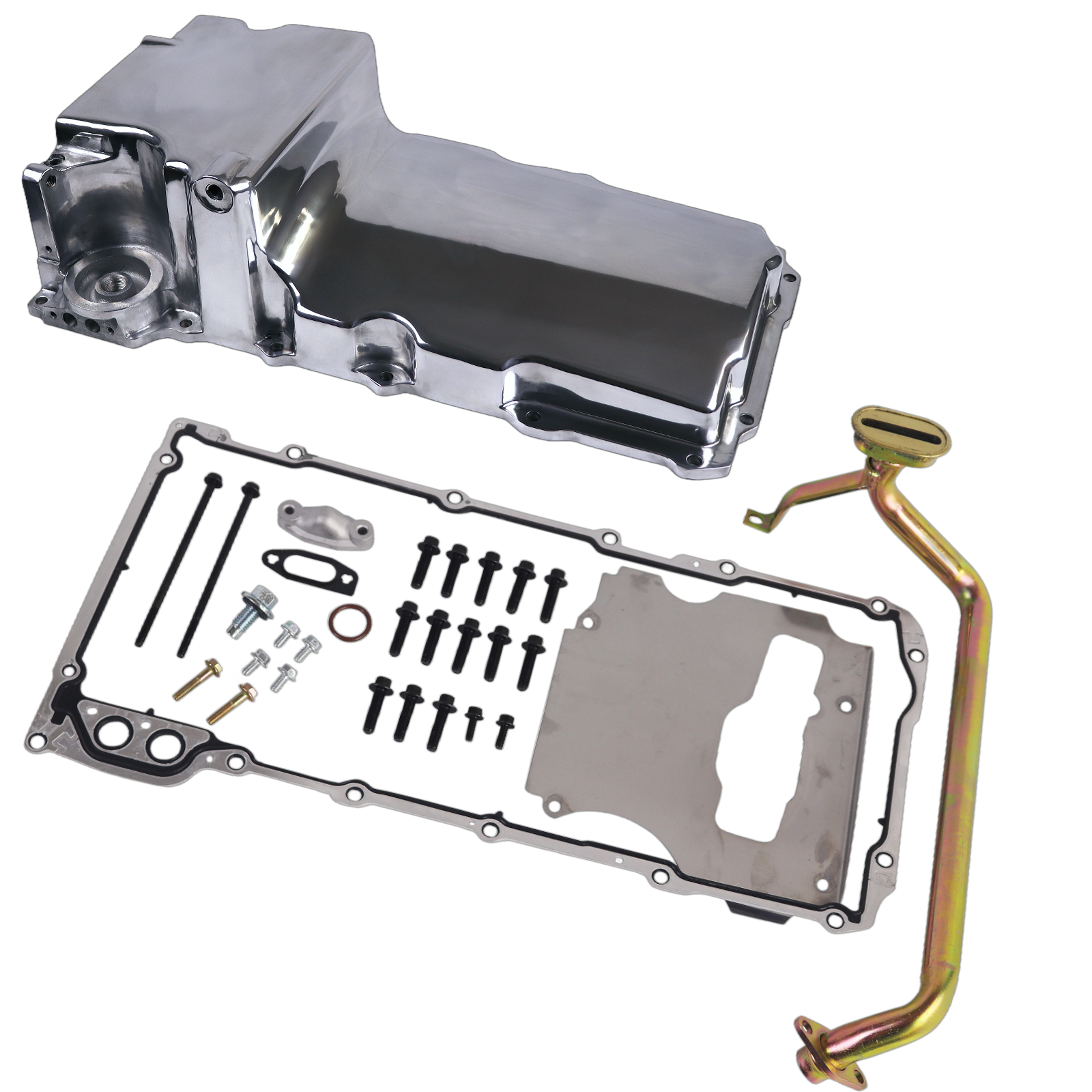

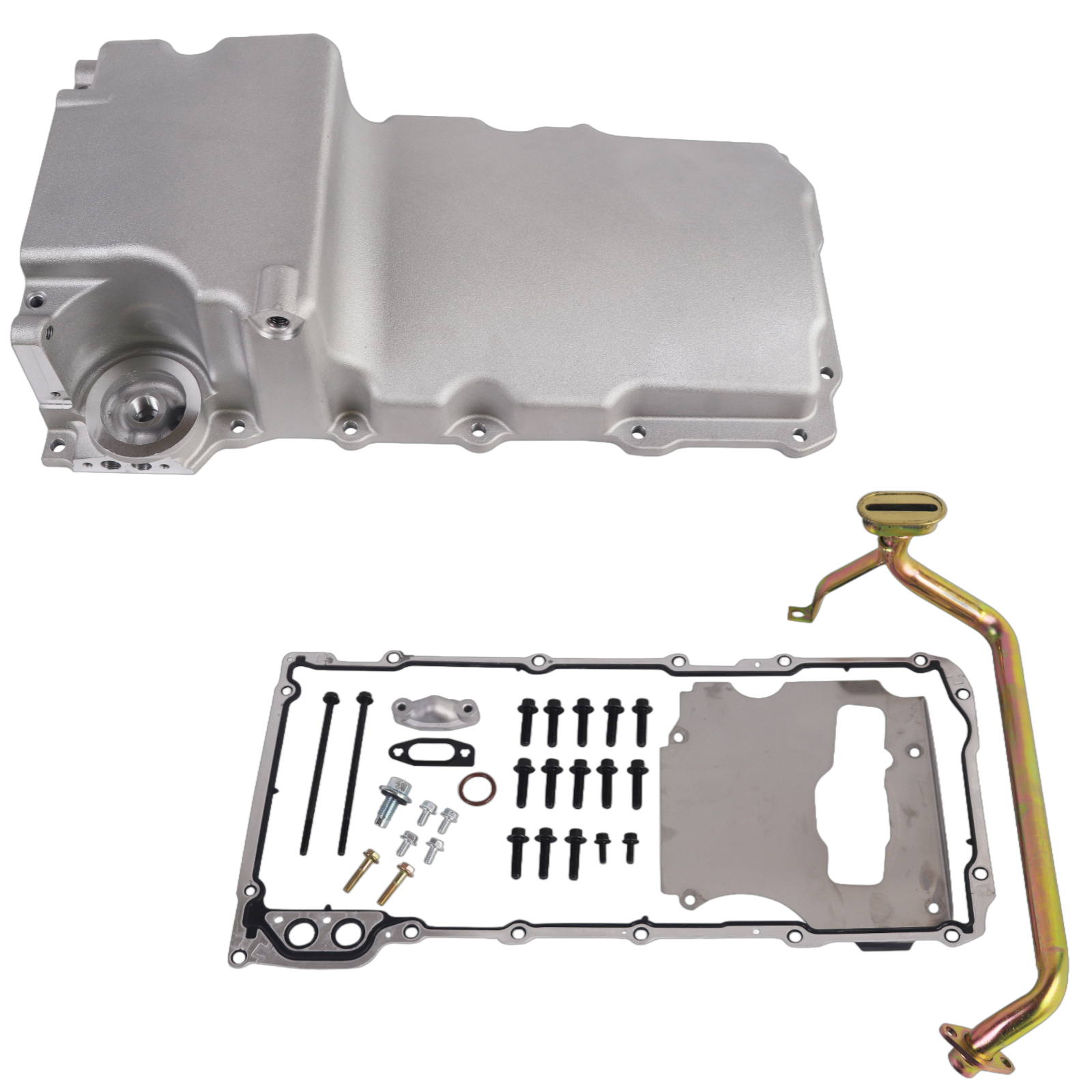

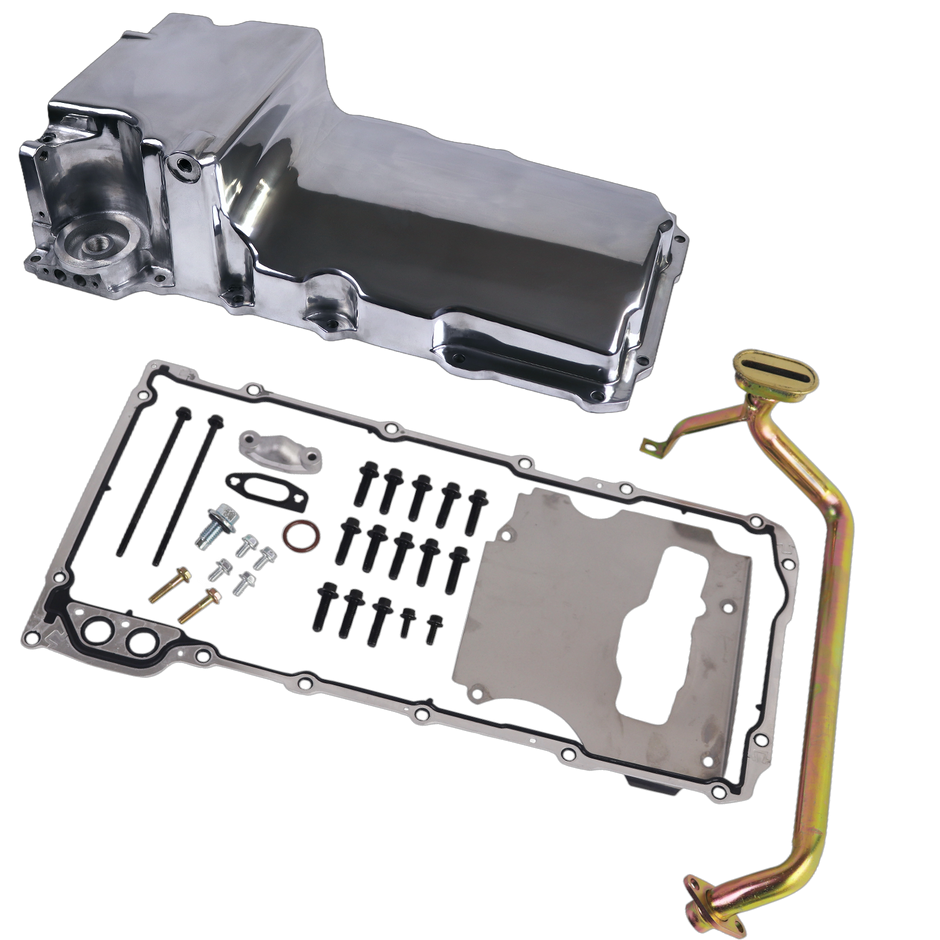

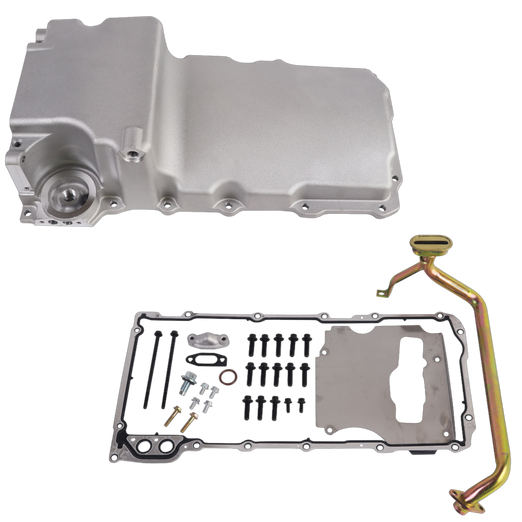

Package included: 1x Oil Pan

1x Oil Pan Gasket

1x Sump Baffle

1x Pick-Up Tube

1x Sump Plug

1x Oil Filter Stud

1x Oil Passage Cover

1x O-Ring

1x Screw Mounting Kit

Vehicle Information:

- Compatible with 1955-1987 GM/ Muscle Car/ Classic Car/ Trucks

- Compatible with LS Gen III and GEN IV V8 LS1 LS2 LS3 LS6 LSX 4.8L, 5.3L, 5.7L, 6.0L, 6.2L Engine
