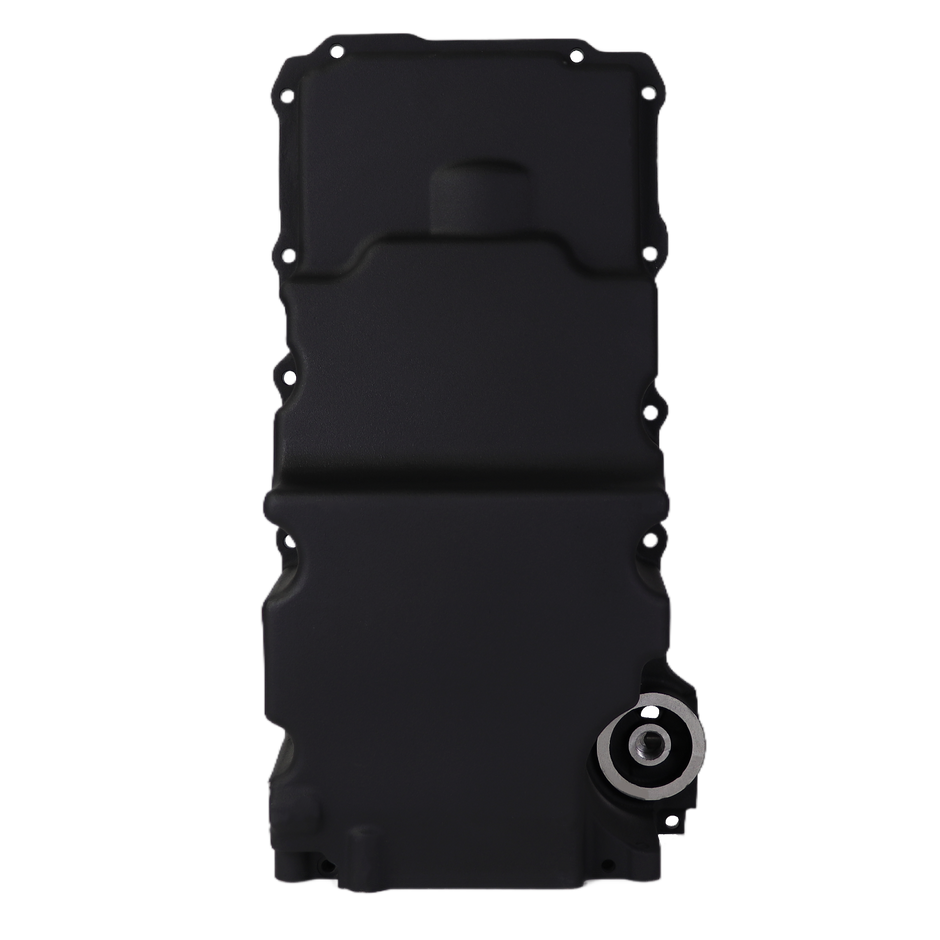

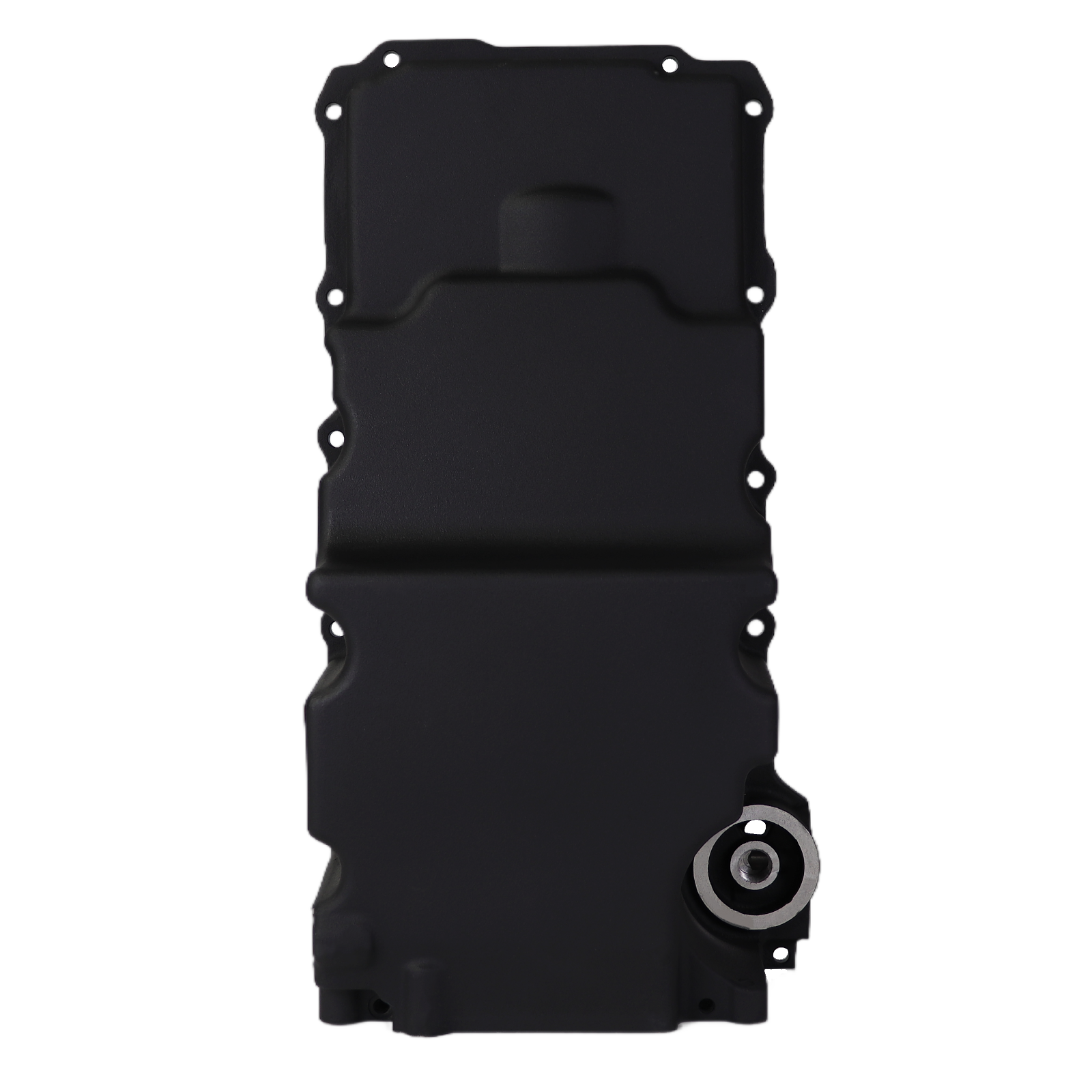

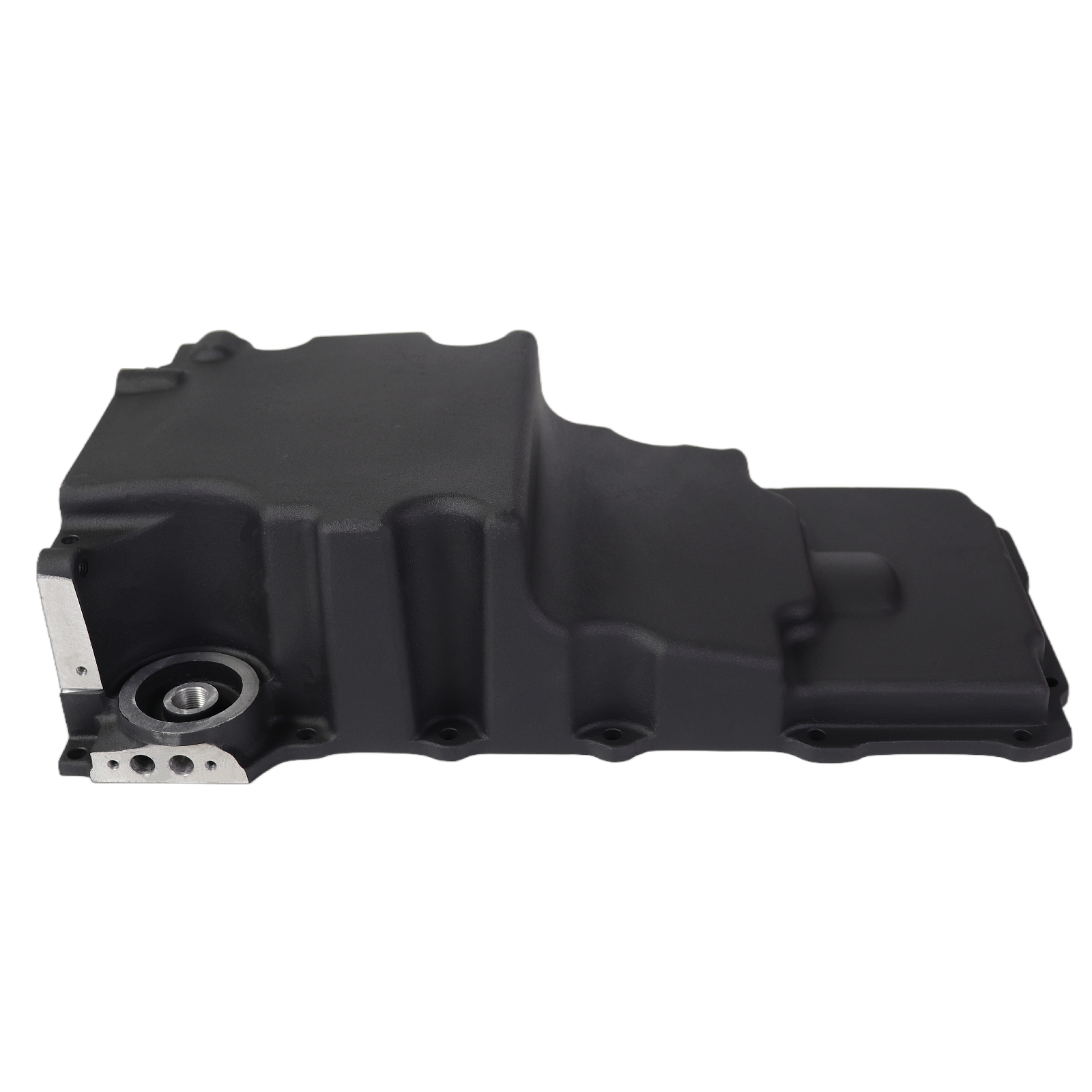

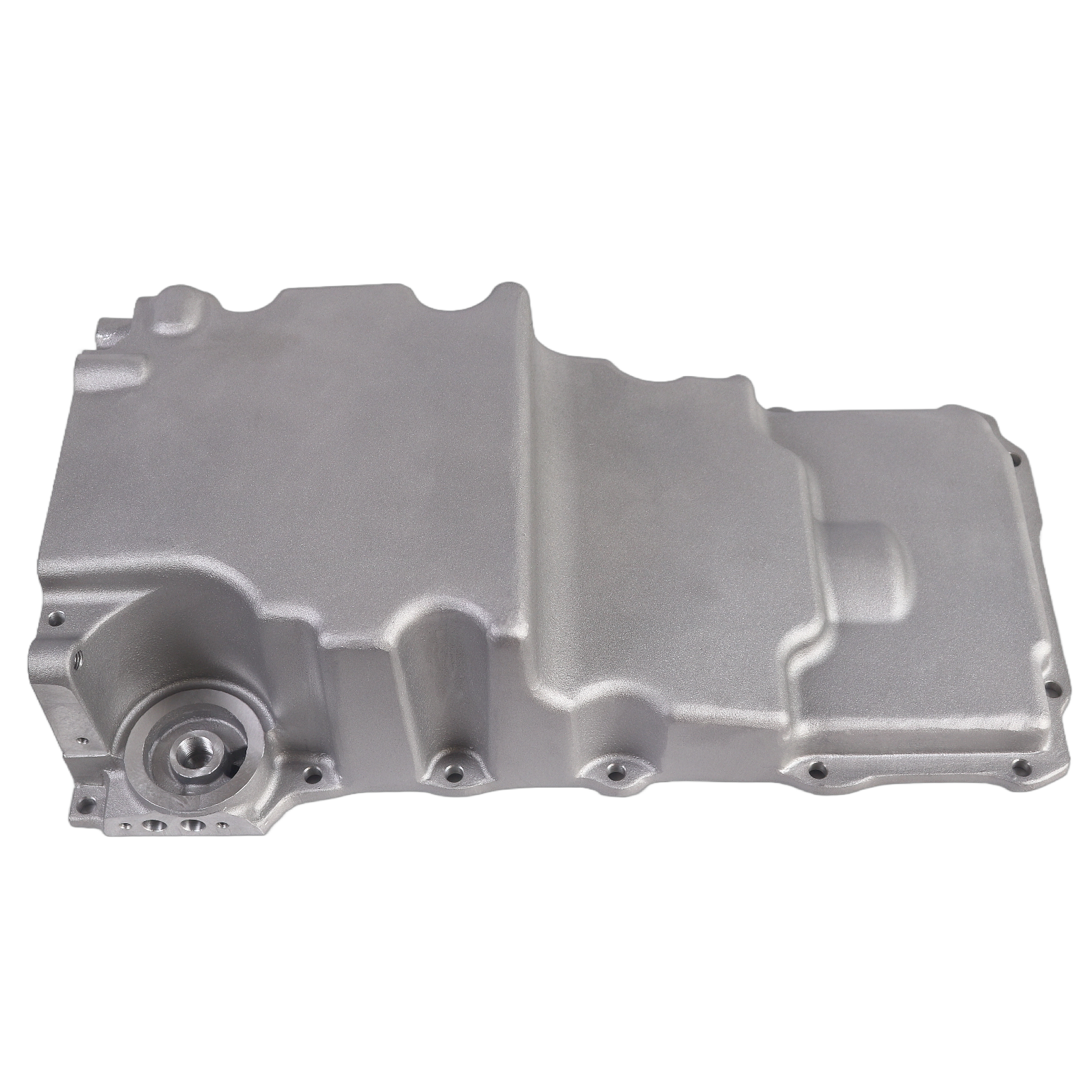

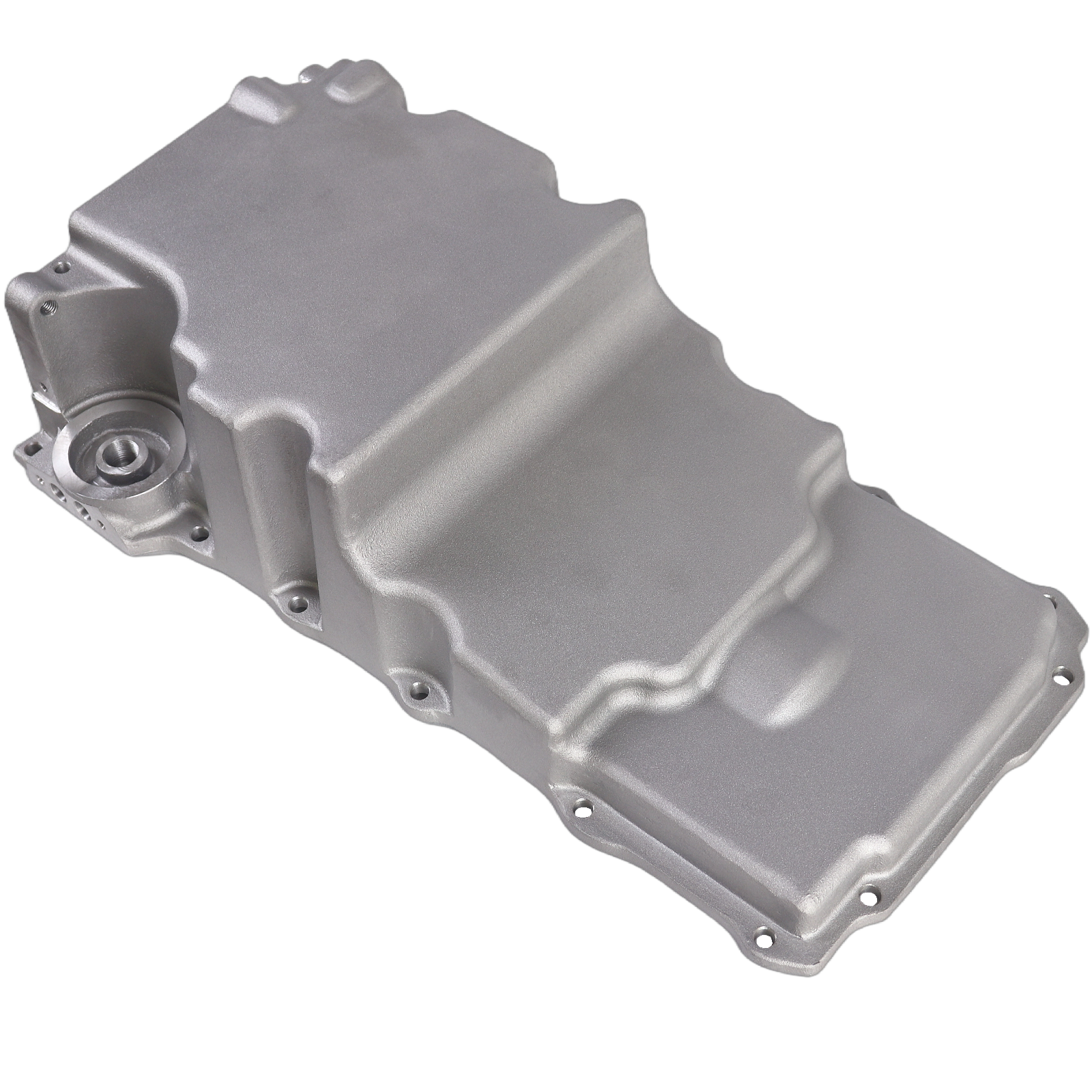

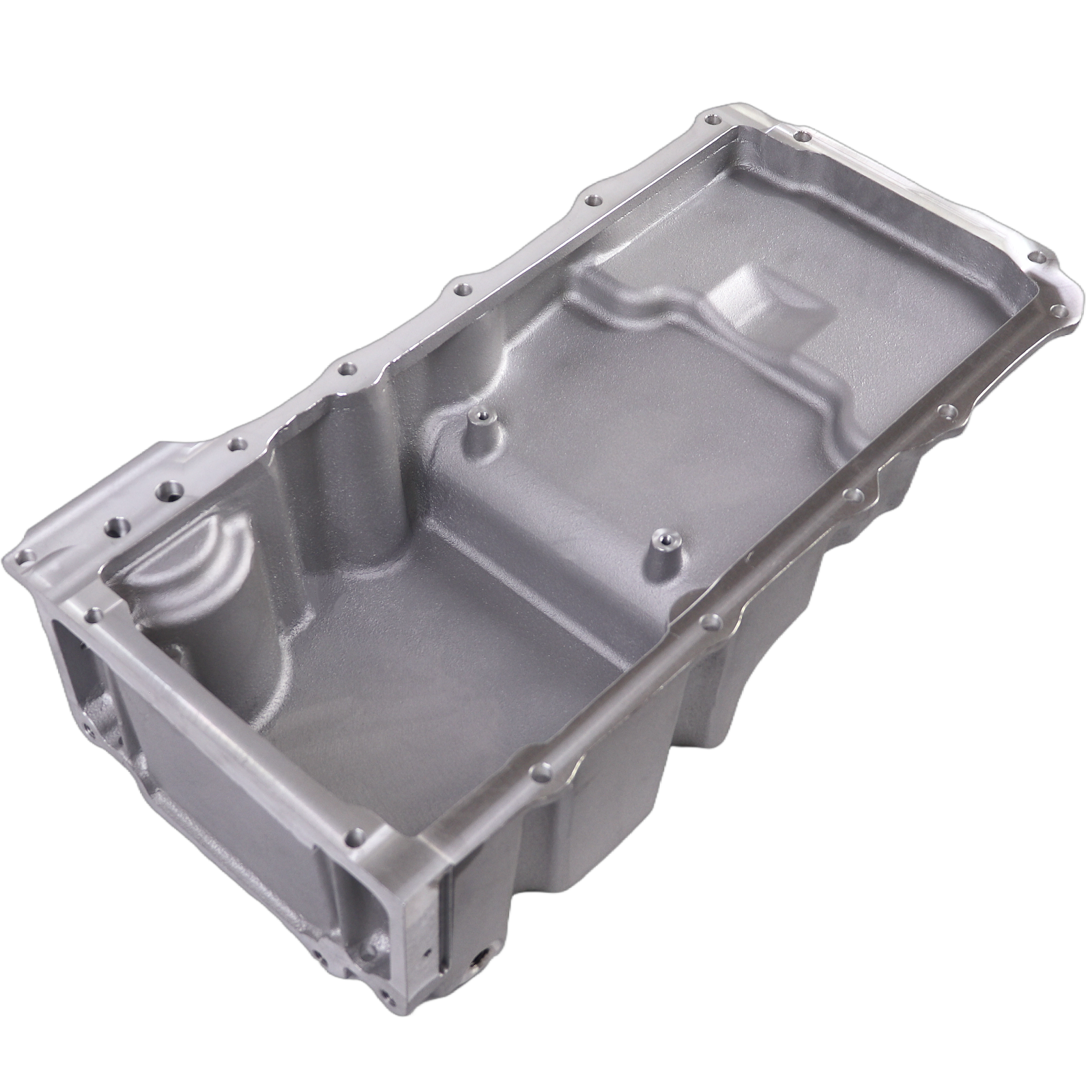

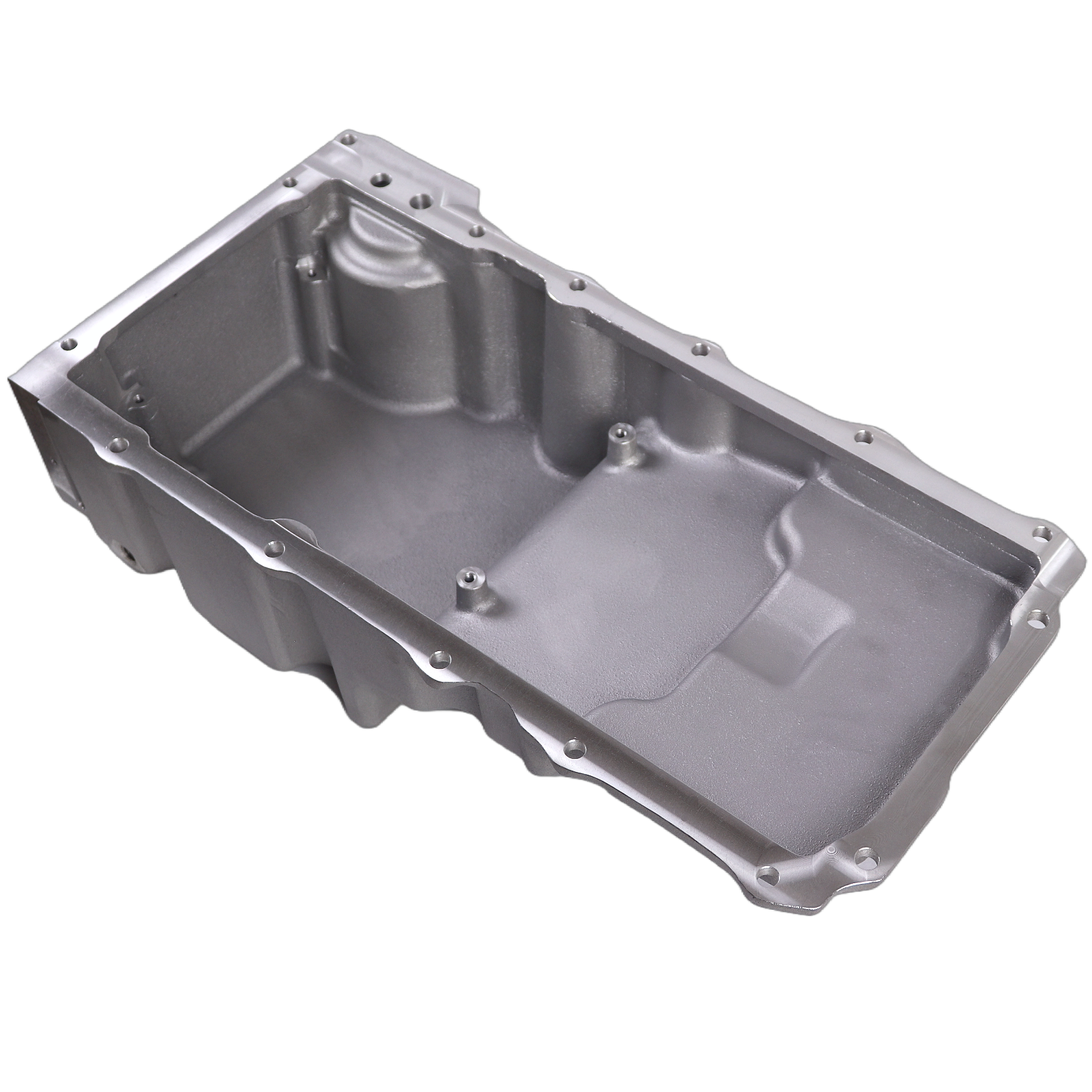

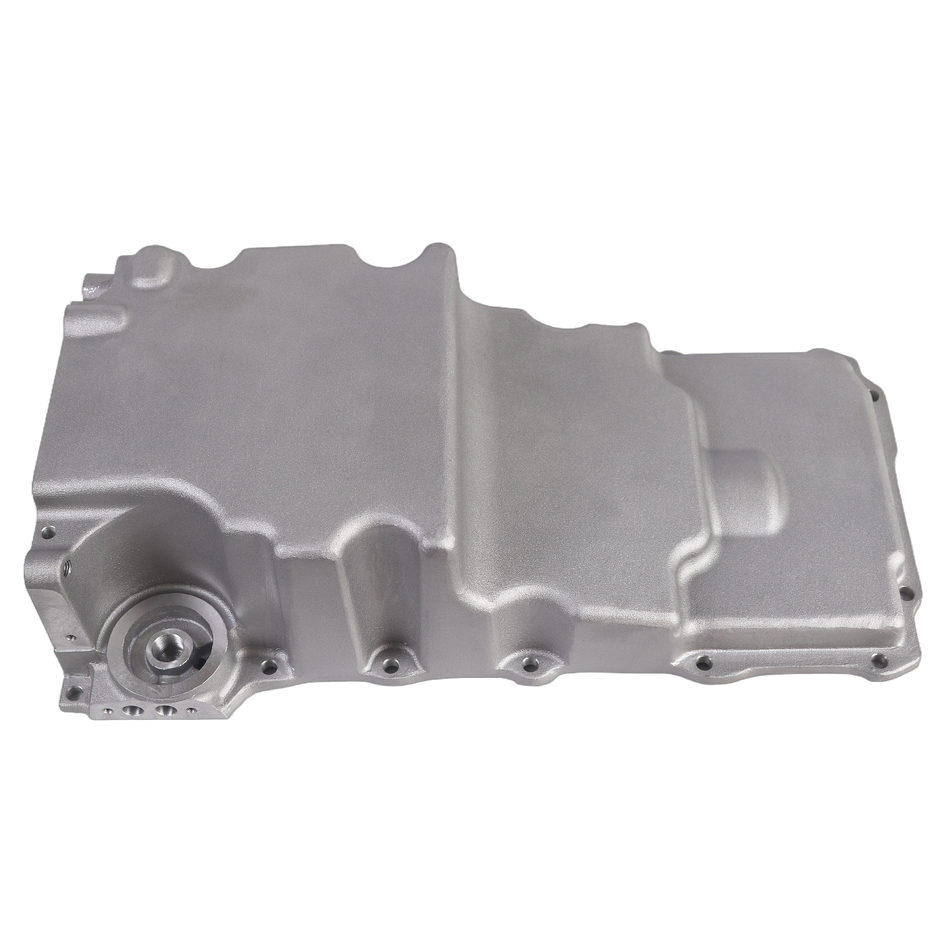

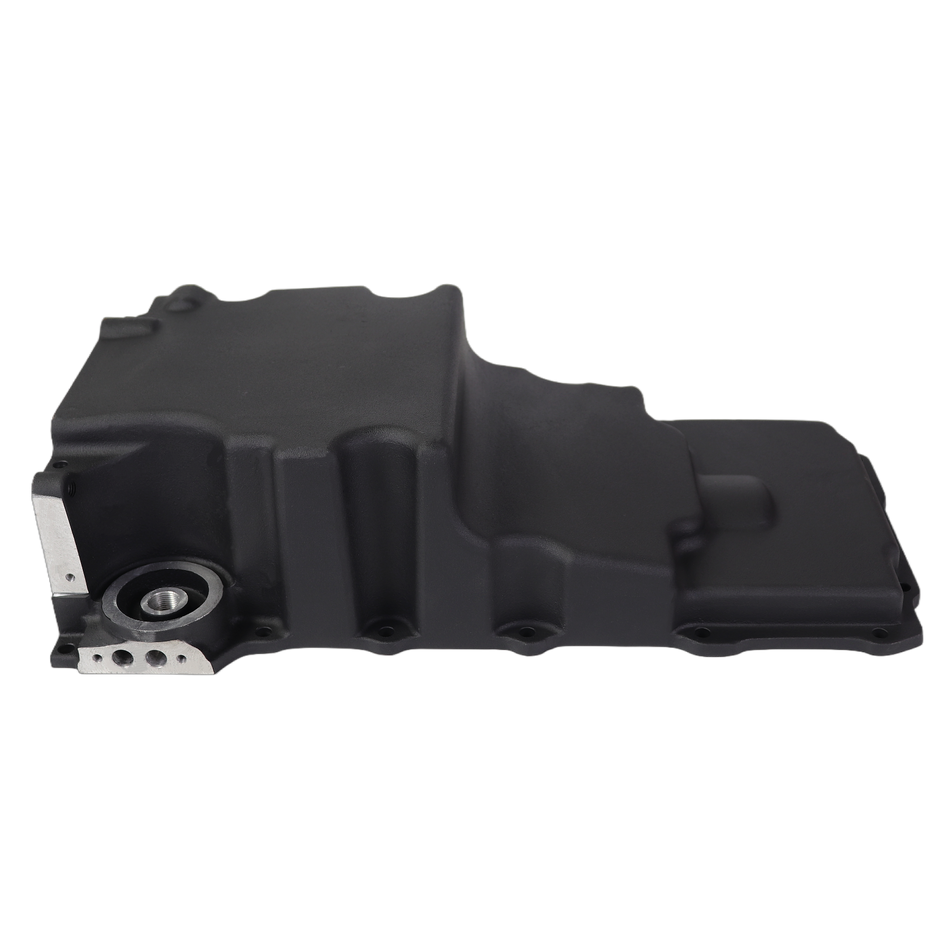

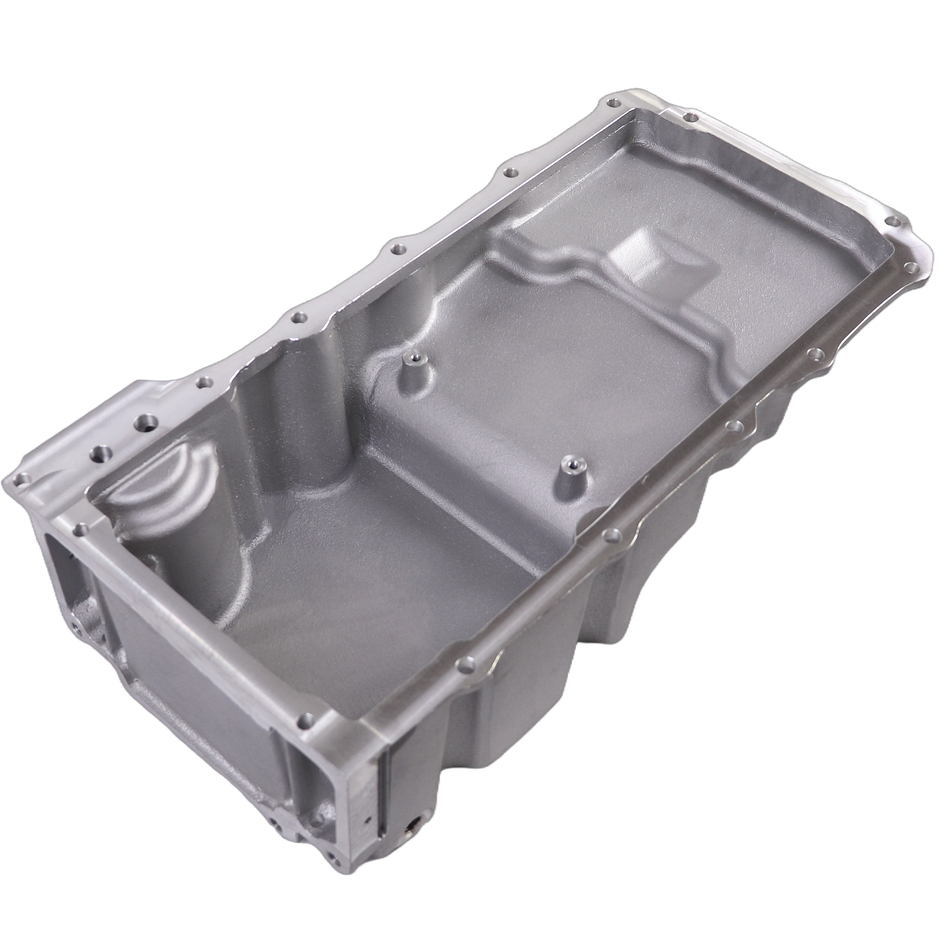

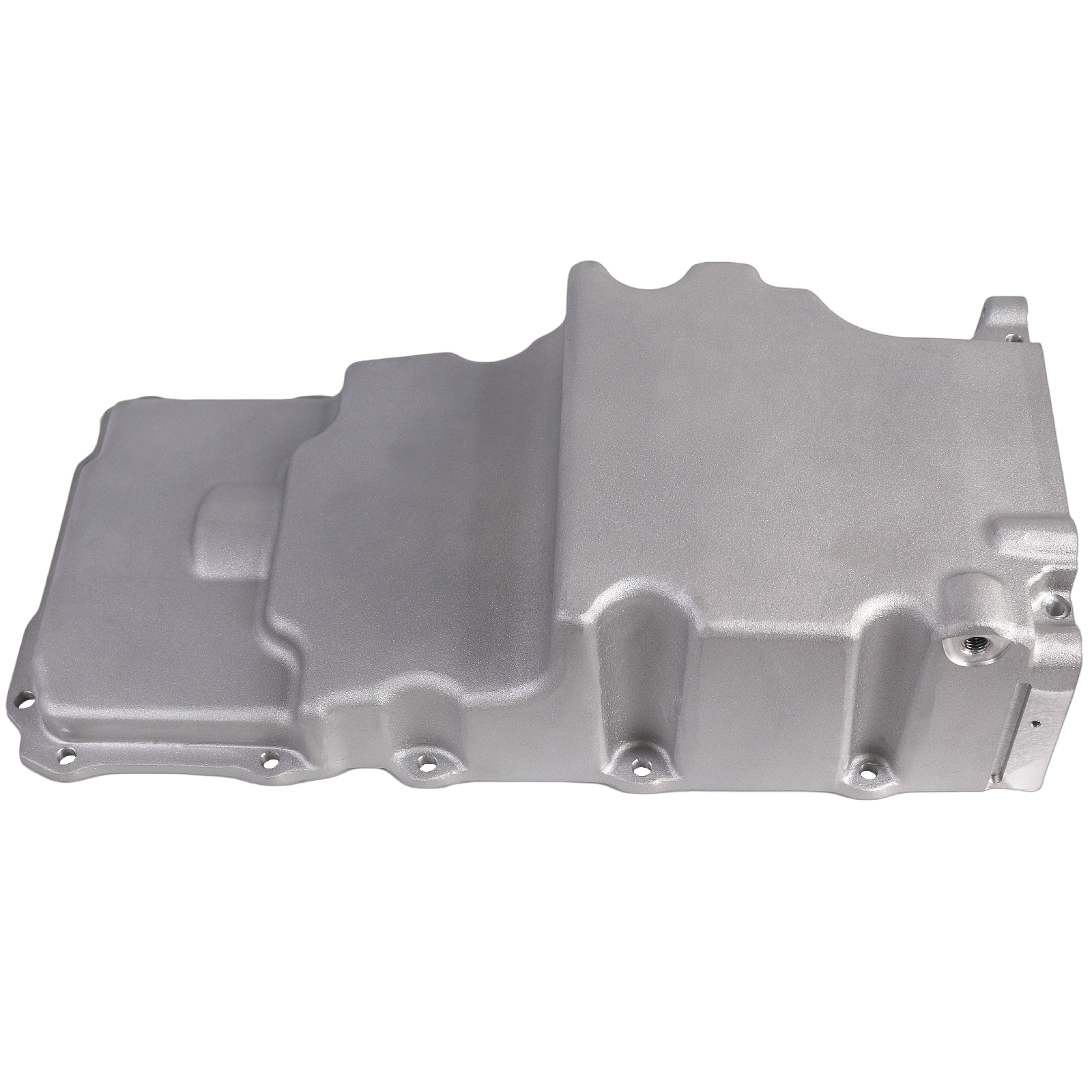

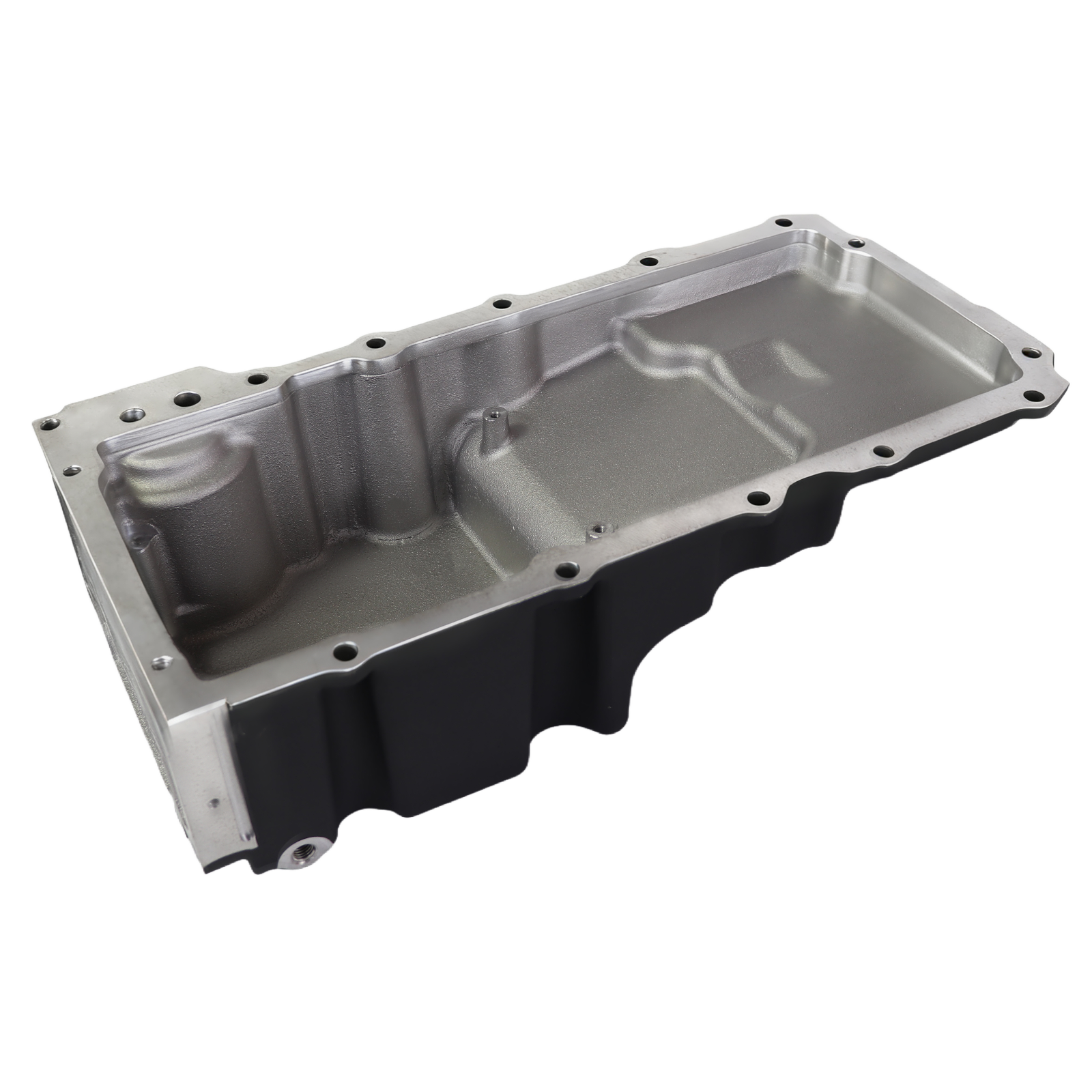

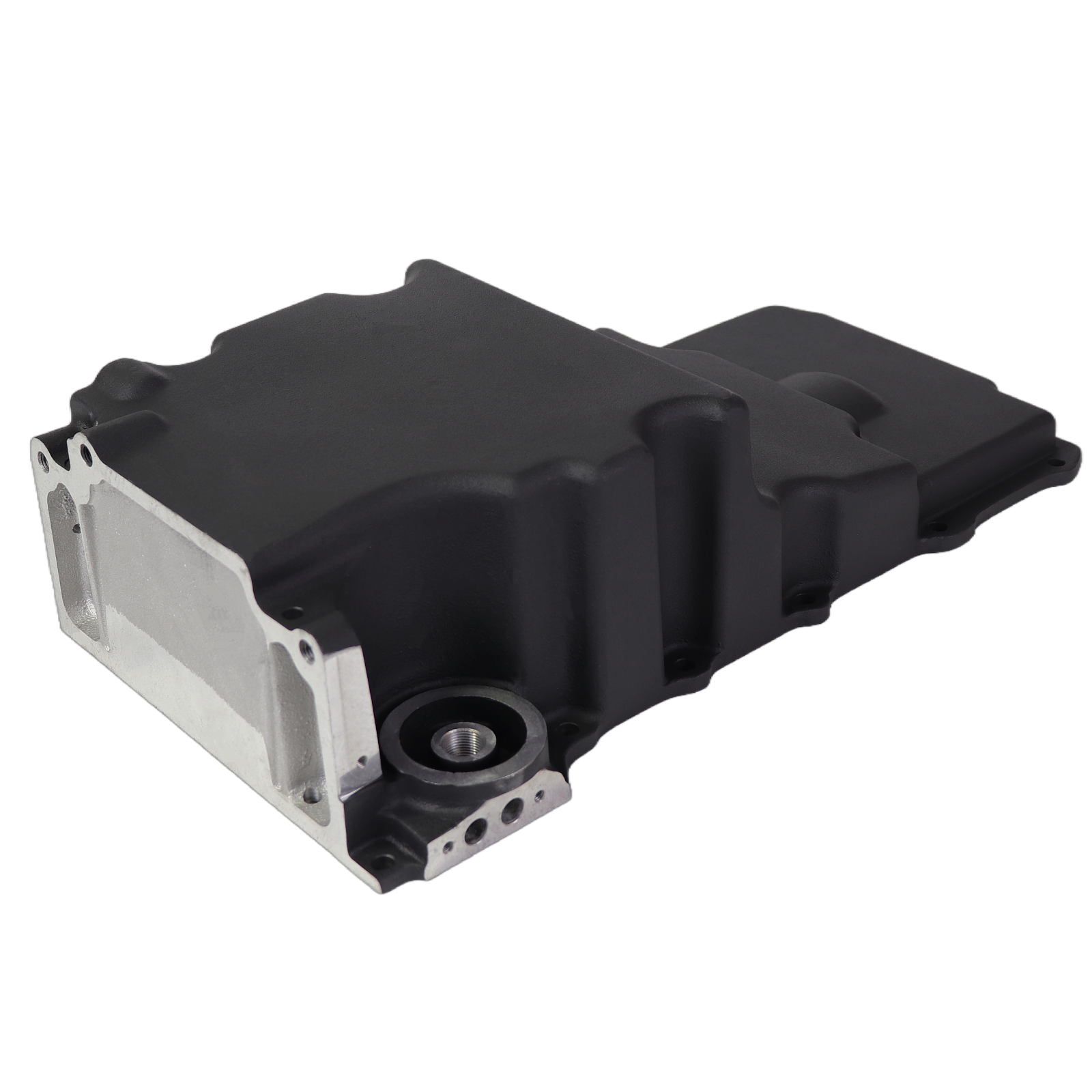

Haytalras 302-2 GM LS Swap Low-Profile Rear Sump Oil Pan Kit 4.8L-6.2L

Fitment note: Please check compatibility carefully before placing an order.

Description:

- Haytalras retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.

- Notes:Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application.

- Notes: Not fits LS7 or LS9 dry sump applications.

- Notes:Please Check the Compatibility Carefully before Placing an Order.

Specifications

Specification:

Part Number: 302-2,81073

Part Type: Oil Pans

Sump Style: Wet

Sump Depth: 5.46".

Sump Oil Capacity: 5.7 Quarts.

Total Oil Capacity: 6.2 Quarts with Stock Filter

Maximum Stroke with OE Rod: 92mm(3.62 in.)

Sump Location: Rear

Gaskets Included: Yes

Hardware Included: Yes

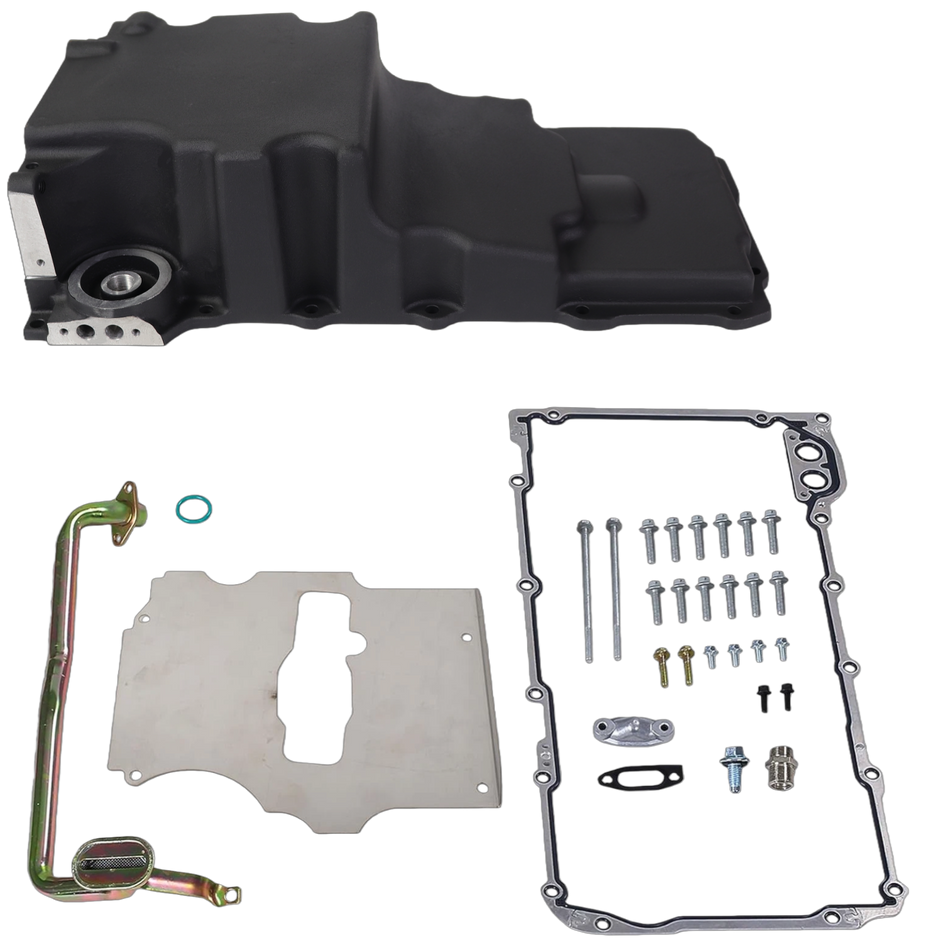

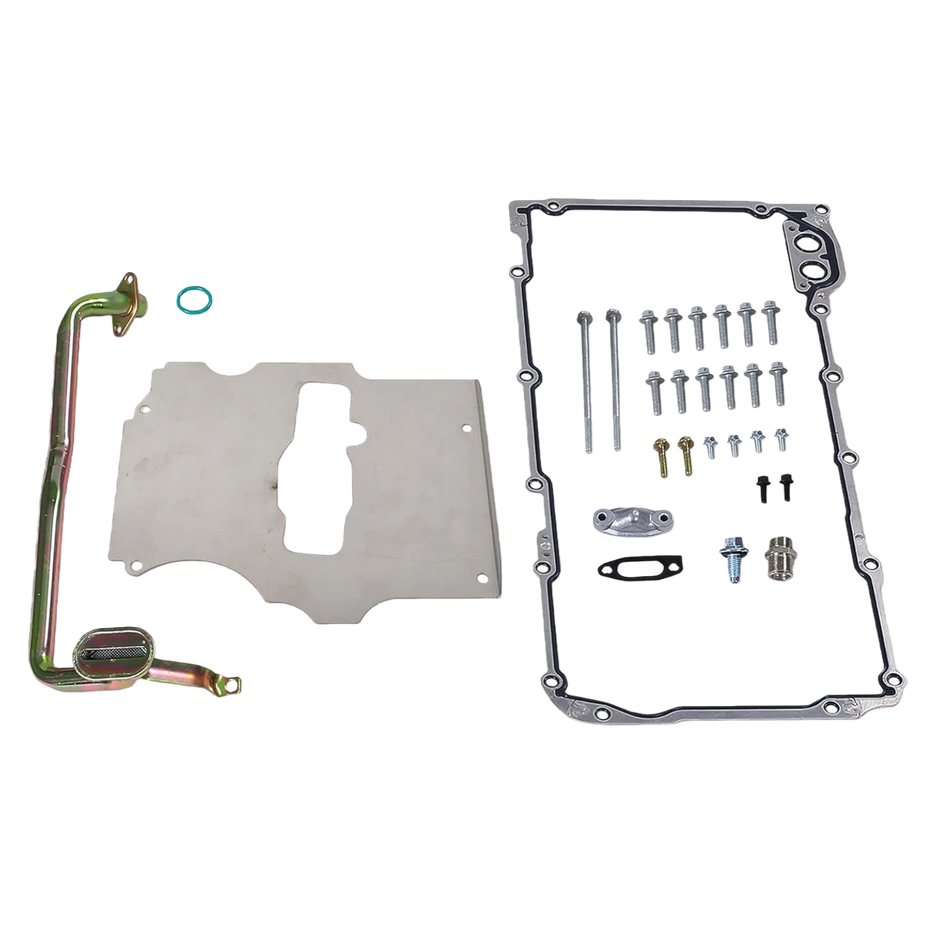

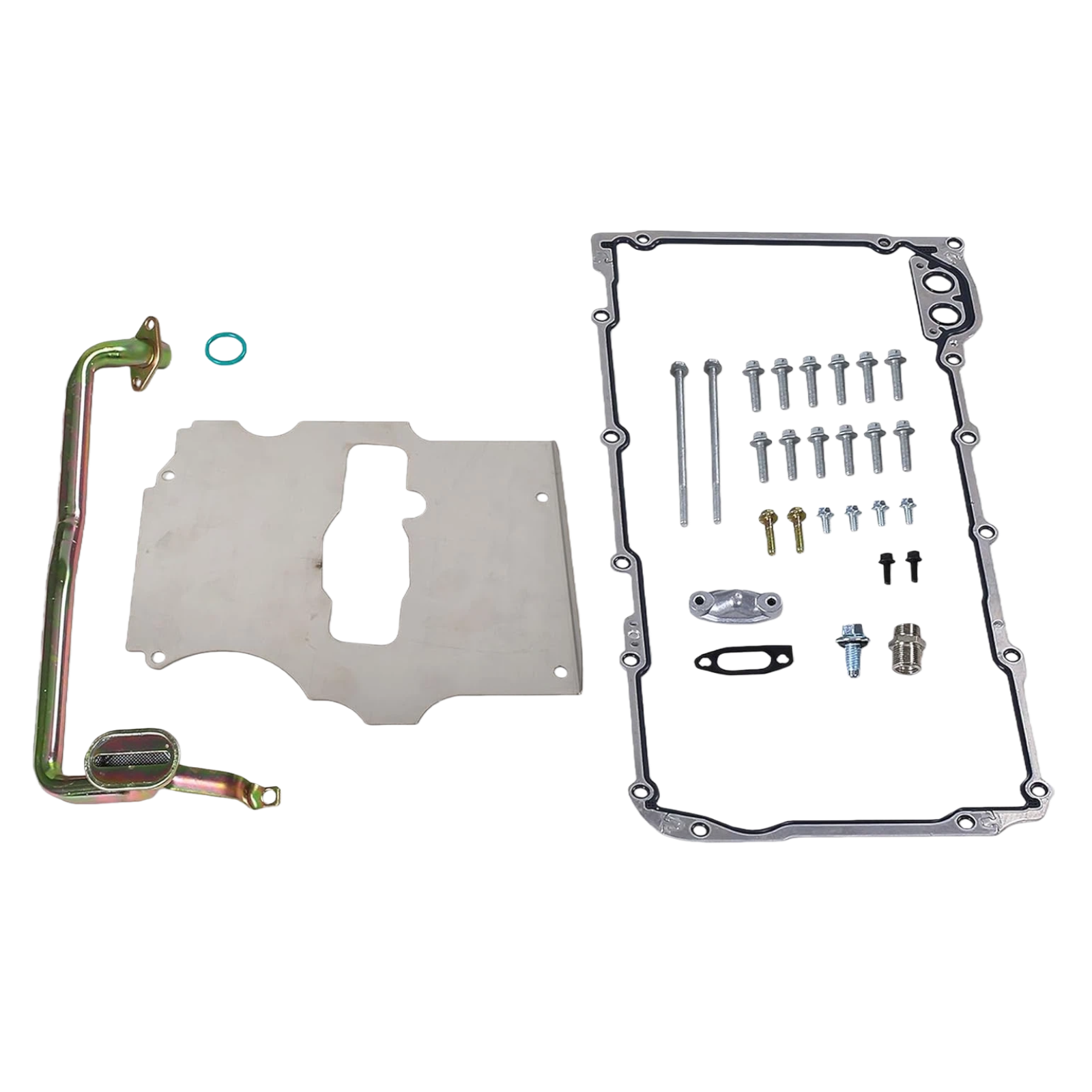

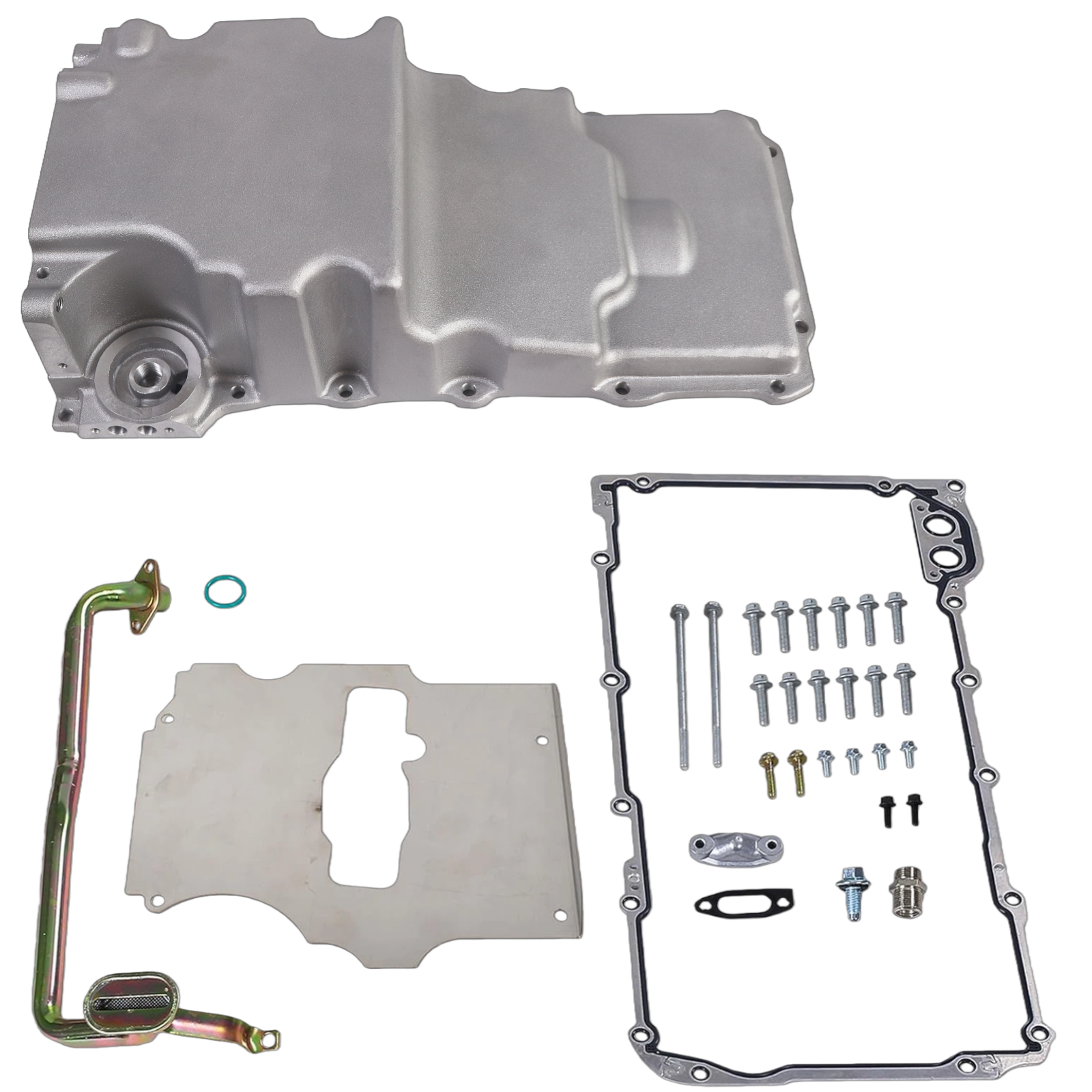

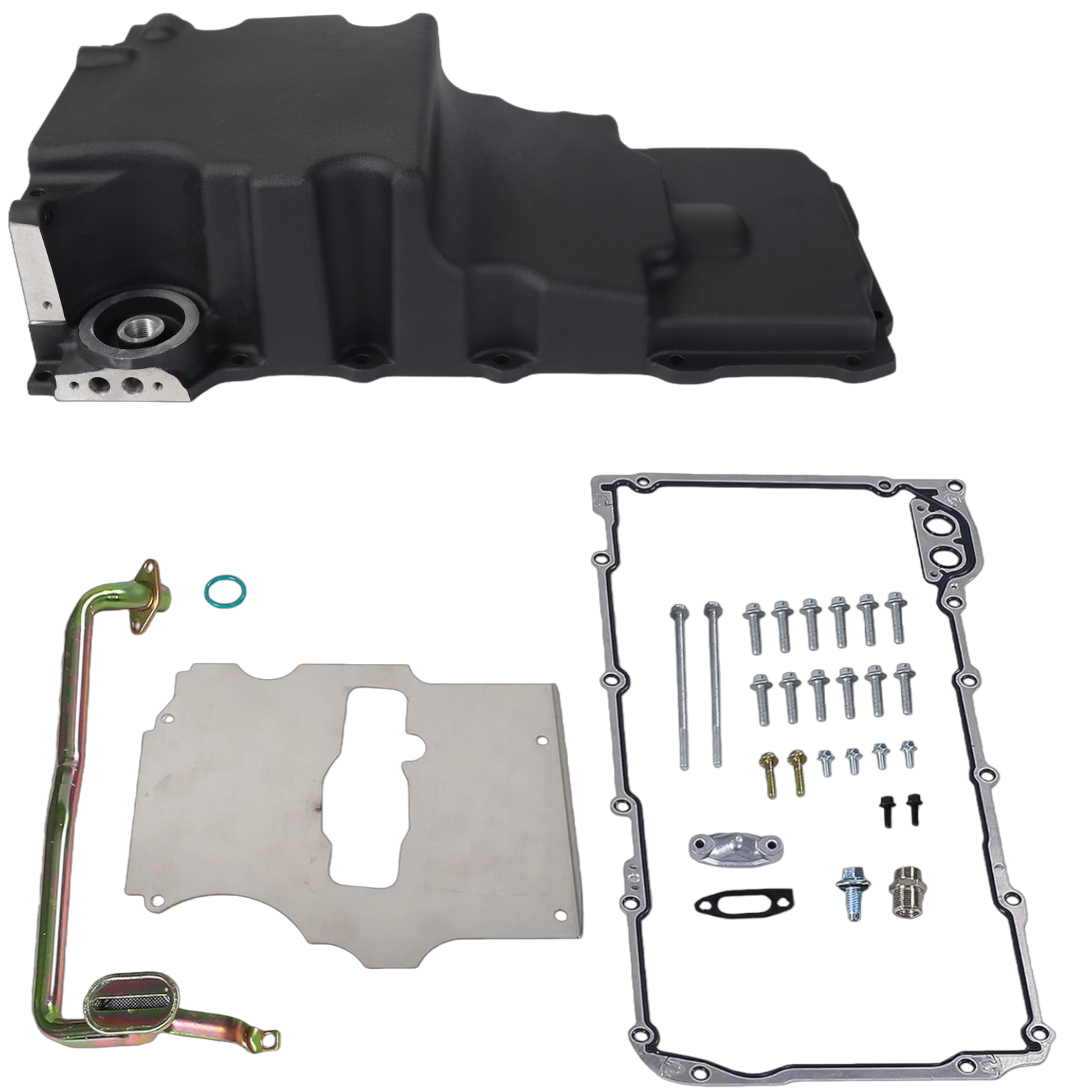

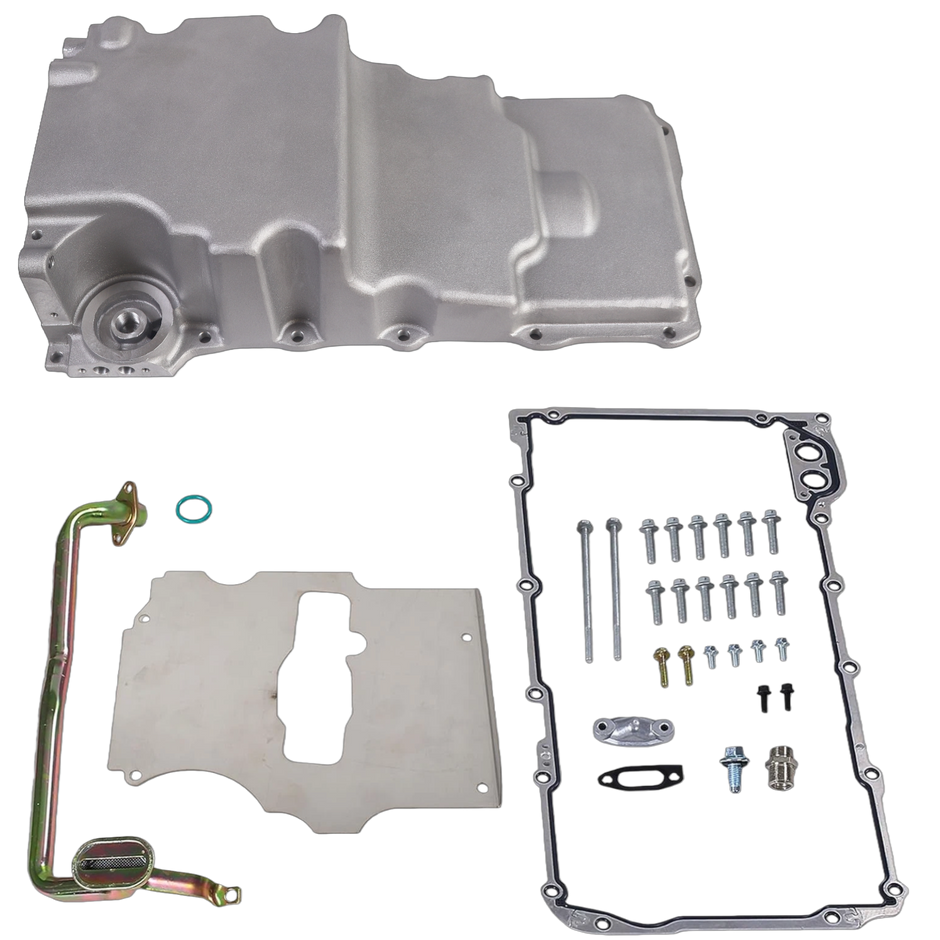

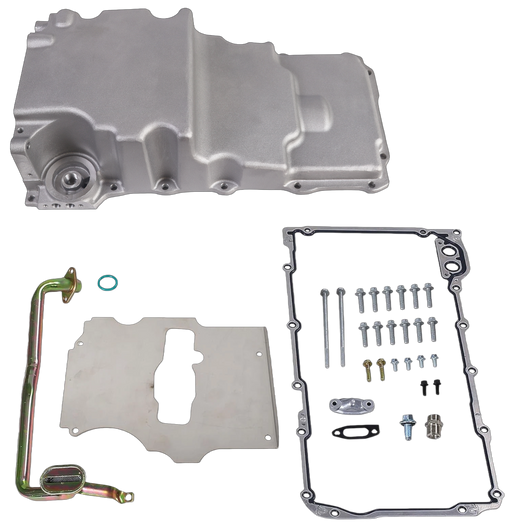

Package included: 1x Oil Pan

1x Oil Pan Gasket

1x Sump Baffle

1x Pick-Up Tube

1x Sump Plug

1x Oil Filter Stud

1x Oil Passage Cover

1x O-Ring

1x Screw Mounting Kit

Vehicle Information:

- Compatible with most Engines: Gen 3/4 Blocks LS1 LS2 LS3 LS6 LS9 4.8L 5.3L 5.7L 6.0L 6.2L

- Compatible with LS Swap Retrofit Aluminum Oil Pan LS1 LS2 LS3 Rear Sump

- Compatible with GM/Chevrolet Cars Trucks with SBC or BBC Engine

- Compatible with Camaro/Firebird (1967-1969), Nova/Apollo/Ventura/Omega (1982-1992), GM A-body (1964-1972), G-body (1978-1987), and F-body (1982-1992) applications
