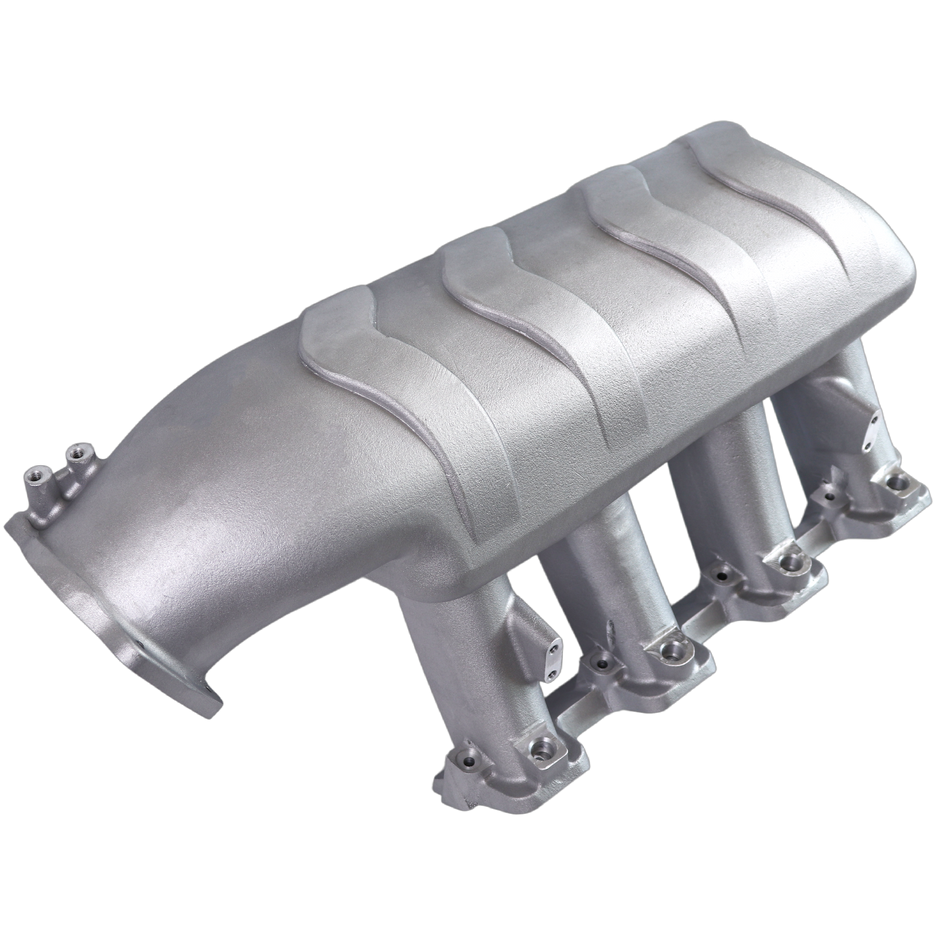

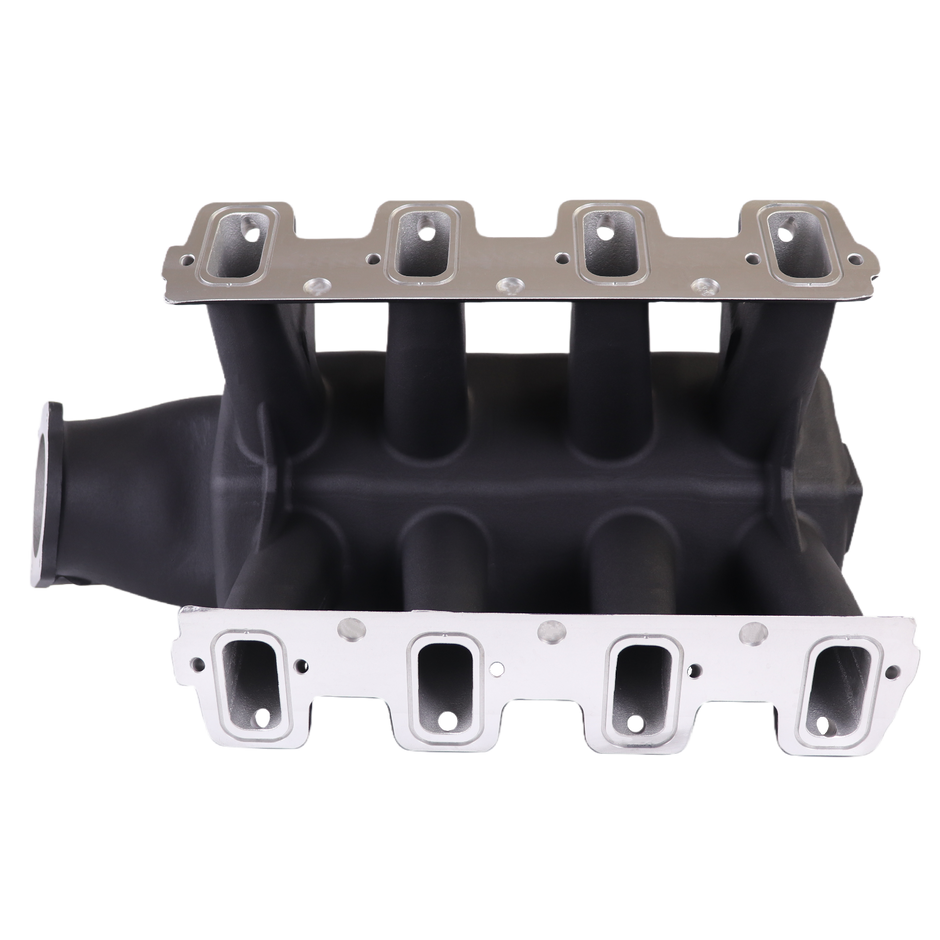

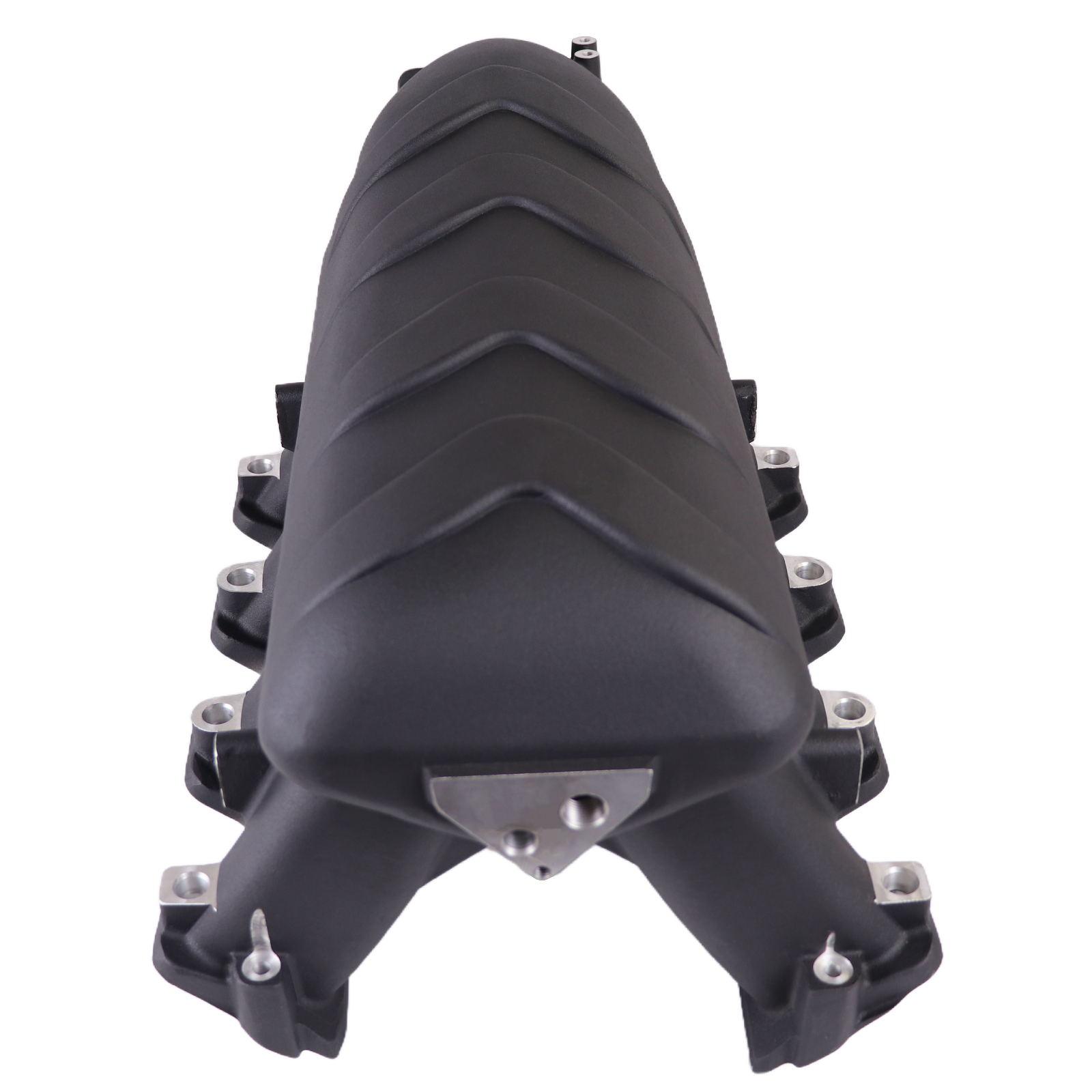

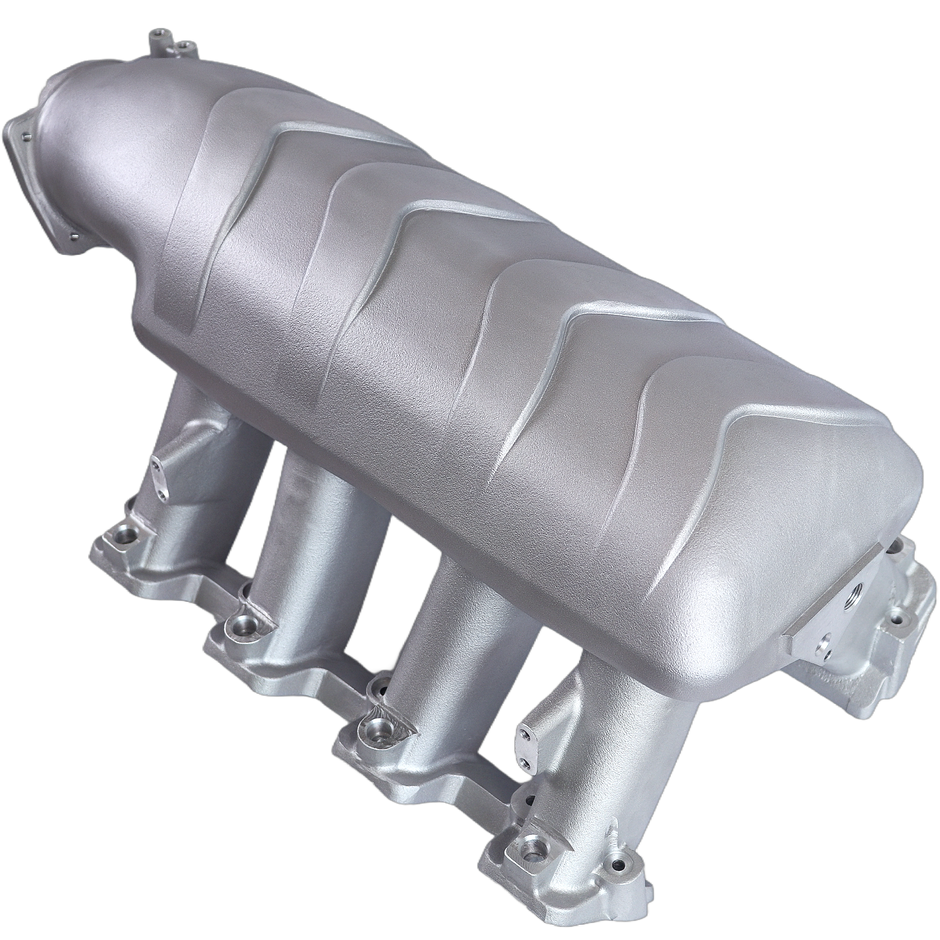

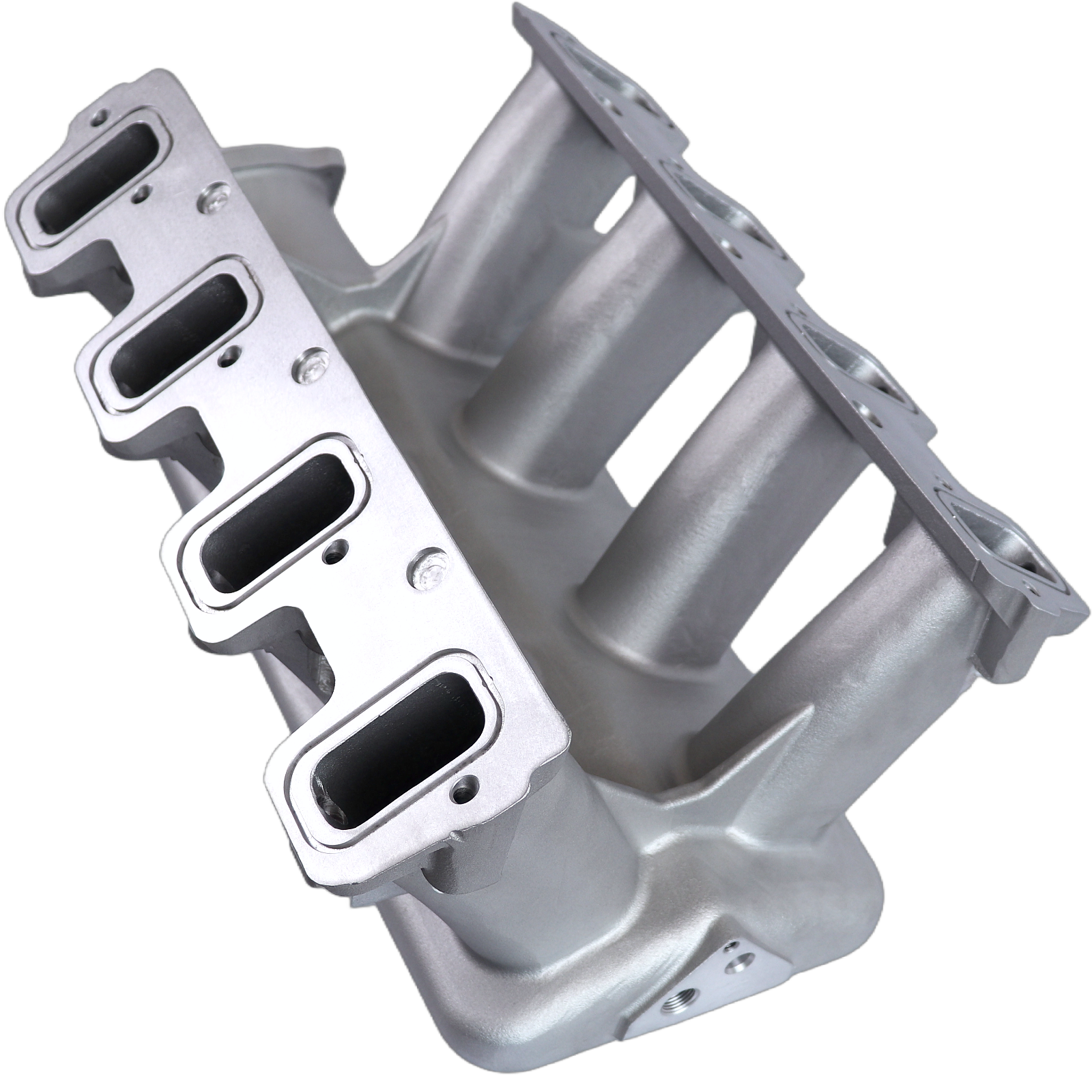

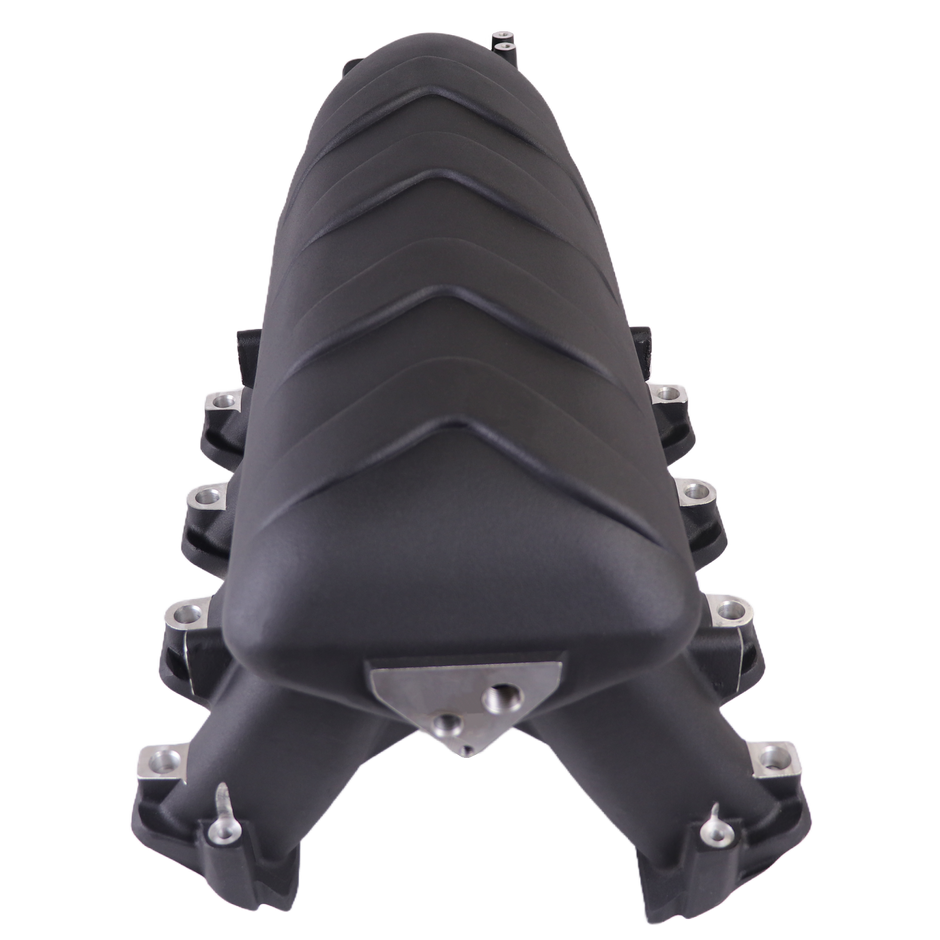

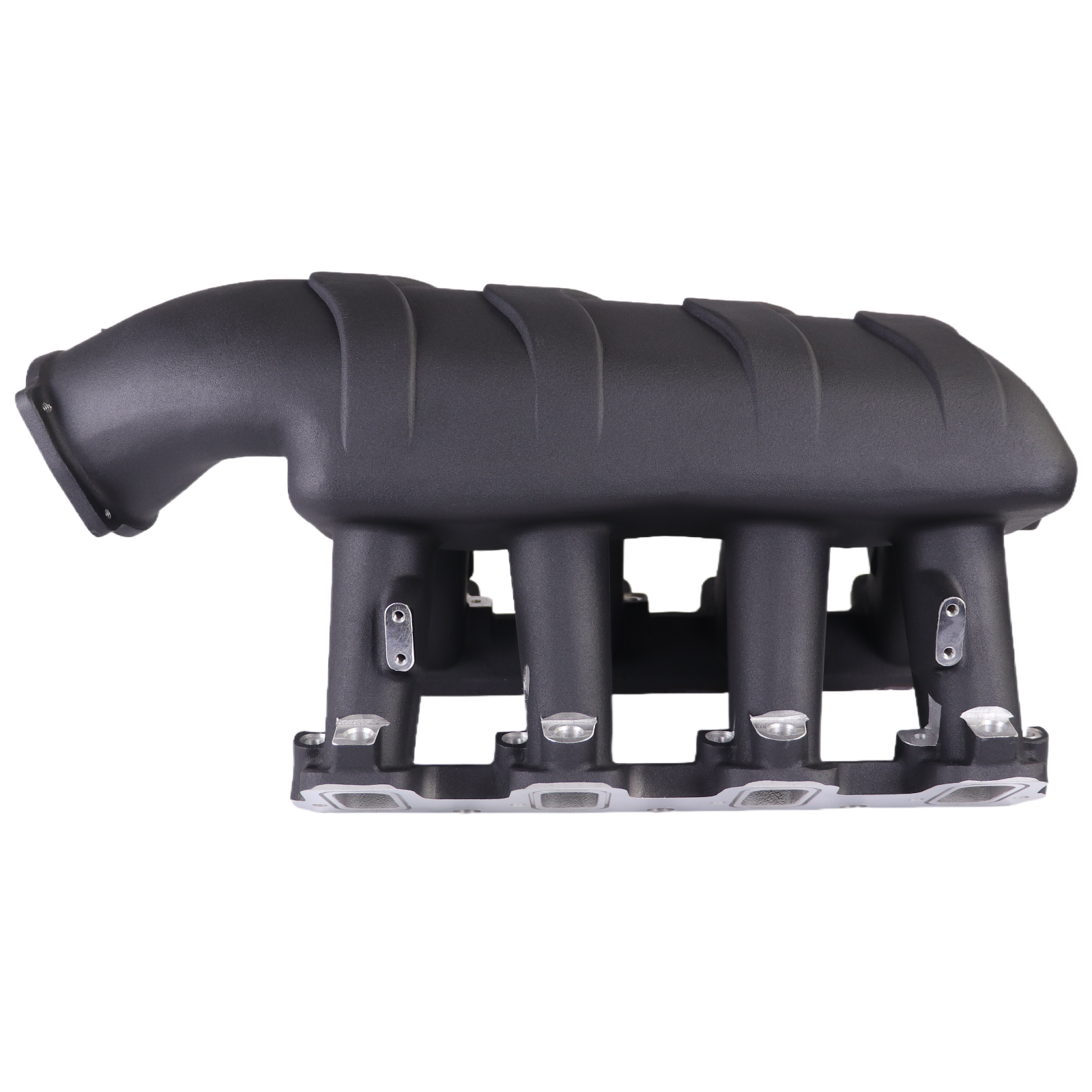

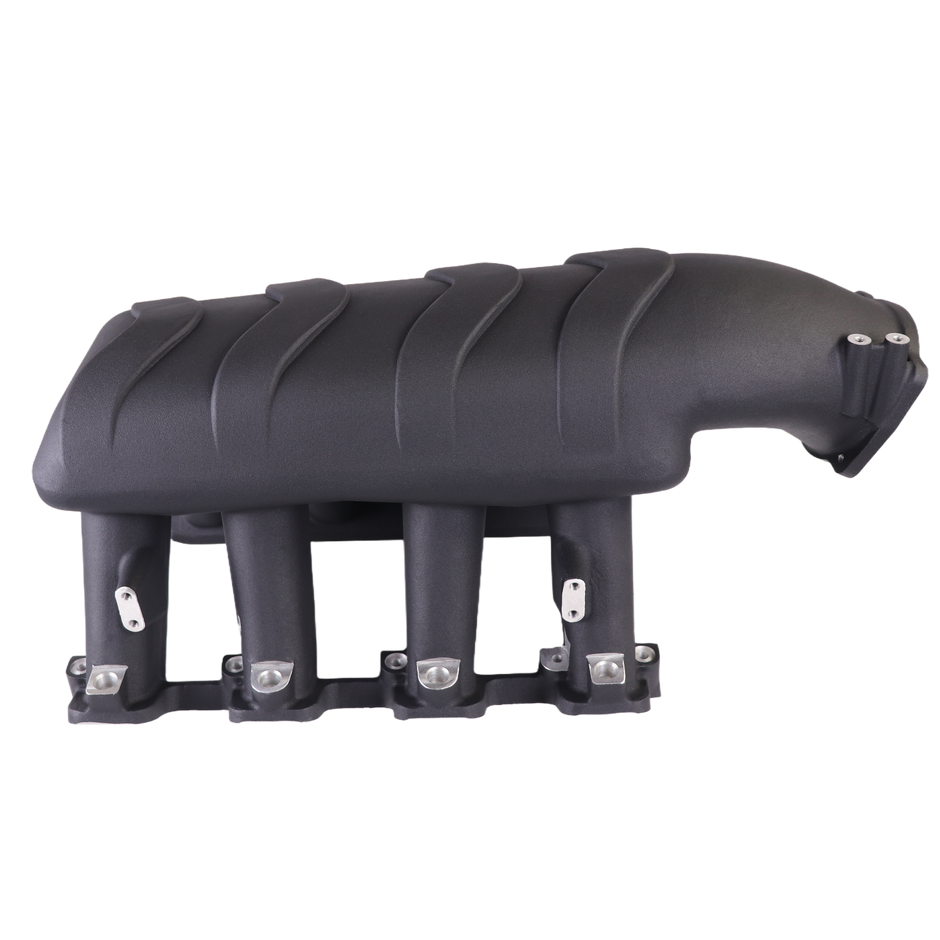

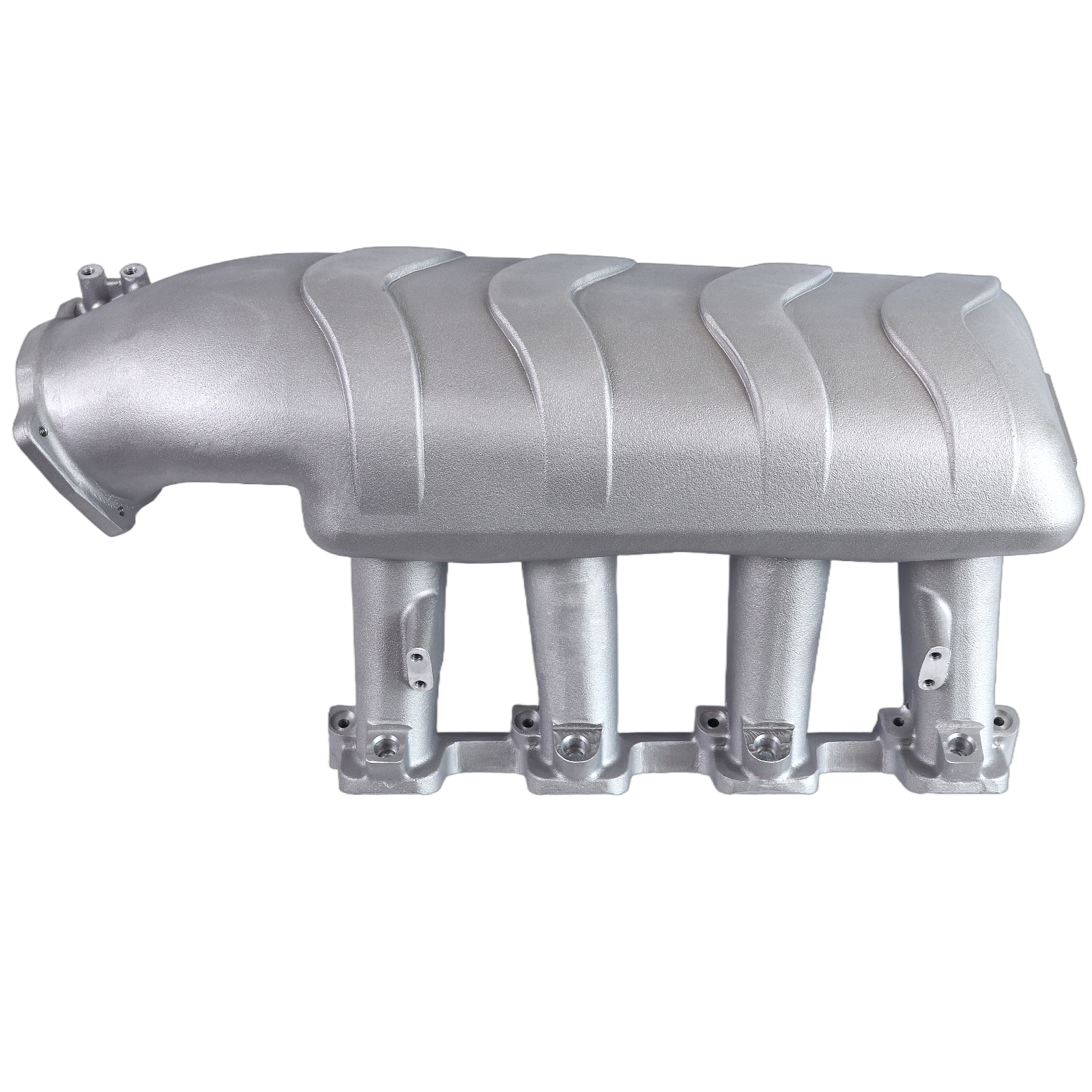

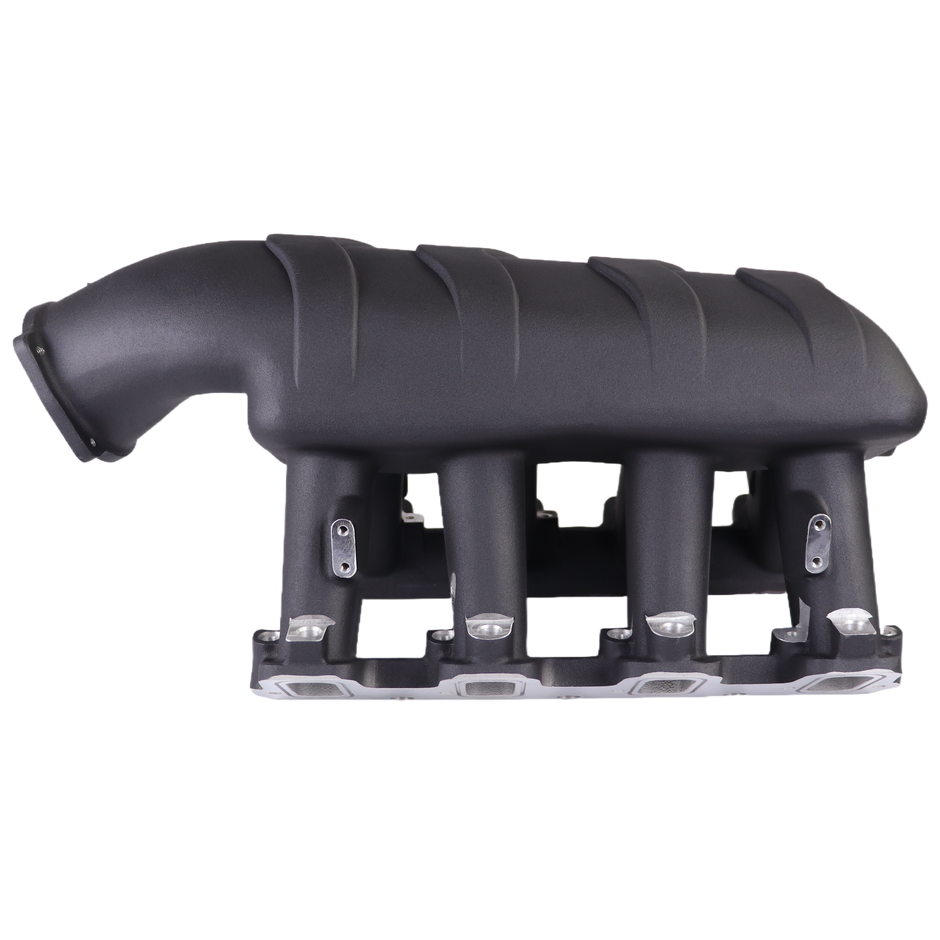

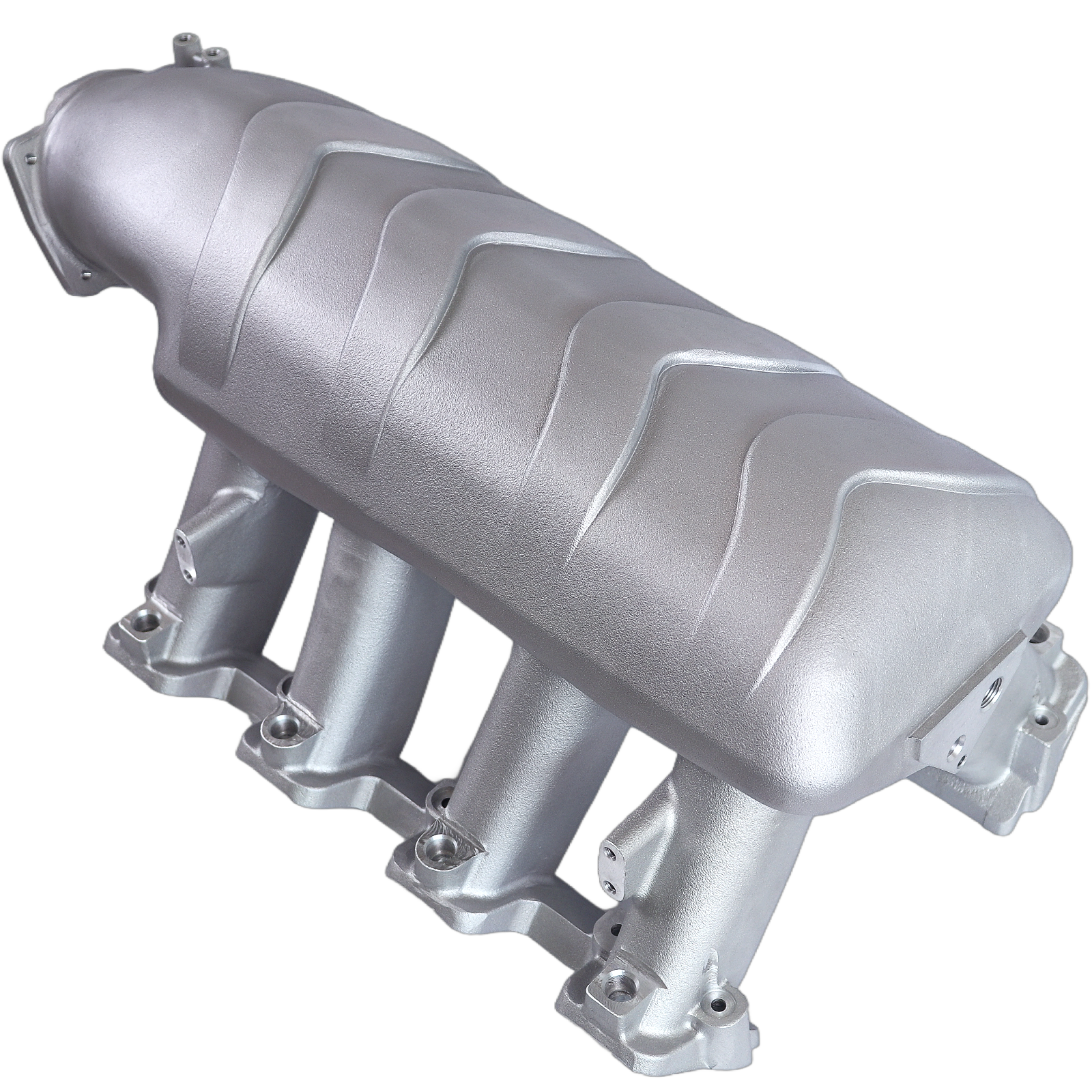

Haytalras 300-117 GM LS3 L92 Rectangle Port 102mm Hi-Ram EFI Intake Manifold 6.0L 6.2L

Fitment note: Please check compatibility carefully before placing an order.

Description:

- EFI LS hi-ram intake manifolds are designed for your high performance race engine. Big cube and high-rev applications without height limitations are the intent for these manifolds. these hi-ram intake manifolds offers a runner length and as-cast tapered cross-section design that works for a wide range of engine configurations. The included fuel rails are machined for -8 AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system.

- These hi-ram style intake manifolds are designed for high performance engine applications up to 427-440 cubic inch displacement and maximum engine speeds of 7500-8500 rpm, depending on the engine combination. The Hi-Ram intake manifolds are intended for maximum performance applications and will not accept stock components and hardware.

- The EFI versions of the LS hi-ram intake manifold and fuel rail are designed to accept EV-1 or pico fuel injectors.

- Notes:OE LS fuel injectors may not fit properly in the hi-ram EFI intake manifold fuel rail assembly.You need to purchase the bracket separately. A modified hood will be required for most vehicle applications.

- Notes:Longitudinal plenum top with fuel rails machined for -8 AN O-ring fittings

- Notes:Please Check the Compatibility Carefully before Placing an Order.

Specifications

Specification:

Part Number: 300-117,300117

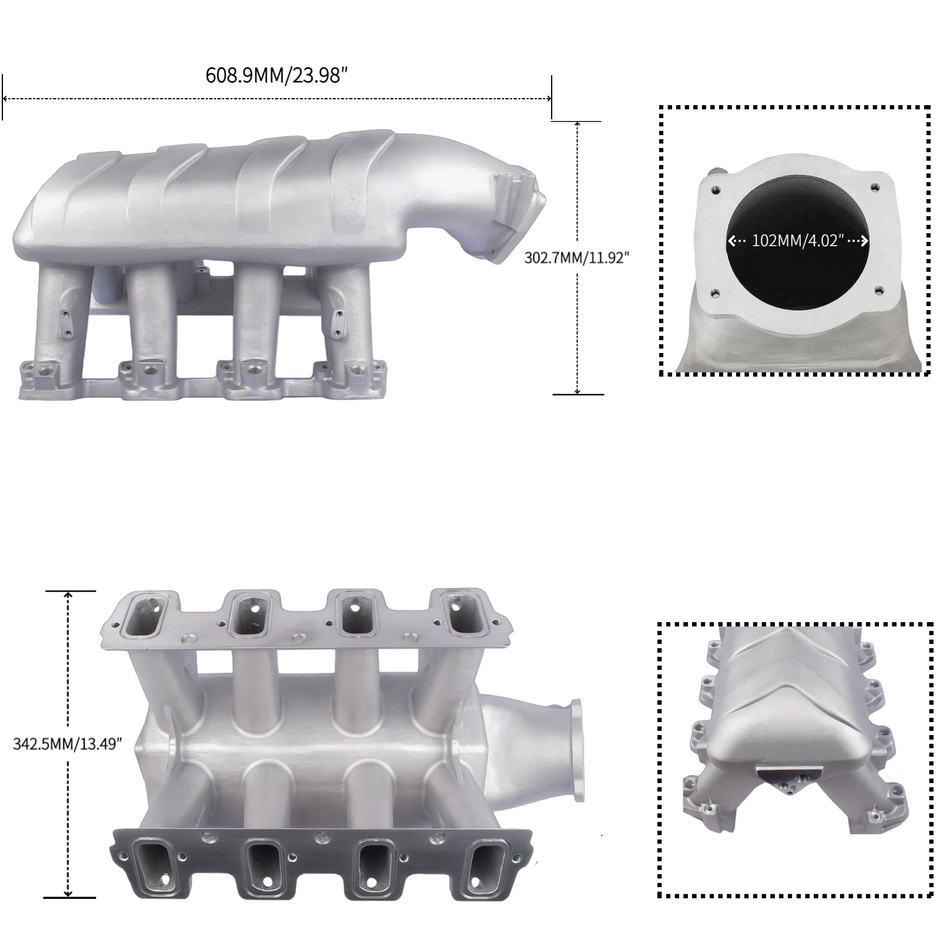

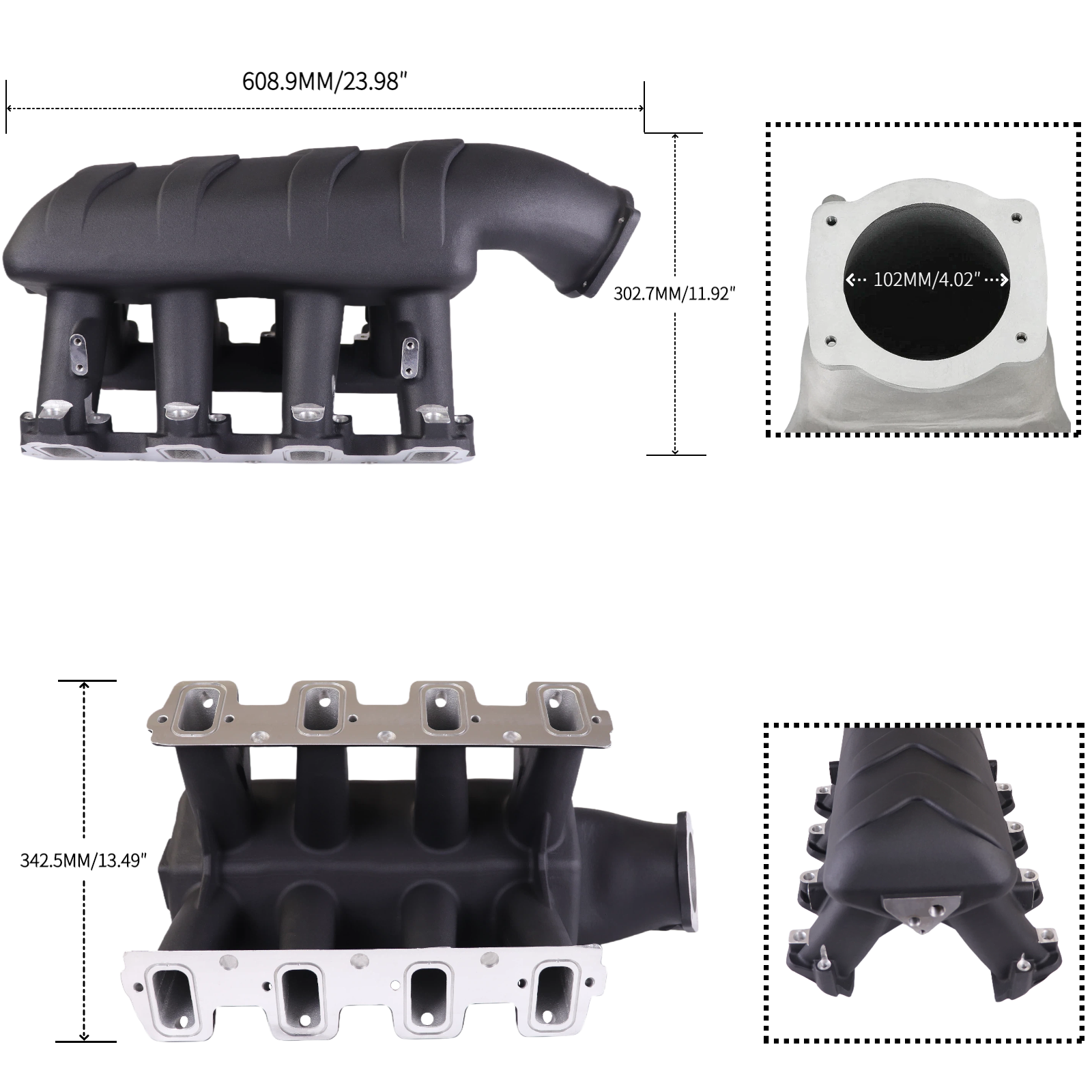

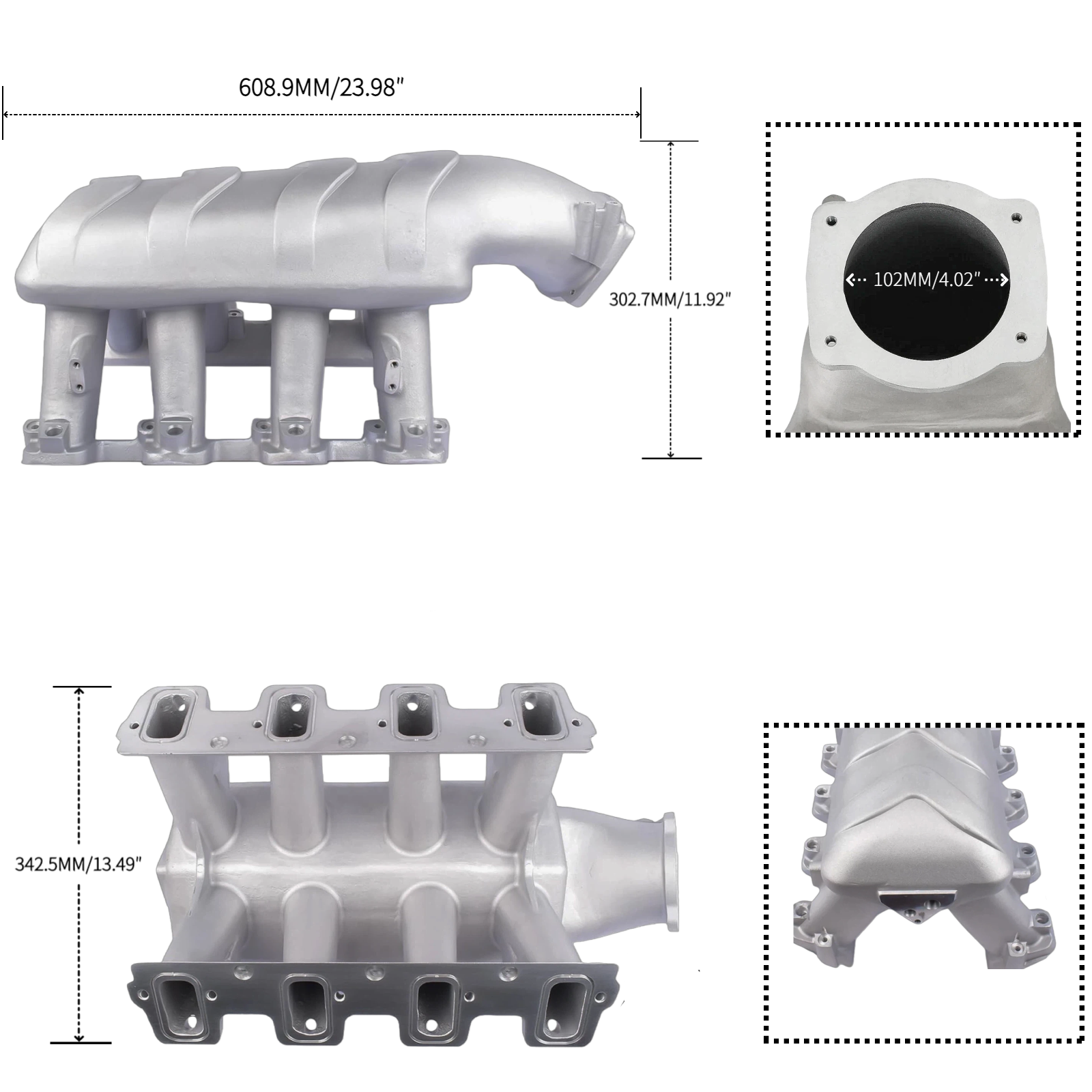

Throttle Body Bore Size: 102mm

Intake Manifold Height: Front/Rear Height 12.32 in

Basic Operating RPM Range: 7000-8000

Intake Style: Hi-Ram

Cylinder Head Configuration: Rectangular Port LS3/L76/L92/L99

Intake Material: Aluminum

Fuel Injection Style: Multi-port

Engine Block Deck Height: Standard deck

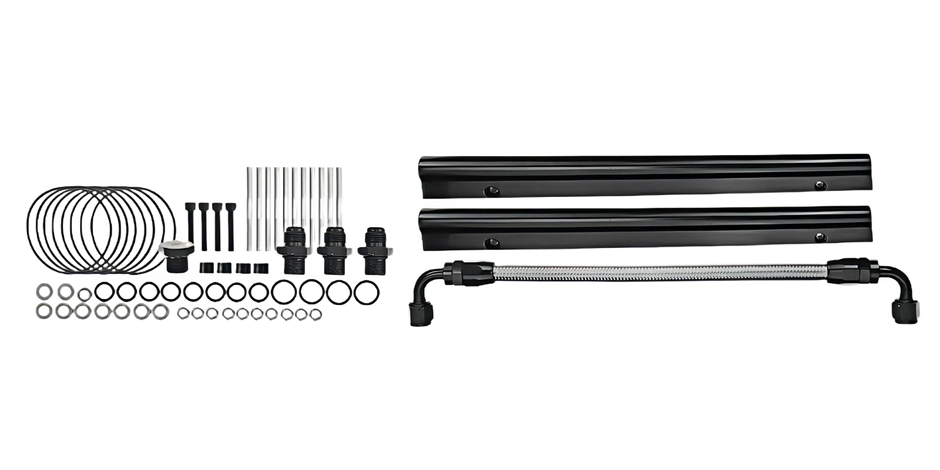

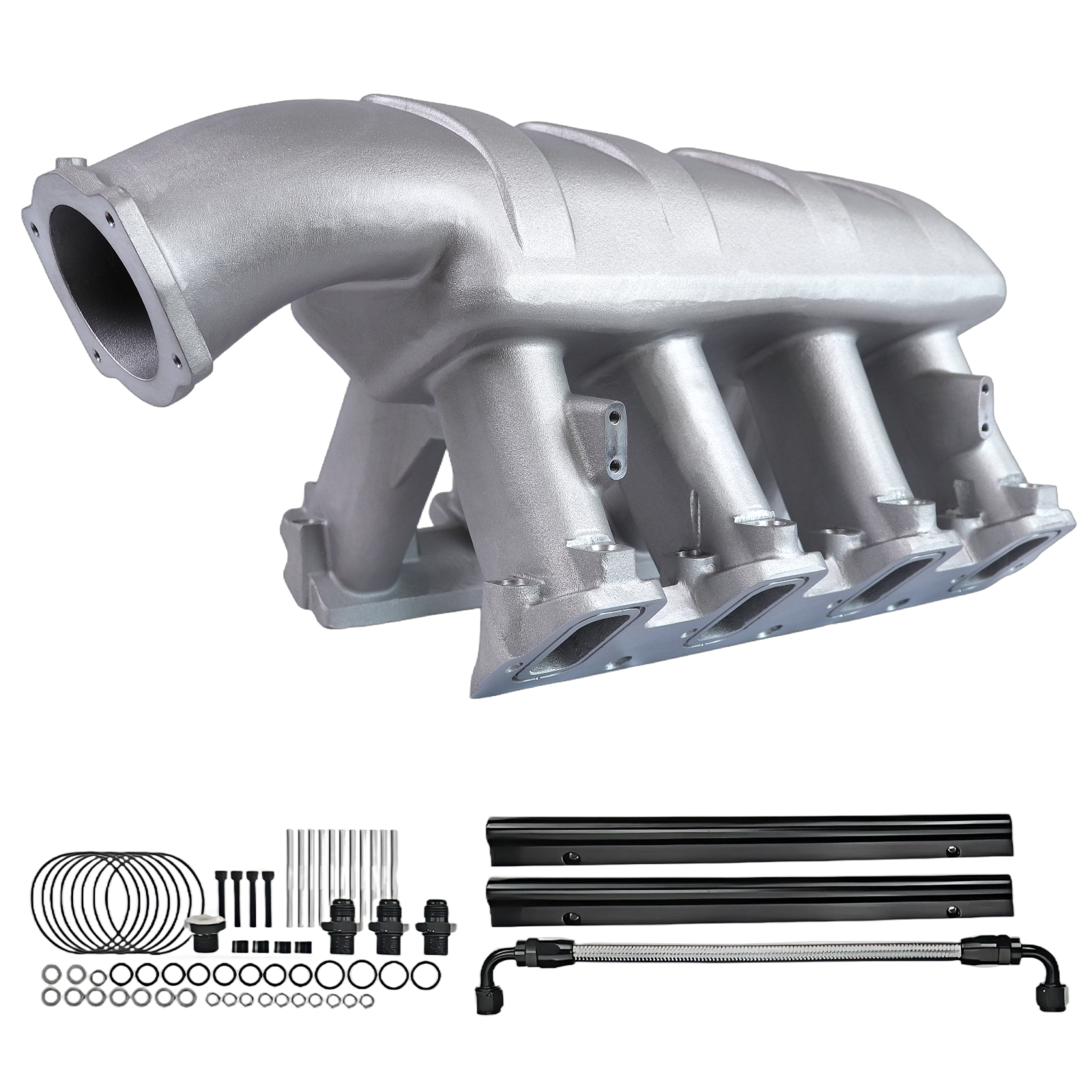

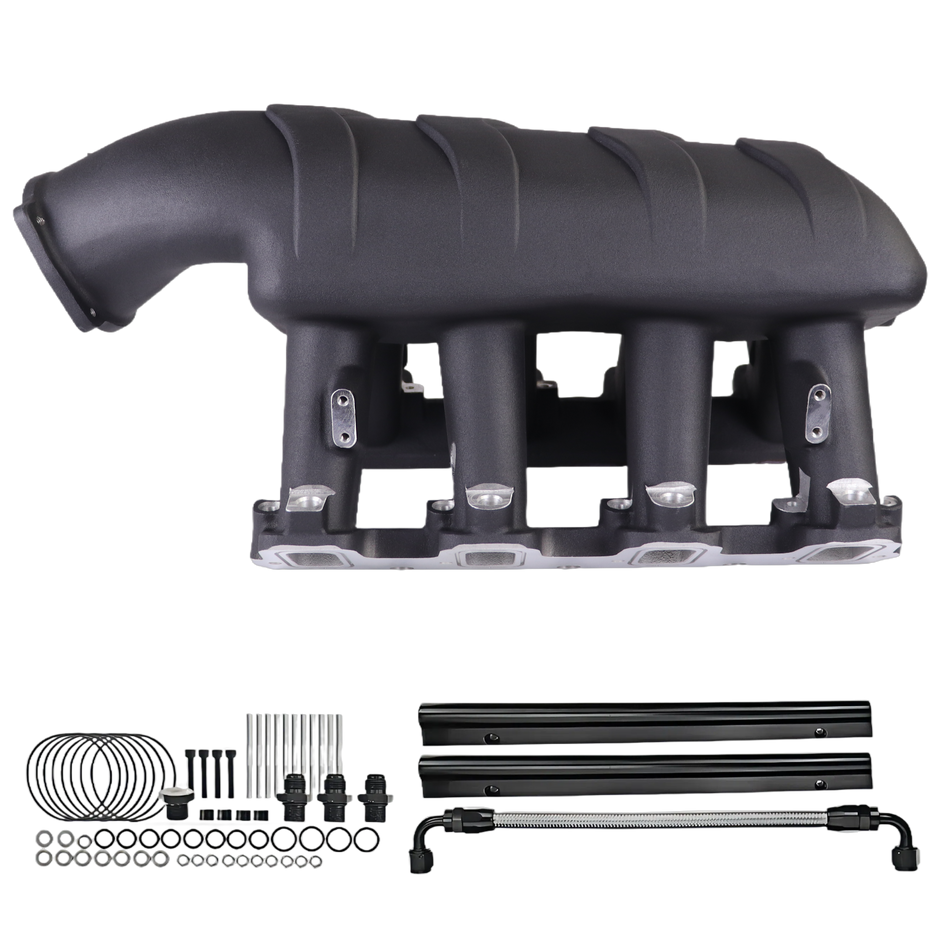

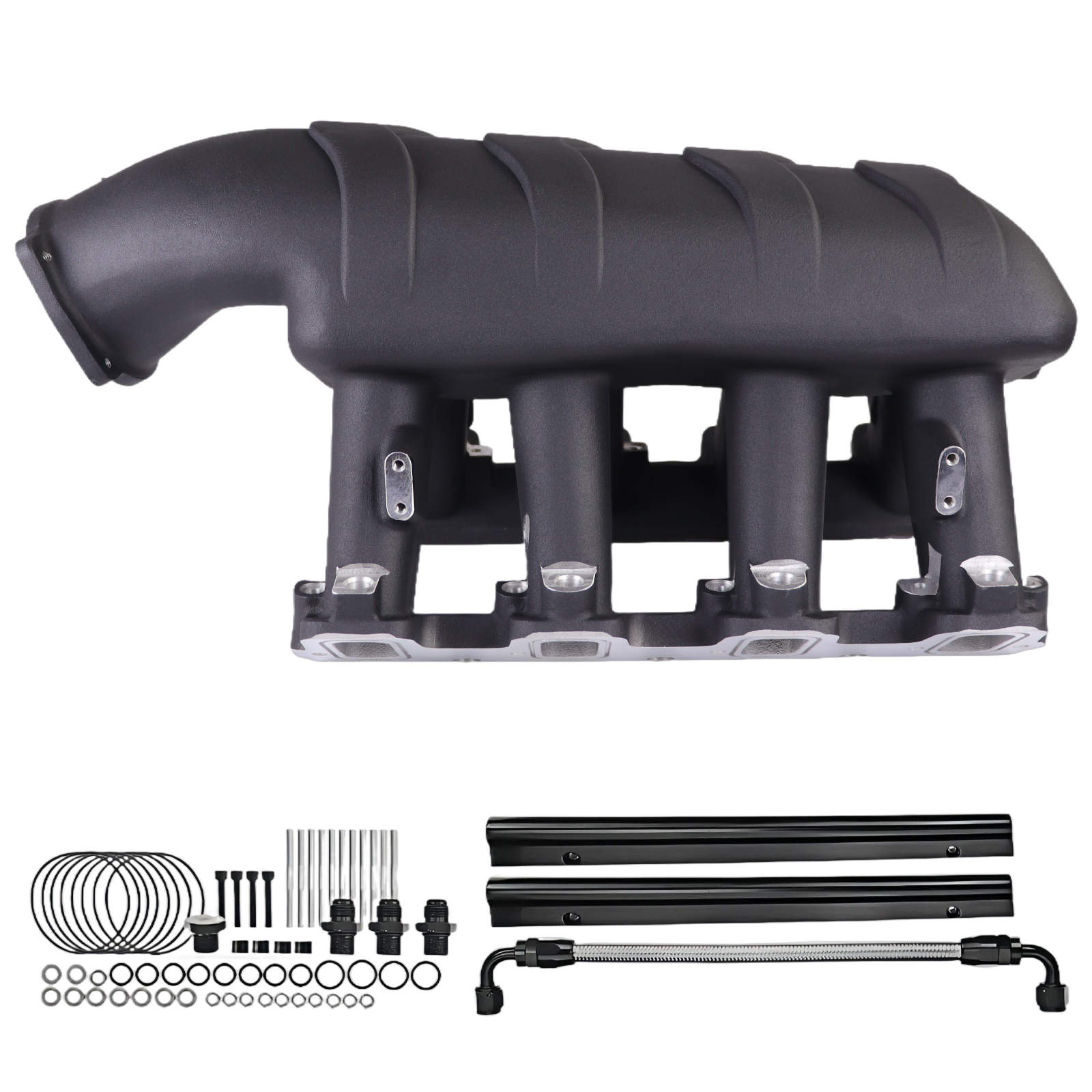

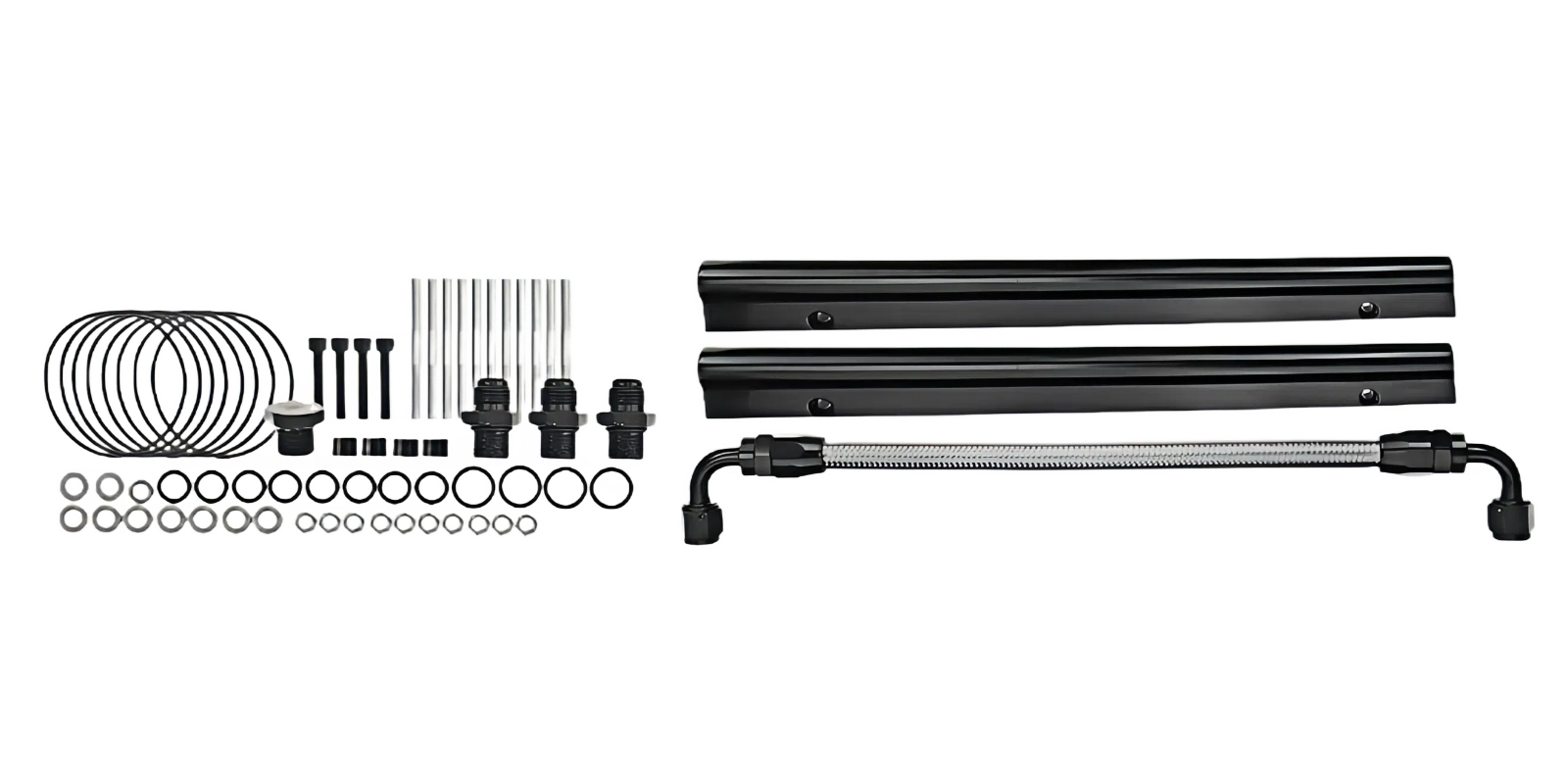

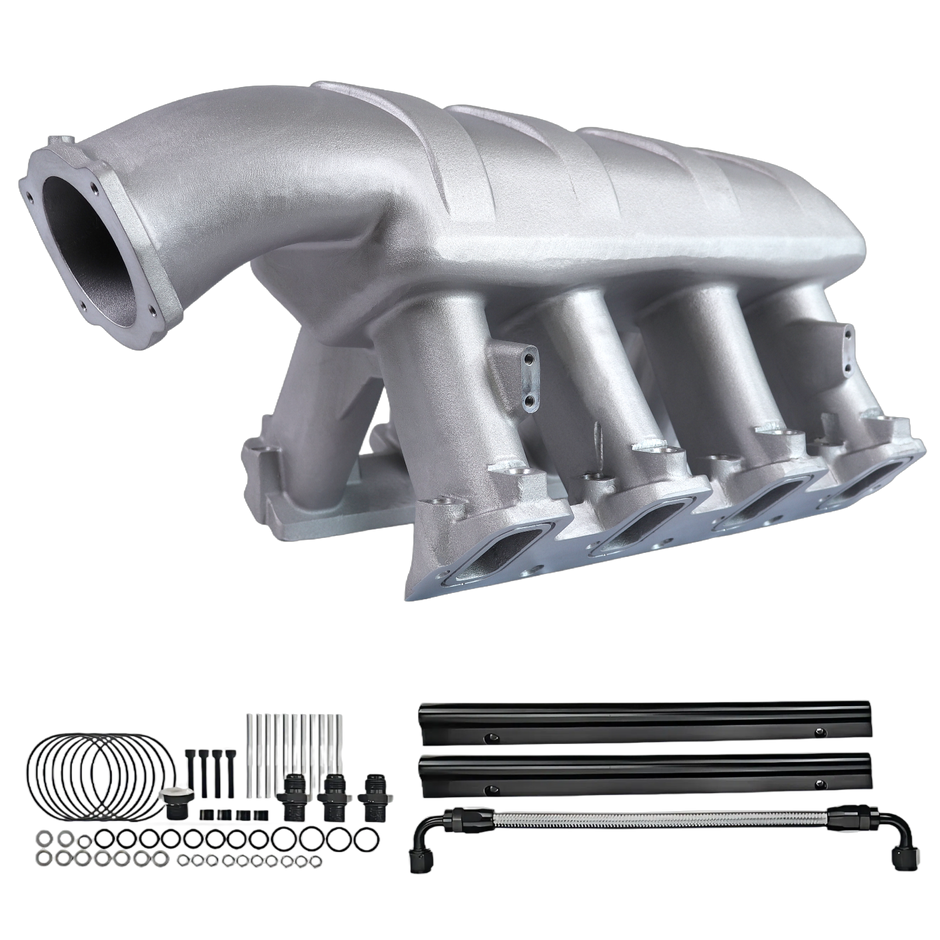

Package included:1*intake manifold&1*fuel rail kit &some parts shown in the picture

Vehicle Information:

- Fits for Cadillac Models:

- For Cadillac Escalade 2007-2008

- For Cadillac Escalade ESV 2007-2008

- For Cadillac Escalade EXT 2007-2008

- Fits for Chevrolet Models:

- For Chevrolet Camaro 2010-2015

- For Chevrolet Corvette 2008-2013

- For Chevrolet SS 2014-2017

- For Chevrolet Tahoe 2008-2008

- Fits for GMC Models:

- For GMC Sierra 1500 2007-2008

- For GMC Yukon 2007-2008

- For GMC Yukon XL 1500 2007-2008

- Fit for Hummer Models:

- For H2 2008

- Fits for Pontiac Models:
