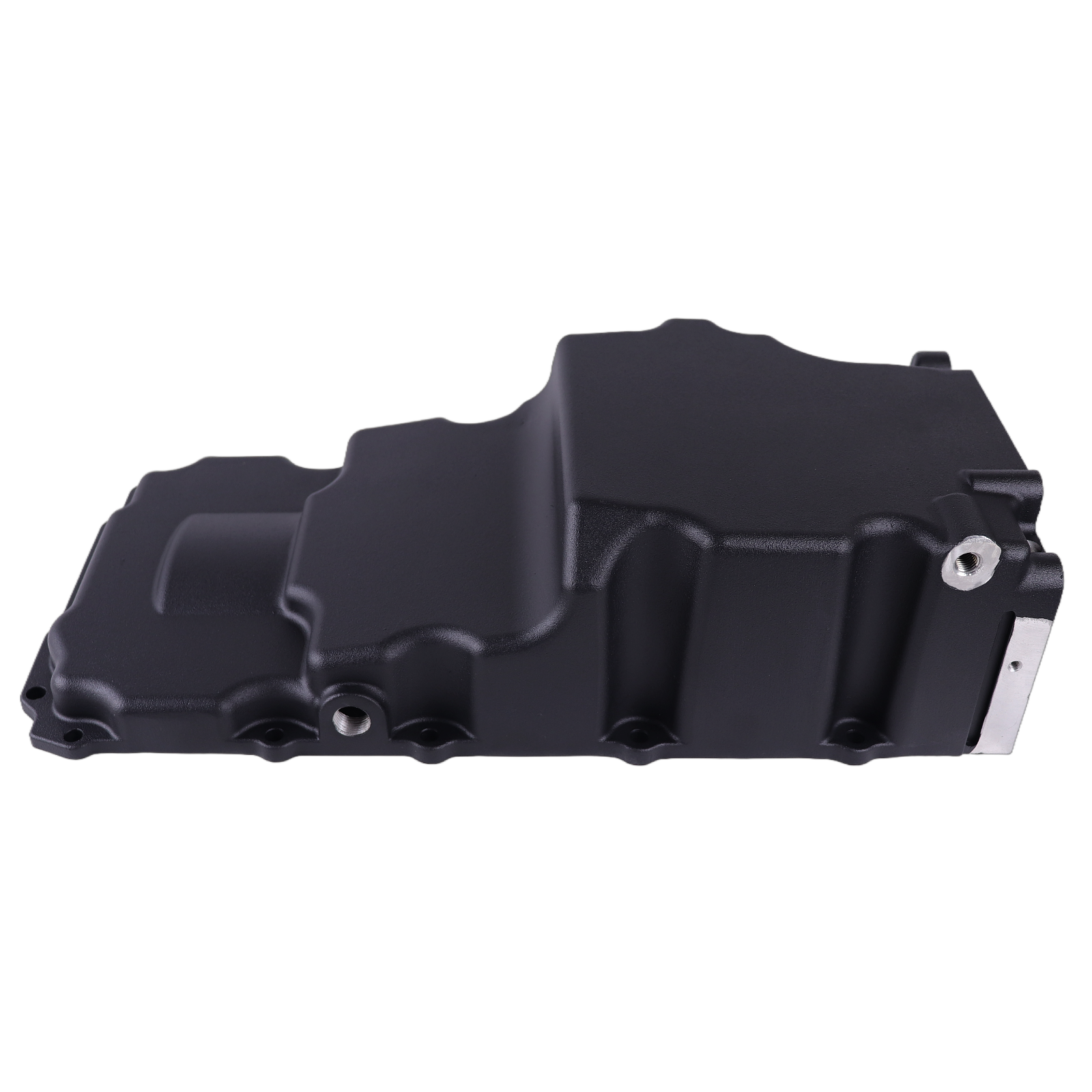

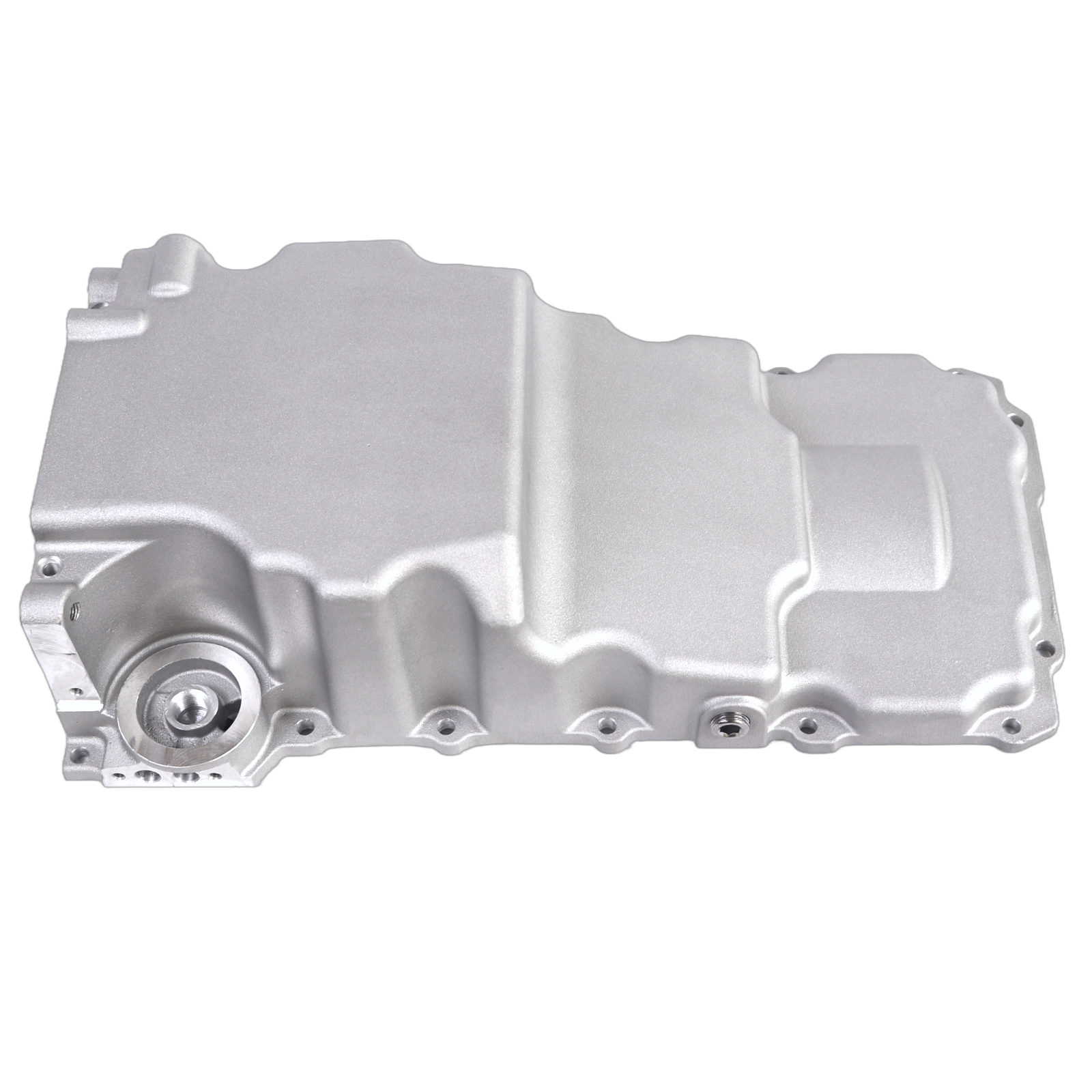

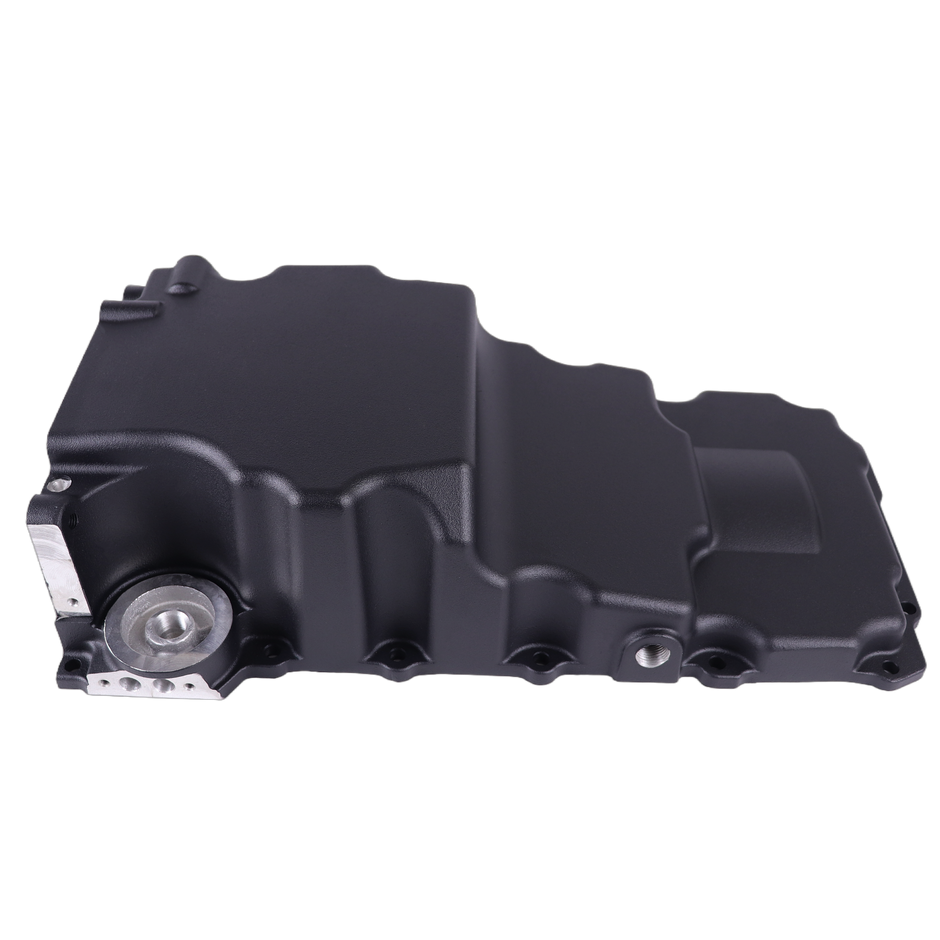

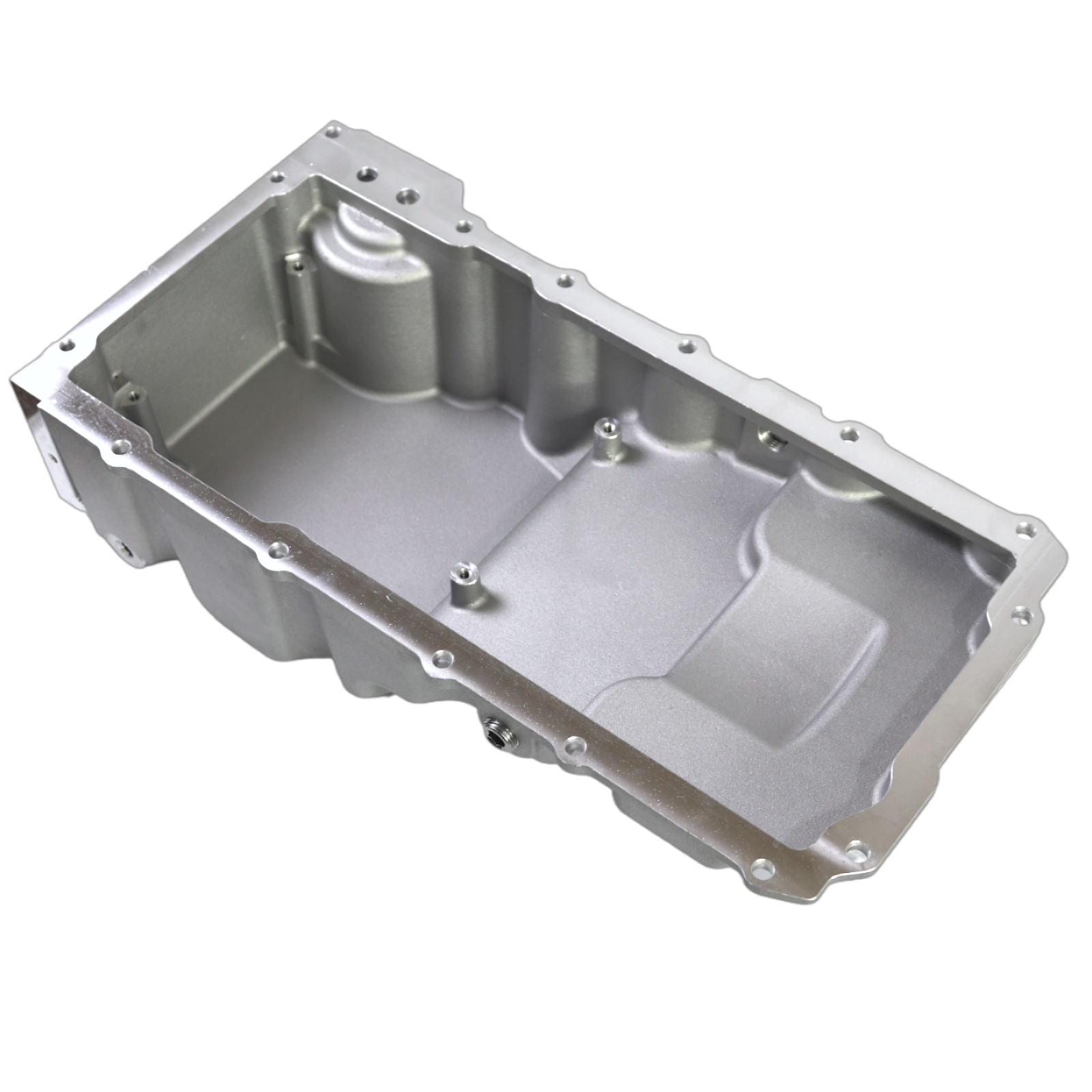

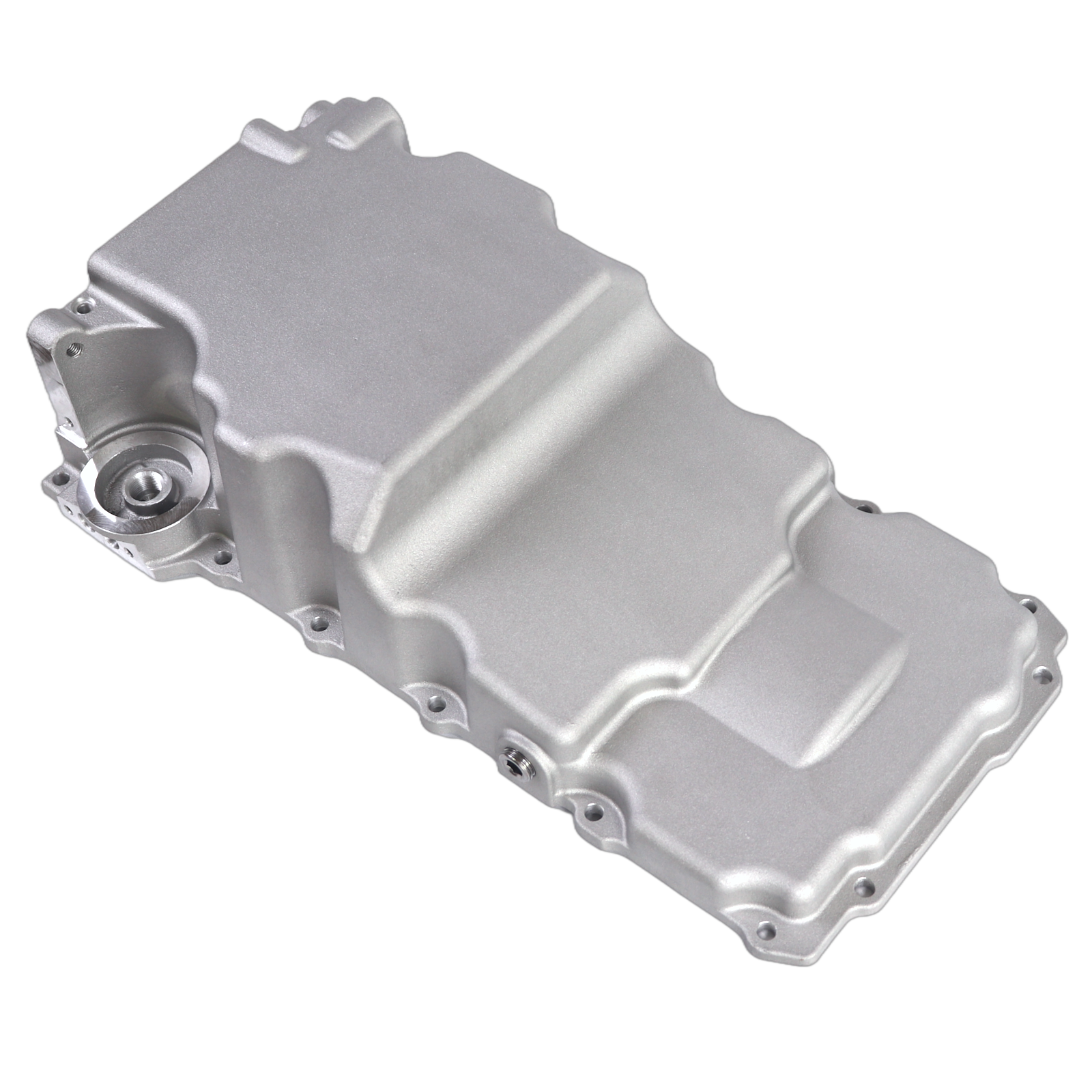

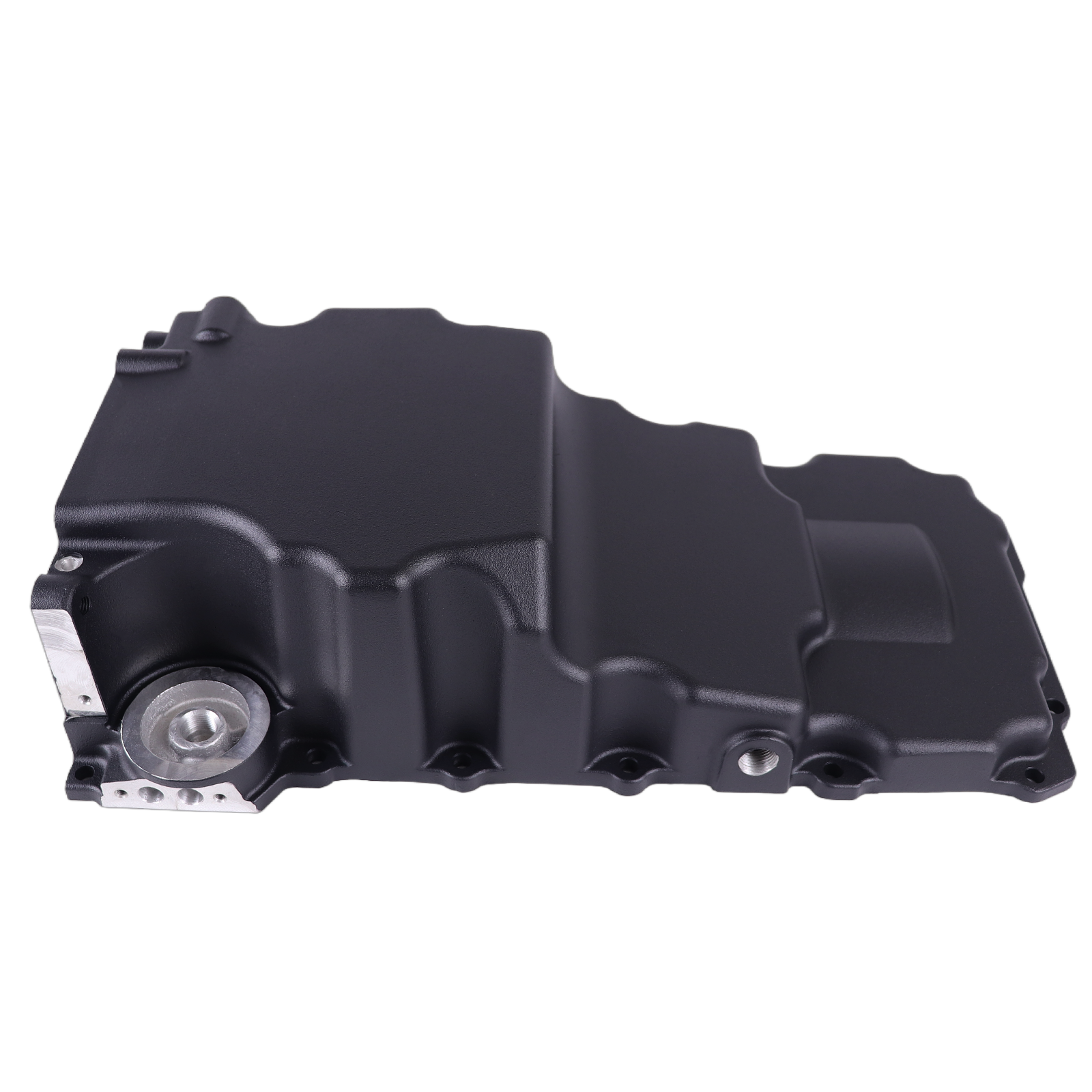

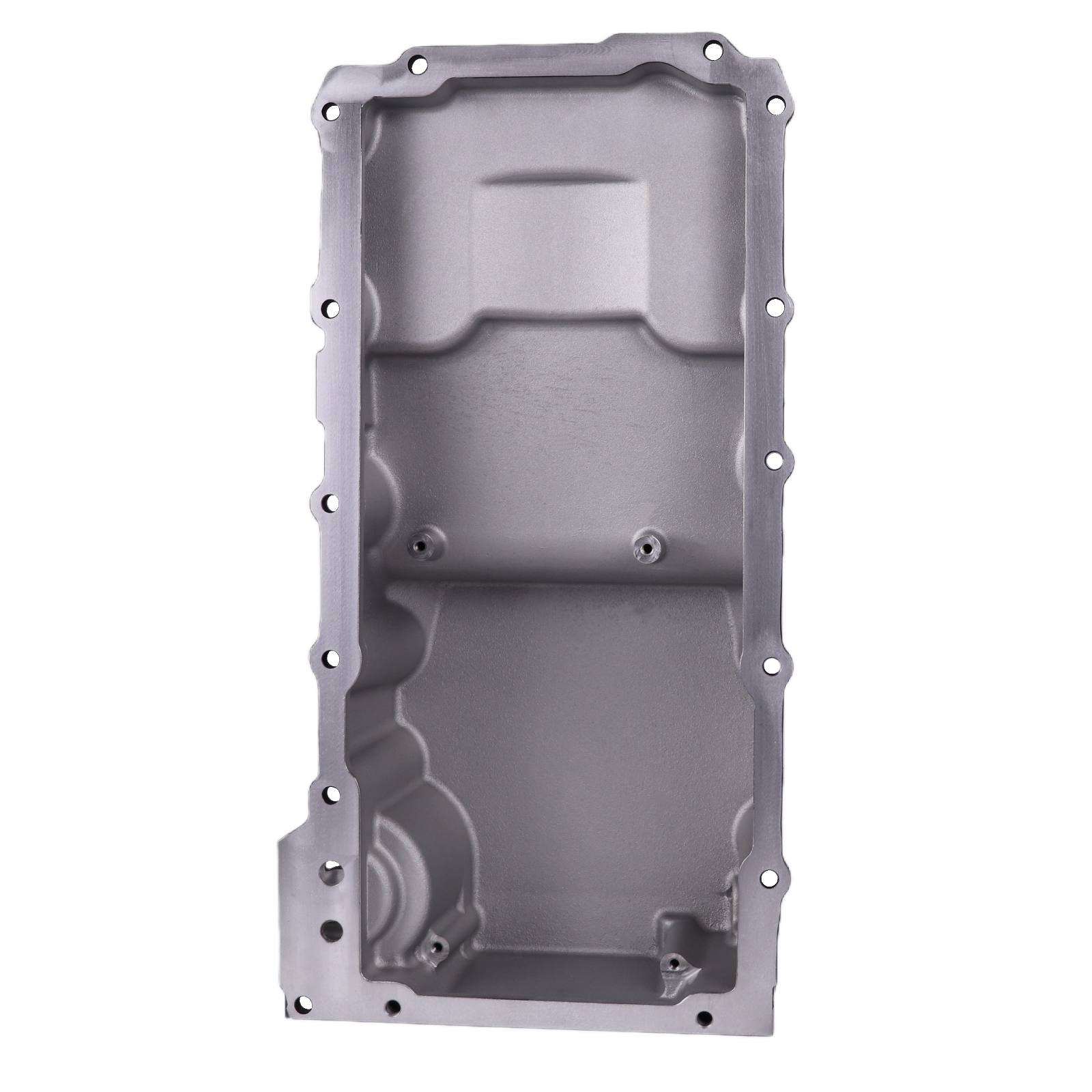

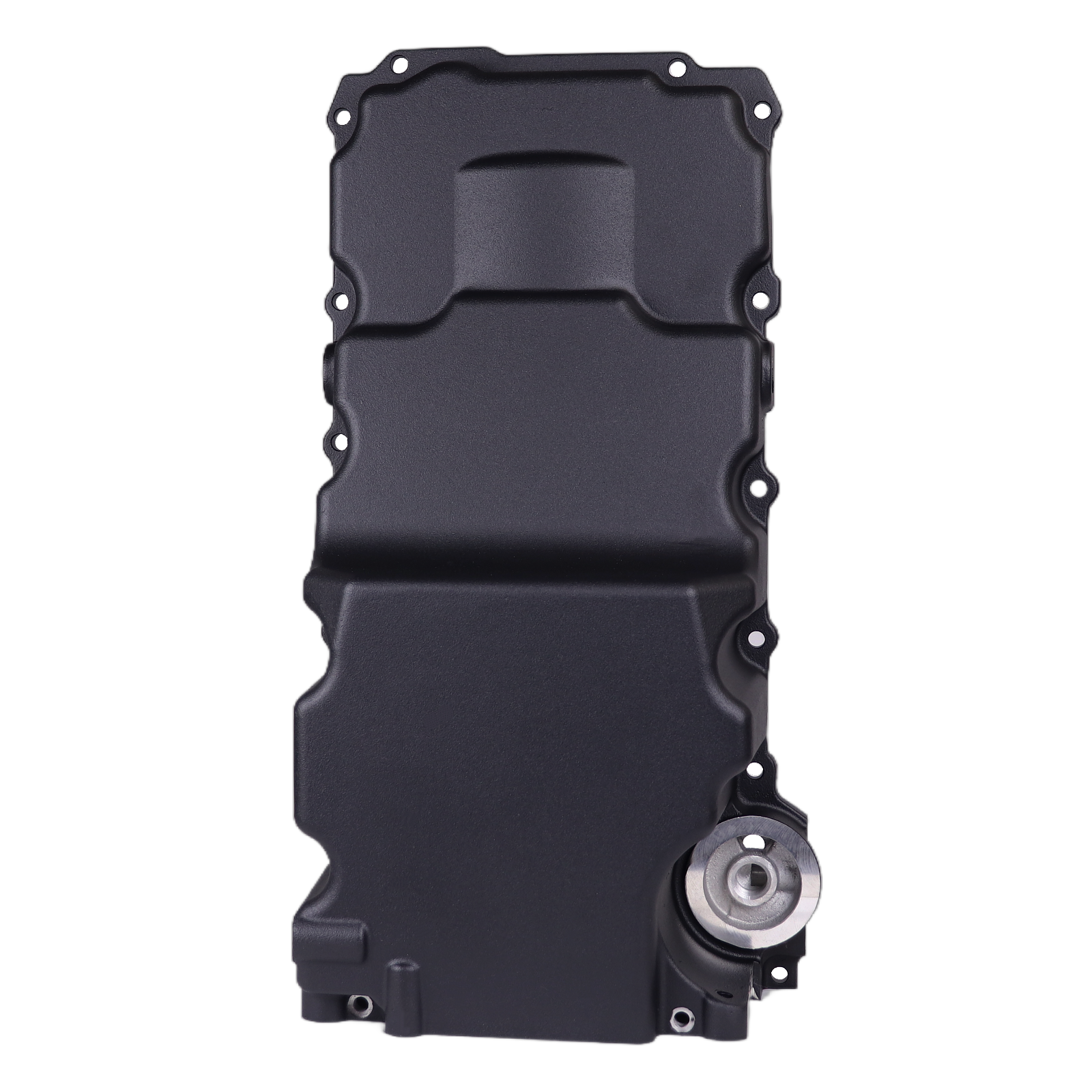

Haytalras 302-3 GM LS Swap Extra-Clearance Rear Sump Oil Pan Kit 4.8L-6.2L

Fitment note: Please check compatibility carefully before placing an order.

Description:

- Retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments.

- Notes:Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application.

- Notes: Not fits LS7 or LS9 dry sump applications.

- Notes:Please Check the Compatibility Carefully before Placing an Order.

Specifications

Specification:

Part Number: 302-3,81075

Part Type: Oil Pans

Sump Style: Wet

Sump Depth: 5.46"

Sump Oil Capacity: 5.7 Quarts

Total Oil Capacity: 6.2 Quarts with Stock Filter

Maximum Stroke with OE Rod: 4.000 in.

Sump Location: Rear

Gaskets Included: Yes

Hardware Included: Yes

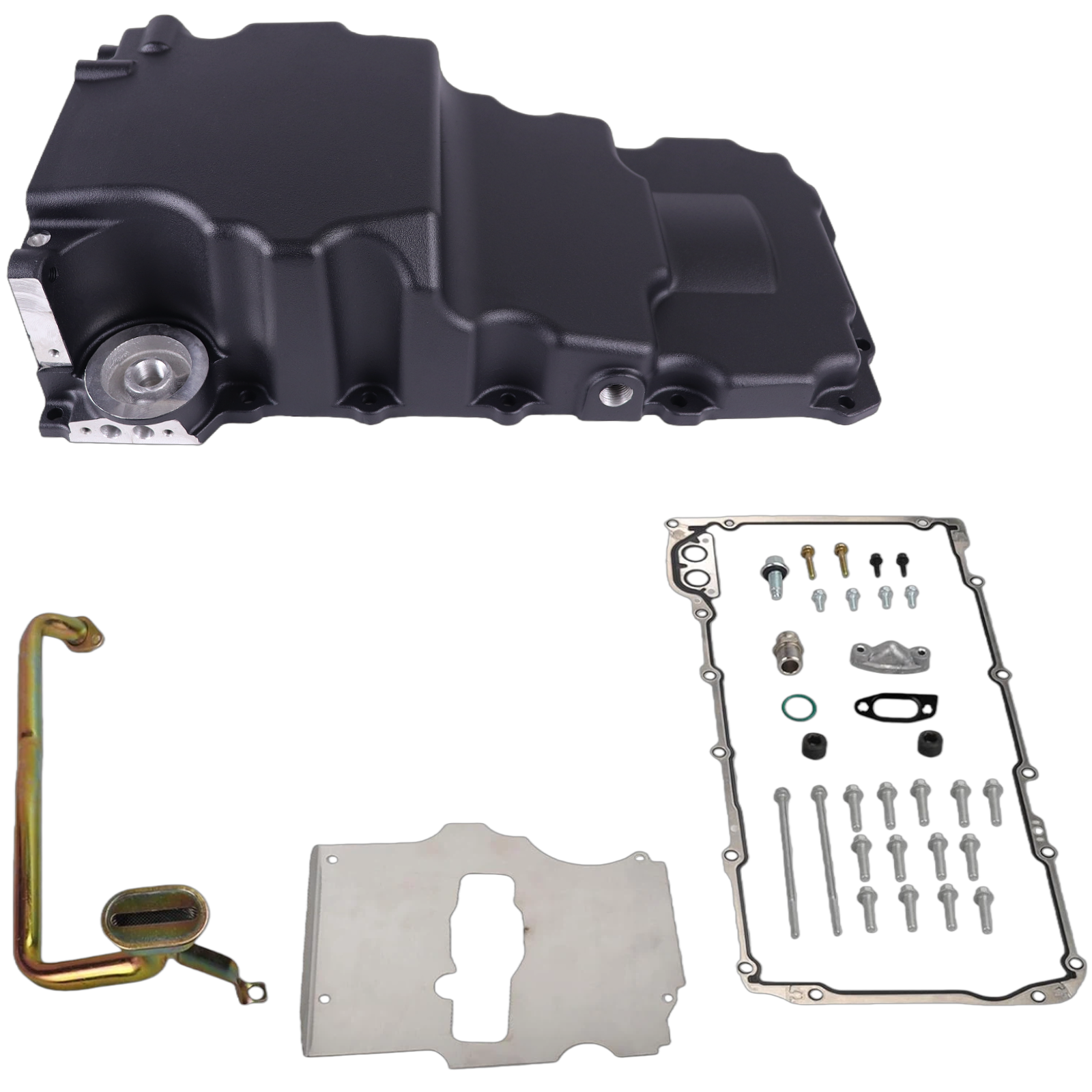

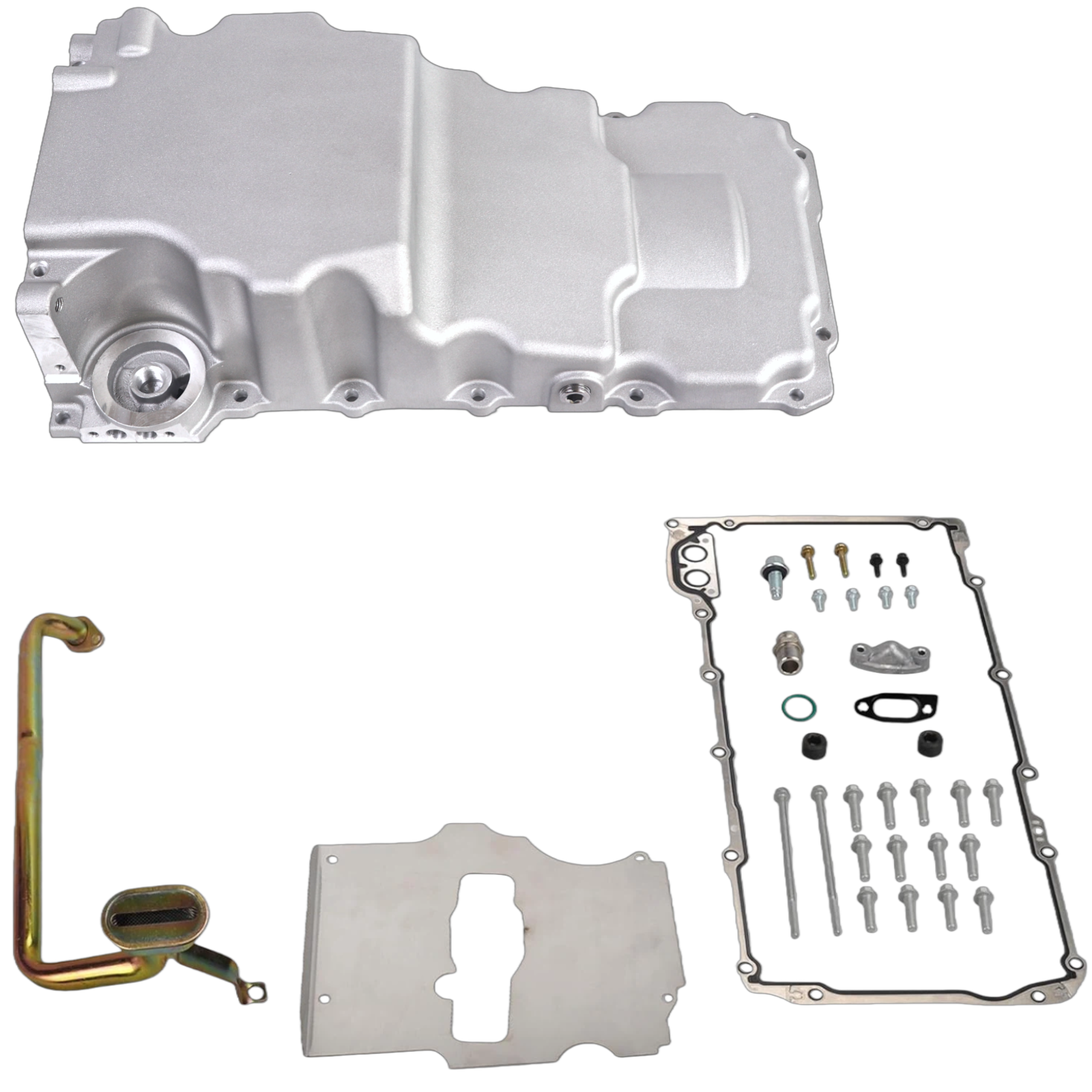

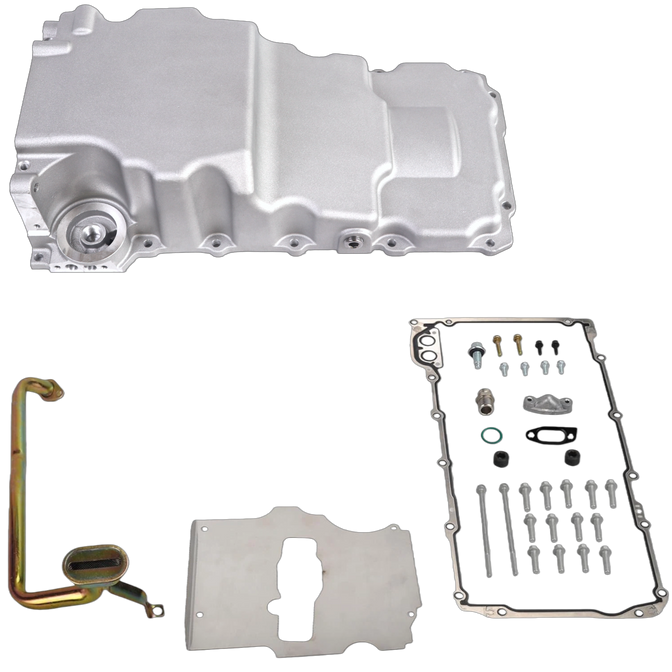

Package included: 1x Oil Pan

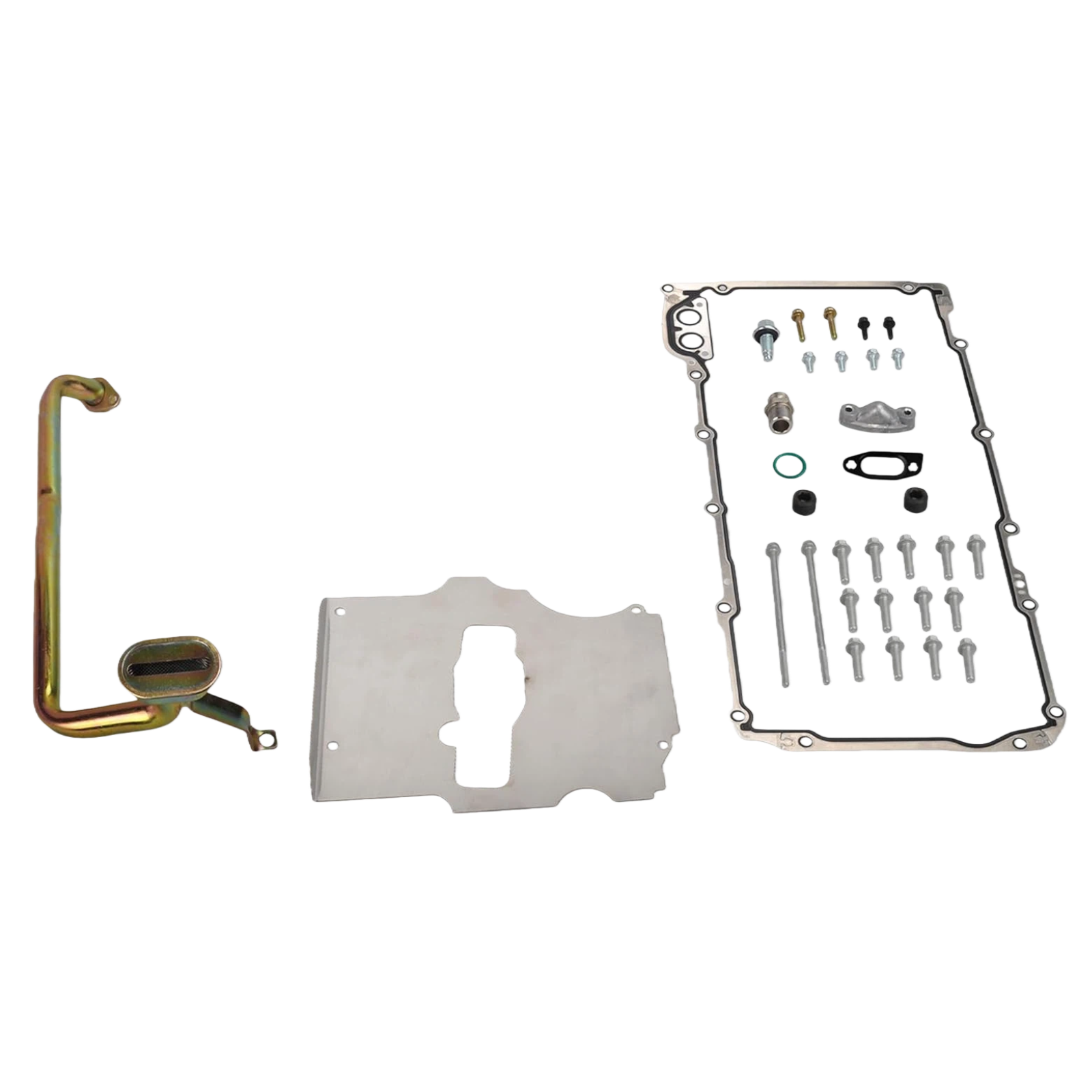

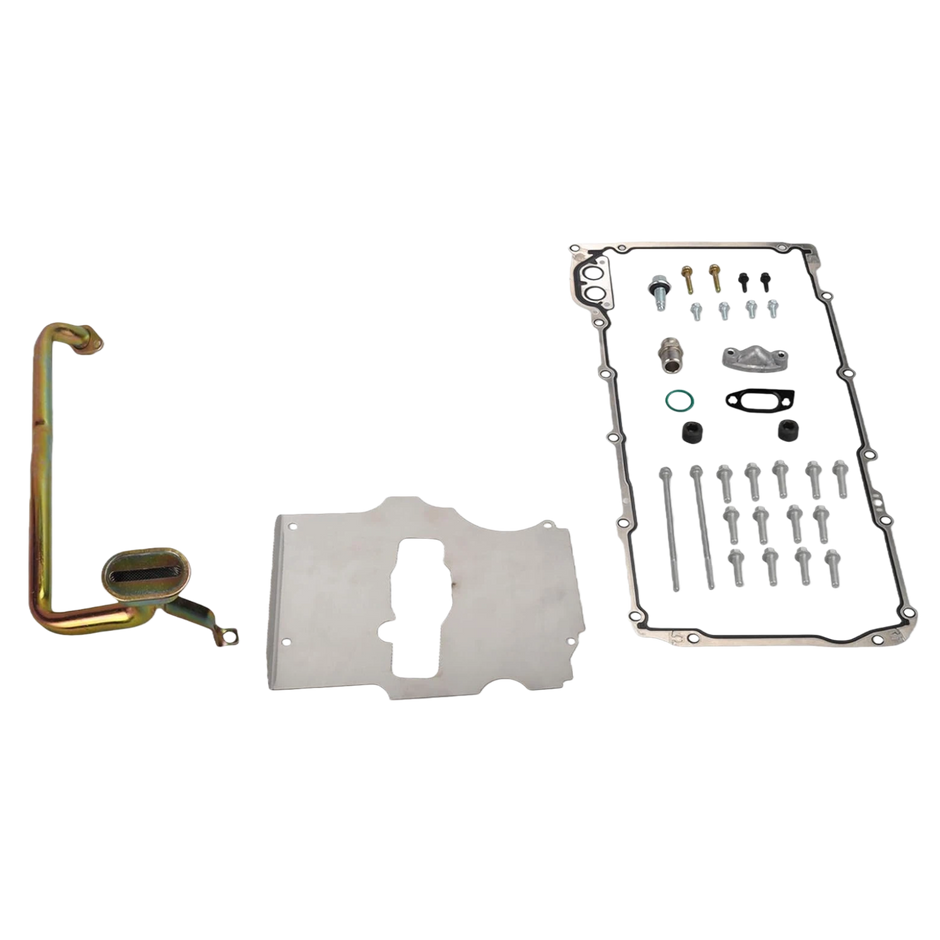

1x Oil Pan Gasket

1x Sump Baffle

1x Pick-Up Tube

1x Sump Plug

1x Oil Filter Stud

1x Oil Passage Cover

1x O-Ring

1x Screw Mounting Kit

Vehicle Information:

- Compatible with Low Profile cast aluminum oil pan Gen III/IV blocks 4.8 - 5.3 - 5.7 - 6.0 - 6.2 LS1 - LS2 - LS3.
